Safesight RC501 1/3 inch CCD Back Up Camera with 120 degrees viewing angle

Safesight RC501 1/3 inch CCD Back Up Camera with 120 degrees viewing angle

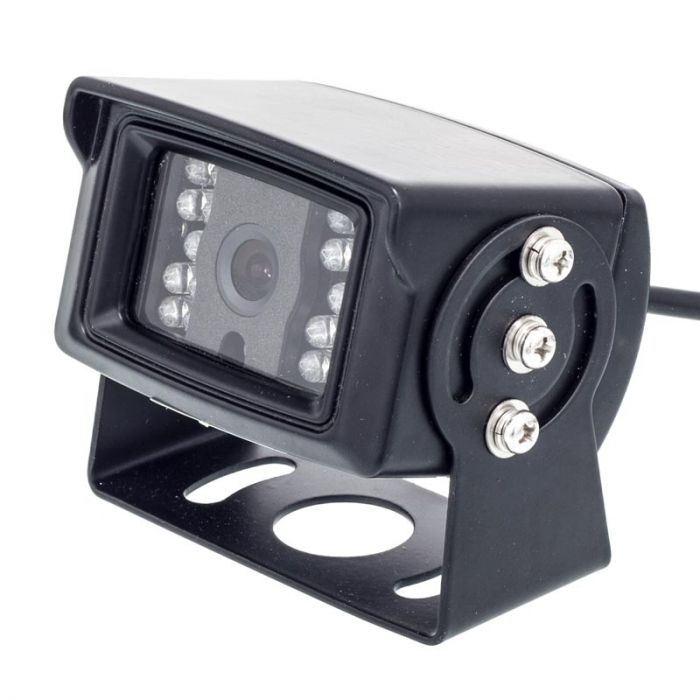

Safesight SC0104-RC501 reverse back up camera

More Views

Safesight
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight RC-501 Product Highlights

  • 1/3" CCD Image Sensor
  • 120 degrees Wide Angle Camera
  • Commercial grade weather proof housing
  • Selectable reverse image for rear view or front view
  • Blind Spot reduced
  • 18 IR LED's for 32 foot night vision
  • Built-in Microphone
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Back up camera, Mounting hardware, and Instruction manual

Safesight SC0104-RC501 Heavy Duty Commercial RV Back Up CCD Camera with 120 degrees Wide Angle Weatherproof Night Vision Camera
  • High Resolution Back Up Camera with infrared illumination
  • Selectable reverse image for rear view or front view - Rear mounted set screw changes mode
  • 1/3" CCD Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: N - 510x492; P - 500x582
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 18 LEDs for Night Vision 32 ft distance
  • Built-in Microphone
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 3-5/8" (W) x 2-5/8" (D) x 2-5/8" (H)
  • Waterproof Rating: Ip67
  • Shell Material Aluminum Alloy
  • Square style casing
  • 4 Pin Connector - RCA Adapters are sold separately
  • Available in White see part number SC0104-RC501MW

  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Bus, Van, Tractor, Trailer, Crane, Dirt Wagon, etc)

Technical Specifications

Manufacturer Safesight
Part Number RC-501
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/3 inch
Viewing Angle 120 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines No
Infrared Illumination Yes
Built in Microphone Yes
Trigger wire No
Auto on/off No
Connector Type 4 Pin Connector
NTSC/PAL NTSC and PAL
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
