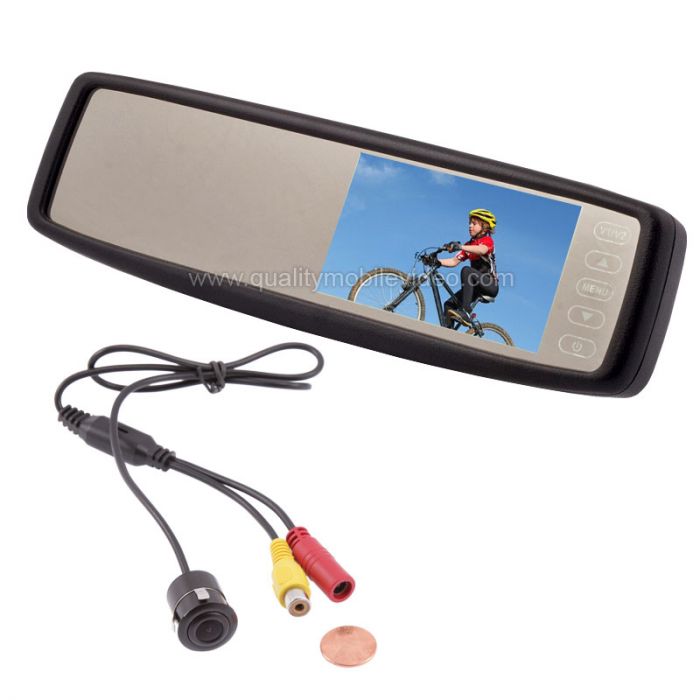

Safesight SC0302-SC4104 4.3" Rear view mirror back up monitor with micro flush mount reverse camera

Safesight SC0302-SC4104 4.3" Rear view mirror back up monitor with micro flush mount reverse camera

Safesight SC0302-SC4104 4.3" Rear view mirror back up monitor with micro flush mount reverse camera

More Views

Free Shipping on orders $99+

Overall Rating 4.5 (Based on 4 reviews)

Safesight SC0302-SC4104 Product Highlights

  • 4.3" Rearview monitor
  • Flush Mount Camera
  • CCD Lens Camera
  • Additional Video Input for additional Camera
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+


Unit includes: Reverse back up camera, 4.3" LCD Monitor, 18 foot RCA cable with power lead, Hole saw, DC Power cord

Safesight SC0302-SC4104 4.3" Rear view mirror back up monitor with micro flush mount reverse camera
  • 4.3 inch TFT LCD color monitor
  • Rear view mirror with special anti-glare film
  • Touch button controls
  • 2 Audio Video inputs for rear view camera and DVD player
  • Can connect to VCD, DVD, TV, GPS and compatible video device
  • Power memory function and low current consumption
  • Auto switching to rear view system when reversing for parking safety
  • Resolution: 480 (H) x RGB x 272 (W)
  • Brightness: 250 NIT
  • Dimensions: HWD 3 1/8" x 10 3/4" x 1 1/8"
  • Aspect Ratio: 16:9
  • Power Consumption: <2W
  • Power Supply: DC 12V
  • Video Input AV1: VCD/DVD
  • Video Input AV2: Back Up Camera
  • Signal: NTSC, PAL and Auto

Safesight SC0302 Micro flush mount reverse camera with drill bit
  • Flush mount camera - Micro sized
  • Camera dimensions: 3/4" (Diameter) x 15/16" (Length)
  • Drill bit for flush mounting in bumper included
  • 18 foot RCA cable with integrated power wire for continuous use, not only for backing up great for trailers
  • Parking Assist grid lines for better distance determination
  • CMD sensor for better picture quality
  • 648 x 488 resolution imager
  • IP-66 - IP67 waterproof rating
  • 170 degree viewing angle
  • Mirror image camera

Technical Specifications

Manufacturer Safesight
Part Number SC0302-SC4104
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 4:3 Normal Aspect Ratio
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Auto video sense trigger
Slide track on back No
Image Flip Function No
Built in Speakers No
Stand Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 2 Video Inputs
Wireless Remote Control No
Monitor Type Rearview mirror monitor
Mirror Mount Type Clip On
Back up camera type Flush Mount Key hole camera
Options No
Product Options No
Homelink No Homelink transmitter
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CMD
Camera diameter 2.8 mm
Viewing Angle 170 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Battery Powered No
Case included No
Connector Type RCA Cable
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Customer Reviews

Good product for the price
Review by
Install (5 star for easy)
It accomplishes its purpose well. Provides a wide angle picture. The mirror goes on top of your car rear view mirror, so if you have Northstar and other features in your original mirror you can still use them. This unit can also take video from a second camera, which is helpful if you need to monitor a toddler in the back seat.
Mine didn't come with a manual or any information about the color coded wires; I had to call for technical support. I haven't use it for more than a week so my rate on durability is based on a very short time.
(Posted on 8/30/2014)
good product
Review by
Install (5 star for easy)
I shopped around and I found this product to be a very good value for the price .stay away from wireless units install is easy but function is poor. Spend the time and do it right I am very satified. (Posted on 1/8/2013)
Documentation, Wire Issues
Review by
Install (5 star for easy)
Once installed, this product looks like it will work fine. But I had some difficulty installing it, due to two things. The documentation was about 10% useful and 90% useless. It was way too generic, with very little verbiage, to be of much help. It took three phone calls to technical support to direct me where I needed to go. They were quite helpful.
Also, the wire for the hookups to the camera and monitor is extremely flimsy. I had to be very careful that the connection stayed, due to the few strands of copper wire I had to connect to the proper places.
(Posted on 12/22/2012)
Very helpful
Review by
Install (5 star for easy)
This camera show everything behind the vehicle . It is a wide angle camera ,that means it shows objects that is immediately behind the vehicle along with objects that is at a wide angle close beside but not immediately behind the vehicle. If you are reversing between to cars it will show both car on your moniter . The thing is you have to remember that it is only design to help you when you are reversing , so when you are reversing you must use your side mirrors also. I have one install on my 2000 v8 4x4 toyota tundra truck and when i am reversing i have to use both side mirror. The camera shows objects farther than they are. My hint study camera the picture . (Posted on 11/23/2012)

Write Your Own Review

You're reviewing: Safesight SC0302-SC4104 4.3" Rear view mirror back up monitor with micro flush mount reverse camera

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Thomas, Monday, November 30, 2015


How does the rear view mirrow mount to the OEM mirrow in the vehicle? I have a 2010 Porsche Cayenne. Can you send me installation instructions?


  • Posted by Store Owner on Thursday, March 6, 2014

    This rearview mirror monitor is designed to attach to your existing rearview mirror. This more that likely will not work for your vehicle. The factory rearview mirror has a rounded shape on the left and right side and that makes mounting a monitor on top very difficult. You would also lose the auto dimming function which many people find very important. For a vehicle such as yours it is advisable that you use a small stand alone monitor or one of our popup monitors.

    Pop up monitors

Posted by Ron, Wednesday, June 26, 2013


Does this require a connection for reverse or does the unit do this automatically without requiring a wire? Does the mirror have day/night switching like a conventional car mirror for when the LCD is off while going forward?


  • Posted by Salvador Diaz on Wednesday, June 26, 2013

    The monitor on the mirror turns on when the vehicle is placed on reverse. It does this with a trigger wire, it will need to be hooked up for activation to occur. The mirror does not have day/night switching.
