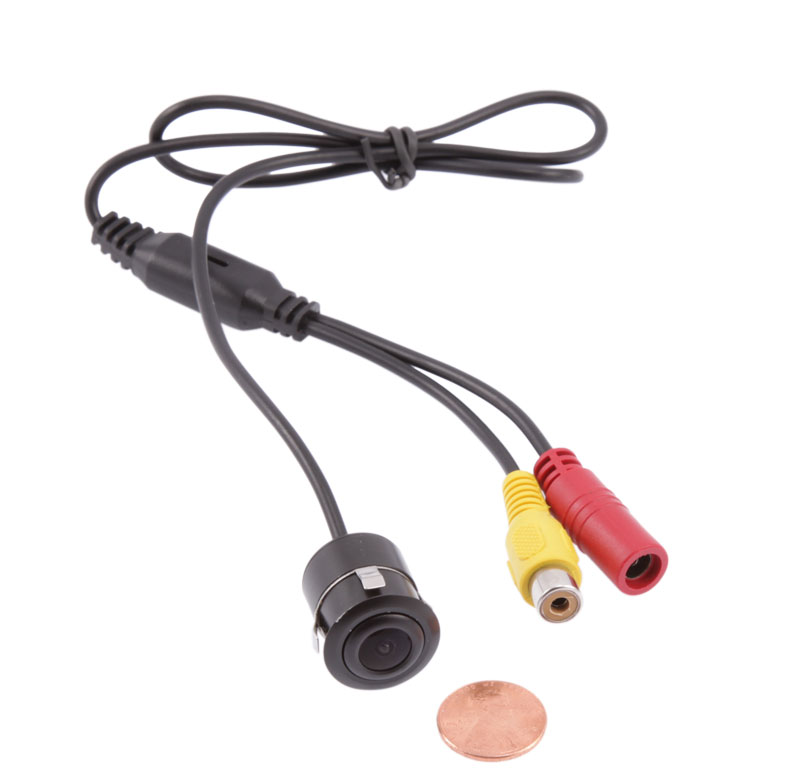

Safesight SC0302 Micro flush mount back up camera with drill bit

Rating:
97 % of 100
$53.99
In stock
SKU
SC0302

Key Features

  • Flush Mount Camera
  • CMD image sensor for better picture quality
  • Mini Size Camera
  • 170 Degree Wide Angle
  • Low Light Sensitive
  • Mirror image cut wire allows this camera to be used as a front camera or rear camera and have the proper orientation on screen
  • Parking grid line cut wire allows camera to display parking grid or for clear image
Unit includes: Reverse back up camera, 18 foot RCA cable with power lead, Hole saw, DC Power cord

Safesight SC0302 Micro flush mount reverse camera with drill bit:
    Safesight SC0302 Flush mount back up camera

    Safesight SC0302 Backup camera

    Add a back up camera to any vehicle, the SC0302 is the most popular low cost camera available. You can prevent a deadly back up accident for under $100 when you combine this with a monitor.

    Viewing angle diagram for backup cameras

    Viewing angle diagram for backup cameras

    It's easy to visualize how much you will be able to see directly behind you with this diagram.

    Features:
  • CMD image sensor for better picture quality
  • Micro flush mount camera - Micro sized
  • Drill bit is included for flush mounting in bumper included
  • Parking Assist grid lines for better distance determination
  • 18 foot RCA cable with integrated power wire for continuous use, not only for backing up great for trailers
  • Mirror image cut wire allows this camera to be used as a front camera or rear camera and have the proper orientation on screen
  • Parking grid line cut wire allows camera to display parking grid or for clear image
    Technical specifications
  • 648 x 488 CMD resolution imager
  • IP67 waterproof rating
  • 170 degree viewing angle
  • Camera dimensions: 3/4" (Diameter) x 15/16" (Length)
  • 18mm drill hole
    Inputs and Outputs
    • (1) - 12 volt power connector (Red) center pin positive
    • (1) - RCA connector Video output
    • (1) - Green looped wire (Reverse image control)
    • (1) - White looped wire (Parking grid line control)
More Information
Manufacturer Safesight
Part Number SC0302
Camera Sensor type CMOS
Back up camera type Flush Mount Key hole camera
Camera diameter 2.8 mm
Viewing Angle 170 degrees
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
