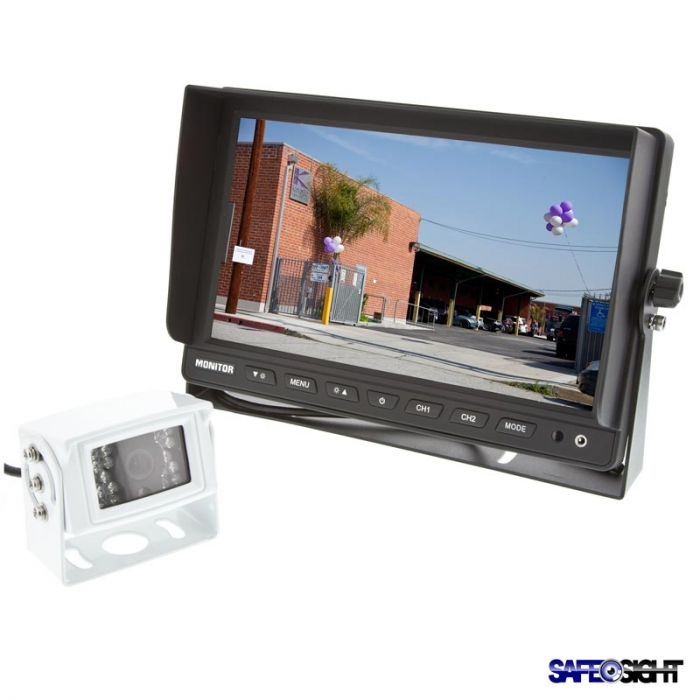

Safesight SC1004W Commercial 10 inch LCD Monitor and White 120 degrees Wide Angle Weatherproof Camera - Complete system

Safesight SC1004W Commercial 10 inch LCD Monitor and White 120 degrees Wide Angle Weatherproof Camera - Complete system

Safesight SC1004W Commercial Back up camera system - Monitor and Camera

More Views

Item sku:SC1004W
Safesight

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Safesight SC1004W Product Highlights

  • 10 inch TFT LCD High Definition display
  • 2 - RCA Video Inputs with single trigger, for use with multiple cameras and side cameras
  • White Night vision CCD camera
  • 1 - 3.5mm front mount audio video input
  • Optional trailer cable

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 10 inch LCD monitor, Wiring harness, Extension cable, Back up camera, Remote Control Instruction manual, and Connectors

Safesight Supply SC1004W Universal 10 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System with 120 degrees Wide Angle Weatherproof Camera
    Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc) where a small monitor is needed. This system can be used with up to three cameras and can be connected to the SC1201 trailer cable for use with trailers.

    SafeSight TOP-D1001 10" Back up camera Monitor features:
  • 10 inch TFT LCD High Definition display
  • Integrated Sun shade to prevent direct sun light glare and to enhance picture quality
  • Commercial grade metal U-Bracket with adjustable thumb screws for angle adjustment
  • Backlit blue buttons for easy controls
  • 2 - RCA Video Inputs with one triggered for input, for use with multiple cameras and side cameras
  • 1 - RCA Stereo audio inputs
  • Built in speakers
  • 1 - 3.5mm front mount audio video input
  • PAL/NTSC auto switching
  • Image flip function so that monitor can be mounted in many different ways and image can be rotated to proper viewing
  • Resolution: 1024 x 600
  • Brightness: 300 NIT
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing system that is designed for commercial applications
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees
  • Dimensions: 10-1/4" (W) x 7-1/2" (H) x 2-3/4" (D)

  • Safesight SC0104 Back up Camera features:
  • High Resolution Back Up Camera
  • 1/4" CCD Sharp Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: NTSC: 510 pixels x 492 pixels
  • 120 degrees Wide Angle Camera - for distortion free image
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 18 LEDs for Night Vision 45 ft distance
  • Built in microphone
  • Selectable between reverse image and normal image
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminum Alloy
  • Square style casing
  • 4 Pin Connector

  • Extension Cable
  • Around 60 ft or 18 meters length
  • 4 Pin lock connector

  • Optional Compatible Safesight Cameras: SC0102, SC0104

Technical Specifications

Manufacturer Safesight
Part Number SC1004W
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 1024 x 600
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back Yes
Image Flip Function Image rotate
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 3 Video Inputs
Wireless Remote Control Yes
Monitor Type No
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 4 Pin Connector
Wireless Transmission No, wired connection
Color White
Operation Voltage 12 - 24 volt
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No
