Safesight SC5002 Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System w 120 degrees Wide Angle Weatherproof Camera

Safesight SC5002 Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System w 120 degrees Wide Angle Weatherproof Camera

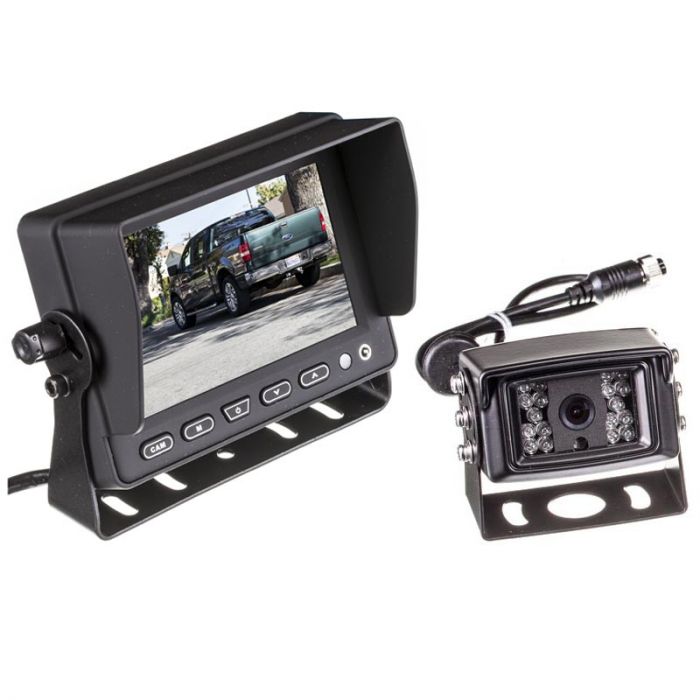

Safesight SC5002 Reverse back up camera system - Camera and monitor view

More Views

Item sku:SC5002V1
Safesight

Overall Rating 5 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Safesight SC5002 Product Highlights

  • 5 inch TFT LCD High Definition display
  • 3 - 4-pin Video Inputs with triggers for each input, for use with multiple cameras and side cameras
  • Night vision CCD camera
  • 1 - 3.5mm front mount audio video input
  • Optional trailer cable

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 5 inch LCD monitor, Wiring harness, Extension cable, Back up camera, Remote Control Instruction manual, and Connectors

Safesight Supply SC5002 Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System with 120 degrees Wide Angle Weatherproof Camera
    Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc) where a small monitor is needed. This system can be used with up to three cameras and can be connected to the SC1201 trailer cable for use with trailers.
    Safesight SC5102 5 inch LCD Monitor features:
  • 5 inch TFT LCD High Definition display
  • 3 - 4-pin Video Inputs with triggers for each input, for use with multiple cameras and side cameras
  • 1 - 3.5mm front mount audio video input
  • PAL/NTSC auto switching
  • Resolution: 800 x 480
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing system that is designed for commercial applications
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees
  • Dimensions: 5-5/8" (W) x 4-1/8" (H) x 1" (D)

  • Safesight SC0104 Back up Camera features:
  • High Resolution Back Up Camera
  • 1/4" CCD Sharp Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: NTSC: 510 pixels x 492 pixels
  • 120 degrees Wide Angle Camera - for distortion free image
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 18 LEDs for Night Vision 45 ft distance
  • Built in microphone
  • Selectable between reverse image and normal image
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminum Alloy
  • Square style casing
  • 4 Pin Connector

  • Extension Cable
  • Around 60 ft or 18 meters length
  • 4 Pin lock connector

  • Optional Compatible Safesight Cameras: SC0102, SC0104

Technical Specifications

Manufacturer Safesight
Part Number SC5002
LCD Screen Size 5 inch - 6 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 400 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 3 Video Inputs
Wireless Remote Control Yes
Monitor Type No
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 4 Pin Connector
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 24 volt
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Customer Reviews

Need the $300.00 gift to purchase second camera
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I'm assigned a 2009 Ford Expedition as a company vehicle, at some point purchased an auto parts store camera (should have shopped Quality Mobile Video from beginning)feared every time I put the vehicle in reverse. Any type of incident involving a backing up accident was nightmare of administrative paperwork, photos, loss for repairs,etc...Want to add second camera for a lower mounting to increase visibility.
Thank you Quality Mobile Video
(Posted on 8/14/2016)
Very nice back up system
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I am very impressed with this back up camera system. The monitor in this system is excellent and just the right size. The bracket makes it easy to mount virtually anywhere, we mounted it on the top of the dash.

The back up camera is very durable and was mounted on the top of the truck looking down. The infrared works really well and overall is an excellent camera.

The system was very easy to install and took about two hours.
(Posted on 6/28/2013)

Write Your Own Review

You're reviewing: Safesight SC5002 Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System w 120 degrees Wide Angle Weatherproof Camera

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Eric Oglesby, Tuesday, May 28, 2013

Question:

Can this system be used as a continuous rear monitor while driving or does only work when in reverse. looking for system since Van has no rear or side windows

Answers:

  • Posted by Salvador Diaz on Tuesday, May 28, 2013
    A:

    Yes, all you need is to give the unit full 12volt power at all times. This will allow you to turn on and off the system using the remote control or the buttons on the monitor.
