Safesight SC9002 Universal 7 inch LCD Monitor, Heavy Duty Weatherproof Back Up CCD Camera and SC1201 Trailer Cable 7 Pin for Commercial Vehicles

Safesight SC9002 Universal 7 inch LCD Monitor, Heavy Duty Weatherproof Back Up CCD Camera and SC1201 Trailer Cable 7 Pin for Commercial Vehicles

Safesight SC9002 Universal 7 inch LCD Monitor, Heavy Duty Weatherproof Back Up CCD Camera and SC1201 Trailer Cable 7 Pin for Commercial Vehicles

More Views

Item sku:50492
Safesight

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Safesight SC9002-SC1201 Product Highlights

  • 7 inch LCD monitor with two video inputs
  • Trailer cable with metal quick disconnects and fuel resistant cable
  • Night vision CCD camera
  • Optional second camera

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

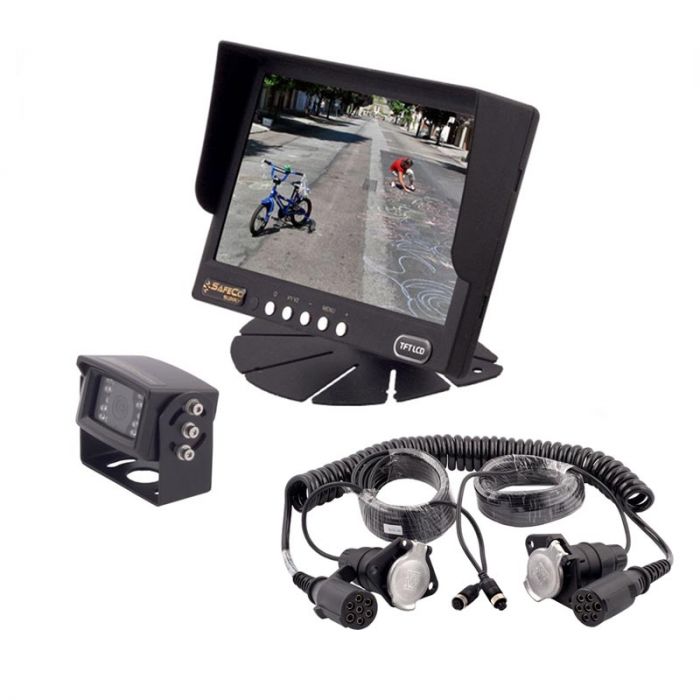

Unit includes: 7 inch LCD monitor, Wiring harness, Trailer cable, Extension cable, Back up camera, Remote Control Instruction manual, and Connectors

Safesight SC9002 Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System with 120 degrees Wide Angle Weatherproof Camera
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)

  • Monitor
  • 7 inch TFT LCD High Resolution
  • 2 Video Inputs
  • PAL/NTSC auto switching
  • Resolution: 480x234xRGB
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees

  • SC0104 Camera
  • High Resolution Back Up Camera
  • 1/4" CCD Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: N - 510x492; P - 500x582
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 10 LEDs for Night Vision 45 ft distance
  • Audio Function
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminium Alloy
  • Square style casing
  • 4 Pin Connector
  • 60 feet Extension Cable

  • Extension Cable
  • Around 60 ft or 18 meters length
  • 4 Pin lock connector

  • Optional Compatible Safeco Supply Cameras: SC0102, SC0104



Unit includes: cables

Safeco Supply SC1201 Trailer Cable 7 Pin Trailer Kit for Heavy Duty Trucks and Commercial Vehicles
  • Trailer Kits used for heavy duty and trailer combination
  • Working length of the coiled cable: 9 ft
  • Maximum length of the coiled cable: 13.5 ft
  • Extension cable to the monitor: 15 ft
  • Extension cable to the camera (waterproof plug): 60 ft
  • 7 Pin connector

Technical Specifications

Manufacturer Safesight
Part Number SC9002-SC1201
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 350 Nit
LCD back light type CCFL
Auto Dimming No
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back Yes
Image Flip Function Image rotate
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 2 Audio Video Inputs
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image Yes - Reverse Image
Camera Sensor type CCD
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 4 Pin Connector
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 24 volt
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No
