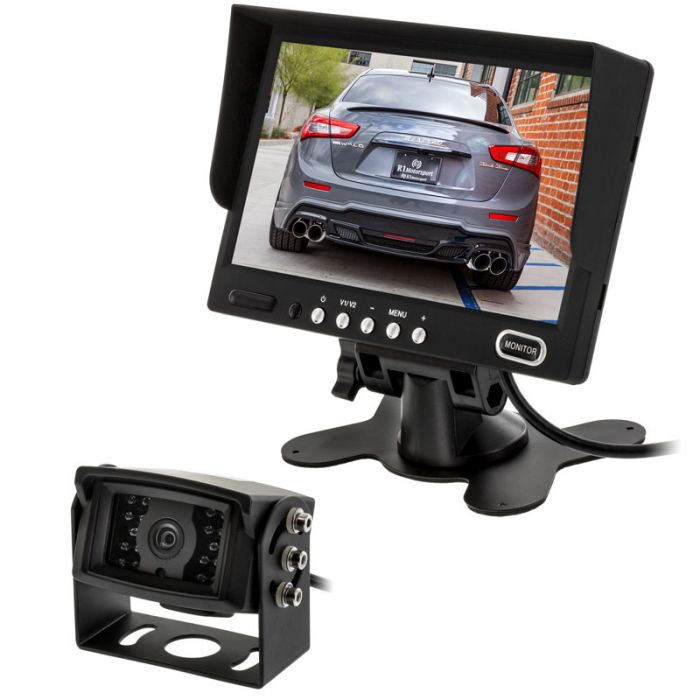

Safesight SC9002 Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System w 120 degrees Wide Angle Weatherproof Camera

Item sku:
47544
Manufacturer
Safesight
Condition
New
Availability:
In stock

Regular Price: $209.99

Sale Price: $159.99

SC9002 features:

  • Free Lifetime Technical Support
  • 30-Day Return Policy
  • Fast Same Day Shipping
  • Excellent Customer Service
Free shipping on all orders over $50!
  - Shipping options
OR

Ask a question (1)

Safesight SC9002 Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System w 120 degrees Wide Angle Weatherproof Camera

More SC9002 Views

Safesight SC9002 Product Highlights

  • 7 inch LCD monitor with two video inputs
  • 2 Video inputs
  • Night vision CCD camera
  • Optional second camera

Buy everything you need as a package and SAVE!

Details

Unit includes: 7 inch LCD monitor, Wiring harness, Extension cable, Back up camera, Remote Control Instruction manual, and Connectors

Safesight Supply SC9002 Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System with 120 degrees Wide Angle Weatherproof Camera
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)

  • Monitor
  • 7 inch TFT LCD High Resolution
  • 2 Video Inputs
  • PAL/NTSC auto switching
  • Resolution: 480x234xRGB
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees

  • SC0104 Camera
  • High Resolution Back Up Camera
  • 1/3" CCD Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: N - 510x492; P - 500x582
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 10 LEDs for Night Vision 45 ft distance
  • Audio Function
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminium Alloy
  • Square style casing
  • 4 Pin Connector
  • 60 feet Extension Cable

  • Extension Cable
  • Around 60 ft or 18 meters length
  • 4 Pin lock connector

  • Optional Compatible Safeco Supply Cameras: SC0102, SC0104

Additional Information

Manufacturer Safesight
Part Number SC9002
LCD Screen Size 7 inch - 8 inch
Screen Resolution 480 x 234
Widescreen Display No
LCD Screen Brightness No
LCD back light type No
Auto Dimming No
Trigger wire No
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers No
Stand Mount included No
Auto on/off No
Cigarette Lighter Cord Included No
Audio Video inputs 2 Video Inputs
Wireless Remote Control Yes
Monitor Type No
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image No
Camera Sensor type CCD
Camera diameter No
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Case included No
Connector Type 4 Pin Connector
Wireless Transmission No
Color Black
Operation Voltage No
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No

Customer Reviews

4 Item(s)

per page
good camera for the money Review by craftytodd
Price
Value
Quality
Durability
Installation difficulty
i installed this camera 2 years ago, the camera went bad so i bought a replacement camera.i also bought another system for a 2nd truck. the camera got moisture in it after a year of use. i took it apart dried it out and it got moisture in it again. i then sealed it around the lens and that worked until the camera quit.they work good but should last longer. (Posted on 1/22/14)
Good Product /Good Service Review by Safety Man
Installation difficulty
Price
Value
Quality
Durability
We have bought over 150 cameras for our commercial fleet. Service and communication is good and the product are reliable. (Posted on 4/18/13)
Happy Review by craftytodd
Quality
Value
Price
Installation difficulty
Durability
camera installed on e350 cutaway van w/ enclosed service body.i had trouble understanding the vague directions. once installed the picture is really good unless you have your foot on the brake then it goes fuzzy.the 7" monitor is to big for me I can't find a good spot to put it that does'nt block the windshield to much.they also want you to put screws in the dash to hold it. (Posted on 1/12/12)
A Must Have Review by Deejay
Quality
Value
Price
Installation difficulty
Durability
Not installed yet but test hookup shows me that it will be an ideal rear sight camera for my RV trailer. One suggestion---shorter cable options would be a bonus. (Posted on 3/15/11)

4 Item(s)

per page

Write Your Own Review

You're reviewing: Safesight SC9002 Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System w 120 degrees Wide Angle Weatherproof Camera

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Installation difficulty
Price
Value
Quality
Durability
    Pros Cons
    Enter your Pros, separated by comma
    Enter your Cons, separated by comma

Products Questions:

Posted by scott on Friday, March 7, 2014

Question:

The wiring harness has red, black and green wires. Red to power, Black to ground, Green ????

Answers:

  • Posted by Salvador Diaz on Friday, March 7, 2014

    Green is the trigger wire, this will trigger the system to turn on. Triggered 12Volt power is needed,
