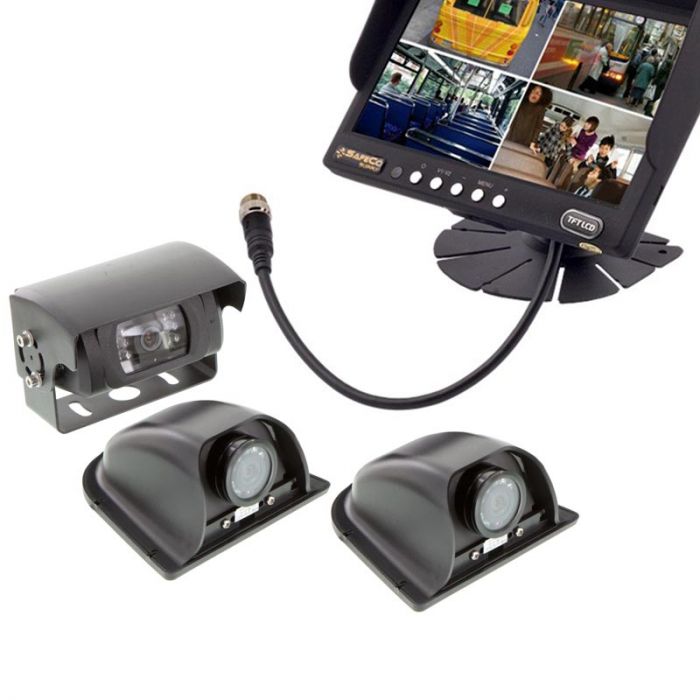

Safesight SC9002Q3 Universal 7 inch Quad Control LCD Monitor and RV Back Up Color CCD Camera System with 1 pc SC0104 and 2 pcs SC0102 Cameras

Safesight SC9002Q3 Universal 7 inch Quad Control LCD Monitor and RV Back Up Color CCD Camera System with 1 pc SC0104 and 2 pcs SC0102 Cameras

Safesight SC9002Q3 Universal 7 inch Quad Control LCD Monitor and RV Back Up Color CCD Camera System with 1 pc SC0104 and 2 pcs SC0102 Cameras

More Views

Item sku:47558
Safesight

Overall Rating 3 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Safesight SC9002Q3 Product Highlights

  • 7 inch Quad screen LCD monitor
  • 2-Side cameras with IR night vision
  • 1-Back camera with IR night vision
  • Easy to add trailer camera
  • Sturdy mounting bracket
  • Includes all necessary cables and components

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 7 inch quad LCD monitor, Main wiring harness, Mounting bracket, 3-Extension cables, Remote control, 2-Side cameras, 1-Back camera, and Instruction manual

Safesight SC9002Q3 Universal 7 inch Quad Control LCD Monitor and RV Back Up Color CCD Camera System with 1 pc SC0104 and 2 pcs SC0102 Rear View Cameras
  • SC9002Q: Comes with (1) pc SC0104 Camera
  • SC9002Q3: Comes with (1) pc SC0104 and (2) pcs SC0102 Cameras
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)

  • Monitor Details:
  • 7 inch TFT LCD High Resolution
  • 2 Video Inputs
  • PAL/NTSC auto switching
  • Resolution: 480x234xRGB
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees

  • Monitor display modes:
  • Built In Quad Screen Control Module
  • Single, Split and Quad View Modes

  • SC0104 Camera Details:
  • Heavy Duty Commercial RV Back Up CCD Camera with 120 degrees Wide Angle Weatherproof Night Vision Camera
  • High Resolution Back Up Camera
  • 1/3" CCD Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: N - 510x492; P - 500x582
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 10 LEDs for Night Vision 45 ft distance
  • Audio Function
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminium Alloy
  • Square style casing
  • 4 Pin Connector

  • SC0102 Camera Details:
  • High Resolution Back Up Camera
  • 1/3" Sharp Color CCD Image Sensor
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Automatic IR Infrared LED Night Vision
  • Weatherproof, Waterproof, Shockproof and High Temperature Resistance
  • Side Mount Application
  • Angle Adjustment Rings
  • 4 Pin Connector

  • SC1124 Cable Details:
  • 60 feet Extension Cable
  • 4 Pin Connector

Technical Specifications

Manufacturer Safesight
Part Number SC9002Q3
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 350 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back Yes
Image Flip Function Image rotate
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 2 Video Inputs
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter No
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 4 Pin Connector
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 24 volt
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No

Customer Reviews

Works, but you have to fiddle with it.
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Finally works after a LOT of fiddling. The documentation is inadequate which made the installation process and getting the equipment to operate very difficult.

On the positive side, I connected a cheap plastic license plate backup camera I got on Ebay and mounted it on the front of my motorhome as a 4th camera. works great!
(Posted on 4/19/2014)

Write Your Own Review

You're reviewing: Safesight SC9002Q3 Universal 7 inch Quad Control LCD Monitor and RV Back Up Color CCD Camera System with 1 pc SC0104 and 2 pcs SC0102 Cameras

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by bubba on Tuesday, April 15, 2014

Question:

I have one of these backup monitor kits and I can’t get the buttons on the monitor to work. Is there a trick to this?

Answers:

  • Posted by Salvador Diaz on Tuesday, April 15, 2014

    There is no trick on working/ operating the monitor. Please give us a call at 800-363-0096 for further help.

    Thanks
