Safesight SC9101 Universal 5 inch LCD Monitor 4-Way Video Input and and Heavy Duty Commercial RV Back Up CCD Weatherproof Camera System

Safesight SC9101 Universal 5 inch LCD Monitor 4-Way Video Input and and Heavy Duty Commercial RV Back Up CCD Weatherproof Camera System

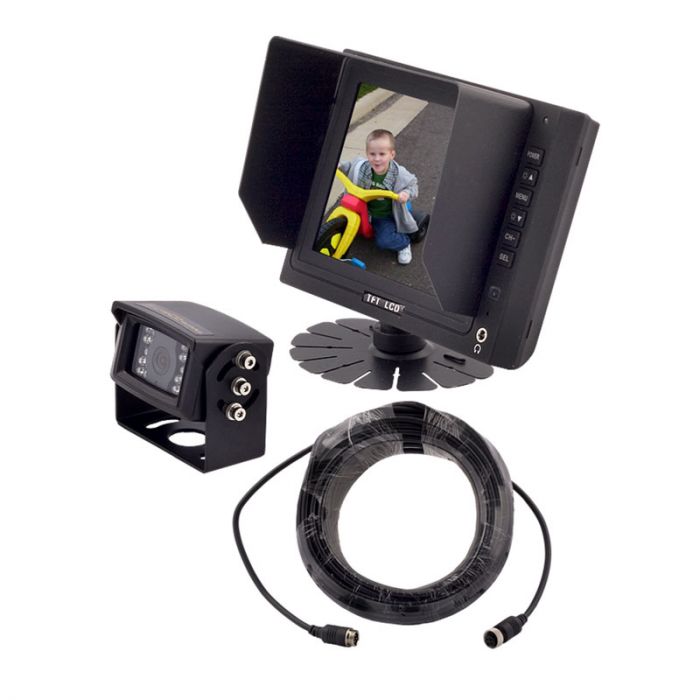

Safesight SC9101 5 inch Commercial reverse back up camera system - Kit contents

More Views

Item sku:51100
Safesight

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Safesight SC9101 Product Highlights

  • 5 inch LCD Monitor (4:3 aspect ratio)
  • Commercial grade system
  • Surface mount reverse image night vision CCD camera
  • 4 video inputs for use with multiple cameras
  • Includes all necessary components for installation

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 5 inch LCD monitor, LCD mounting bracket, Main wiring harness, Camera extension cable, Back up camera, Remote control, and Instruction manual

Safesight SC9101 Universal 5 inch LCD Monitor 4-Way Video Input and and Heavy Duty Commercial RV Back Up CCD Weatherproof Camera System
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Bus, Van, Tractor, Trailer, Crane, Dirt Wagon, etc)

  • Safesight 5 inch LCD Monitor details:
  • 5 inch LCD Monitor (4:3)
  • Contrast: 400:1
  • Brightness: 400 cd/m2
  • Viewing Angles (Left/Right/up/Down): 65/65/45/65 degrees
  • Resolution: 640x480 RGB Pixels
  • System: PAL, NTSC
  • Power Supply: DC 12V ~ 32V
  • Power Consumption: 5W
  • Visible Area: 103x77 mm
  • Operating Temperature: -10 ~ +40 degrees Celsius
  • Storage Temperature: -25 ~ +80 degrees Celsius
  • Mode: Keystroke and Remote Control
  • Dimensions: 146 L x 110 W x 26 D mm
  • 4-Way Video Input
  • 1-Way Video Output
  • V1, V2, V3 and V4 - switchover and blue screen when no signal
  • 4-Way Audio Input
  • 4 Trigger wires supply for cameras. Once a trigger wire is activated, image automatically switches to the relative camera. Without signal, the working condition will turn to the original surface.

  • Safesight SC0104 back up camera details:
  • High Resolution Back Up Camera
  • 1/3" CCD Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: N - 510x492; P - 500x582
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 10 LEDs for Night Vision 45 ft distance
  • Audio Function
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminium Alloy
  • Square style casing
  • 4 Pin Connector
  • 60 feet Extension Cable

Technical Specifications

Manufacturer Safesight
Part Number SC9101
LCD Screen Size 5 inch - 6 inch
Native Screen Resolution 640 x 480
Widescreen Display 4:3 Normal Aspect Ratio
LCD Screen Brightness 375 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back Yes
Image Flip Function Image rotate
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 1 Audio Video Input
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter No
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 4 Pin Connector
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 24 volt
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No

Customer Reviews

Excellent
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
This camera and receiver set is excellent in every way and a real pleasure to use. The picture is true and instantaneous upon activation. The installation was tedious as I wanted everything concealed, but that's my problem - not a problem of the equipment. Shipping was prompt and just as advertised. I recommend Quality Mobile Video and their products and I'd definitely do business with them again. (Posted on 6/28/2013)

Write Your Own Review

You're reviewing: Safesight SC9101 Universal 5 inch LCD Monitor 4-Way Video Input and and Heavy Duty Commercial RV Back Up CCD Weatherproof Camera System

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Mel Hinshaw on Tuesday, September 24, 2013

Question:

Can this system accept multiple cameras, side's and rear

Answers:

  • Posted by Salvador Diaz on Tuesday, September 24, 2013

    Yes it can, it has additional Video Inputs for additional cameras. Total of 4 Video Inputs
