DISCONTINUED - Safesight SC9201 Universal 3.5 inch LCD Monitor and Rear View Back Up Reverse Parking License Plate Mount Camera with Wireless Transmitter

DISCONTINUED - Safesight SC9201 Universal 3.5 inch LCD Monitor and Rear View Back Up Reverse Parking License Plate Mount Camera with Wireless Transmitter

DISCONTINUED - Safesight SC9201 Universal 3.5 inch LCD Monitor and Rear View Back Up Reverse Parking License Plate Mount Camera with Wireless Transmitter

More Views

Item sku:51068
Safesight

Overall Rating 3 (Based on 3 reviews)

Would you recommend this to a friend?

Write a review

Safesight SC9201 Product Highlights

Safesight SC9201 Universal 3.5 inch LCD Monitor and Rear View Back Up Reverse Parking License Plate Mount Camera with Wireless Transmitter

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

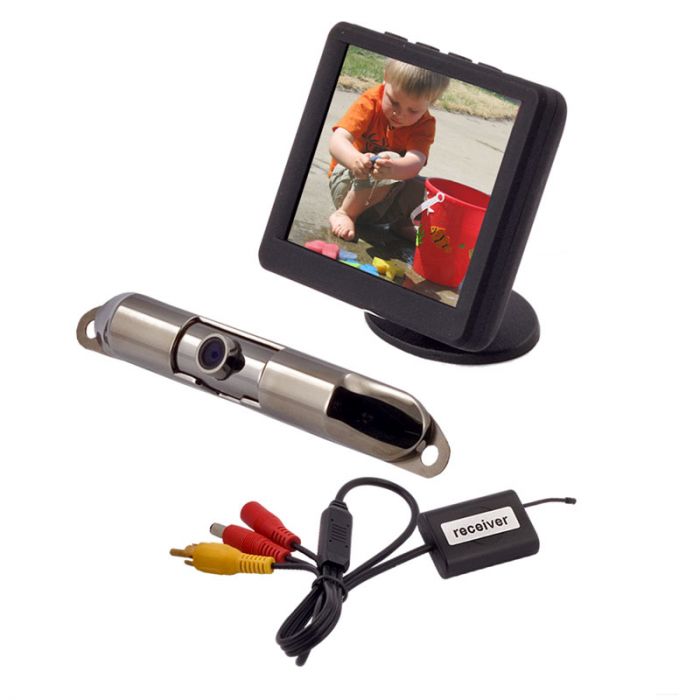

Unit includes: Wireless Receiver and Connectors

Safesight SC9201 Universal 3.5 inch LCD Monitor and Rear View Back Up Reverse Parking License Plate Mount Camera with Wireless Transmitter
  • 3.5 inch TFT LCD Monitor
  • Wireless receiver
  • PAL and NTSC auto
  • Menu buttons
  • Parking guide line selectable button
  • Auto switch on/off when reverse gear is engaged
  • 1 video input
  • Power DC 10.5 ~ 15V (12V normal)
  • Current consumption <= 190 mA
  • Resolution 960x240 RGB

  • Rear view license plate mount camera
  • Built-in wireless transmitter
  • Wide angle view 170 degrees
  • High resolution 480 TV lines
  • Extra low illumination 0.3 Lux for night vision
  • Anti-rust all metal housing
  • Weatherproof camera housing
  • Power supply DC 10.5 ~ 15V (12V normal)
  • Operating temperature: -20 ~ 60 degrees Celsius, RH 95% max
  • Current consumption 90 mA (max)
  • Image device 1/4 inch color, VC0702
  • Effective pixels: PAL (720x576); NTSC (720x480)
  • S/N ratio: more than 48 db (AGC off)
  • Video output: RCA connector 1.0vp-p 75ohm
  • Auto white balance, AGC, BLC
  • Wireless transmission range: 30 meters open space

Technical Specifications

Manufacturer Safesight
Part Number SC9201
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 960x240
Widescreen Display No
LCD Screen Brightness No
LCD back light type No
Auto Dimming No
Trigger wire No
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers No
Stand Mount included No
Auto on/off No
Cigarette Lighter Cord Included No
Audio Video inputs 1 Video Input
Wireless Remote Control No
Monitor Type No
Mirror Mount Type No
Back up camera type License Plate Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image Yes - Reverse Image
Camera Sensor type No
Camera diameter No
Viewing Angle 170 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection Waterproof
Battery Powered No
Case included No
Connector Type RCA Cable
Wireless Transmission Yes, wireless
Color No
Operation Voltage No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Customer Reviews

poor
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Took more than a short time to install. Never did get a steady, clear picture. Never could get the monitor to stick to my dash or console. Never did get a response to any of my e-mails. Once I did get someone on the phone requesting a RA#, the young man was helpful. This camara system needs a lot of work. (Posted on 5/6/2013)
Dont bother
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Bought this system thinking it would be less of a headache running wiring all over my truck but what I ended up with was a a camera that doesn't even work, don't waste your time with this system. (Posted on 6/21/2012)
Great Wiring Harness
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
This is the best wireless back up camera system we have tested to date. This system performs considerably better than lower priced systems but is susceptible to occasional interference.

This item has an effective range of 40ft with limited interference. The system is capable of longer distances but is more prone to interference with increased spacing.

The camera is easy to mount and easy to wire, just provide power.

The monitor is equally easy to wire with the supplied cigarette lighter plug.
(Posted on 5/25/2011)
