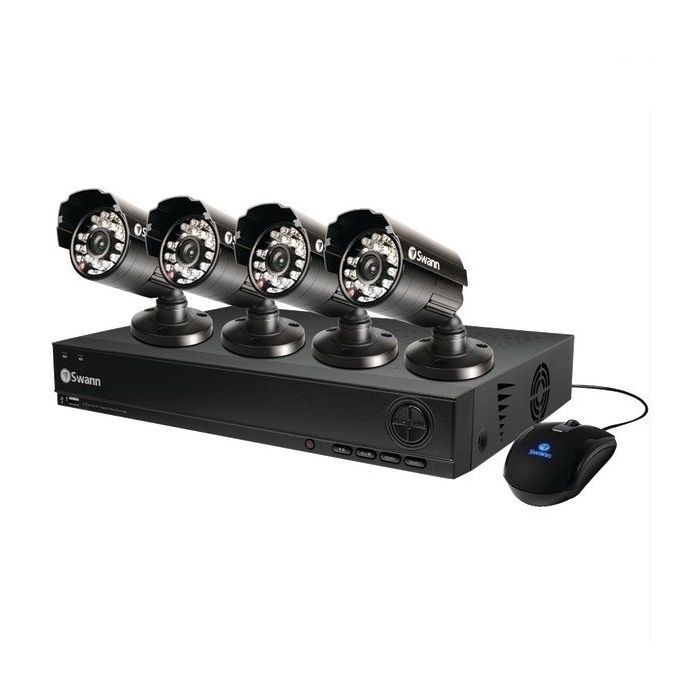

Swann SWDVK-810004-US DVR8-1000 8-Channel 500GB HDD DVR with Four Pro-530 Cameras

Swann SWDVK-810004-US DVR8-1000 8-Channel 500GB HDD DVR with Four Pro-530 Cameras

Swann SWDVK-810004-US DVR8-1000 8-Channel 500GB HDD DVR with Four Pro-530 Cameras-main

More Views

Swann
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Swann SWDVK-810004-US Product Highlights

  • The DVR system comes complete with four high-resolution cameras, offering 600TV lines of resolution with a 1/3" Swann TruColor sensor and has powerful IR night vision and includes 60 ft coaxial cable per camera.
  • The system is expandable with provision to connect up to 4 more cameras for a full 8-channel security system
  • The DVR features a 500 GB HDD and can record continuously from 8 channels for more than 15 days, which can be stretched even longer with motion detection active.
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

The Unit Includes: DVR with Installed HDD, 4 Cameras, HDMI Cable, four 60' Pre-Terminated Video/Power Cables, two 4-into-1 Camera Power Adapters, 110 V AC/12V DC DVR Power Adapter, Remote Control, USB Mouse, Ethernet Cable, Camera Mounting Hardware, 4 Theft-Deterrent Stickers, Limited 1-Year Warranty

Swann SWDVK-810004-US DVR8-1000 8-Channel 500GB HDD DVR with Four Pro-530 Cameras

DVR Video features:
  • 8 Channels with installed 500GB HDD
  • Up to 1920x1080 Display Resolution
  • Manual, Motion, and Scheduled Recording
  • Multiple Users and Access Levels
  • Remote Internet, Android/iOS App Access
  • Four Indoor/Outdoor, Day/Night Cameras
  • 600 TV Lines, 728x488 Resolution
  • 24 IR LEDs with 65' Night Vision Range
  • IP67 Rated, Water and Dustproof
  • NTSC or PAL Video Signal Type
  • Display Resolutions: 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080
  • Display Frame Rate: 30 FPS per channel (NTSC), 25 FPS per channel ( PAL)

DVR Internet features:
  • LAN Connection
  • One RJ45 port Network Interface
  • TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP Network Protocols
  • Remote Operation with IE, MyDVR, CMS, SwannView
  • DNS Support
  • UPnP Support

DVR Video inputs and outputs:
  • 4 x Channels BNC Video Inputs
  • VGA, HDMI Video Outputs
  • Camera features:
  • 1/3" CMOS Swann TruColor sensor
  • 4.8mm lens with 58° viewing angle
  • 600 TVL, 728x488 resolution
  • 24 IR LEDs with 65' night vision range
  • Includes 60' of pre-terminated video/power cable for installation
  • IP67 rated housing is water and dustproof

Technical Specifications

Manufacturer Swann
Part Number SWDVK-810004-US
Max DVR Channels 8 channel
DVR HDD Capacity 2 TB
Length 60 Feet
Wireless Transmission No, wired connection
Infrared Illumination Yes
Built in Microphone No
Included cameras 4 cameras
Imager Manufacturer No
Camera Sensor type CMOS
Sensor Size 1/3 inch
Camera diameter No
Lines of Resolution 600
Minimum Illumination 0 Lux (IR on)
Color Camera Yes
Viewing Angle 60 degrees
IR LED Count 24
Infra-Red Wavelength No
Zoom No
Gain Control No
Dynamic Range (dB) No
Focus Auto
AGC (Automatic Gain Control) No
IR range (ft) No
OSD (On Screen Display) No
NTSC/PAL NTSC and PAL
Lens Included No
Lens Type Fixed focal length
Electronic Shutter Auto
Relative Aperture (F-stop) No
Focal Length (mm) 4.8mm
Color Black
Housing material Metal
Vandal-proof No
Outdoor Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Ac Adapter included Yes
Operation Voltage No
Power consumption Amps No
Connector Type No
Signal type IP-Based
Warranty 1 Year
UPC Code 815849014589
