Swann SWDVK-832004S-US DVR8-3200 8 Channel 960H Digital Video Recorder and 4 x PRO-642 Cameras

Swann SWDVK-832004S-US DVR8-3200 8 Channel 960H Digital Video Recorder and 4 x PRO-642 Cameras

Swann SWDVK-832004S-US DVR8-3200 8 Channel 960H Digital Video Recorder and 4 x PRO-642 Cameras-left side

More Views

Item sku:SWDVK-832004S-US
Swann

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Swann SWDVK-832004S-US Product Highlights

  • The set includes eight high-resolution cameras with 700 TV lines of resolution offered by CCD sensor and features IR night vision.
  • The DVR system is expandable with provisions for up to four more cameras, constituting a full 8-channel security camera system.
  • It is capable of recording continuously from 8 channels for more than 30 days continuously onto a 1TB hard drive and offers even longer duration with motion detection active.

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

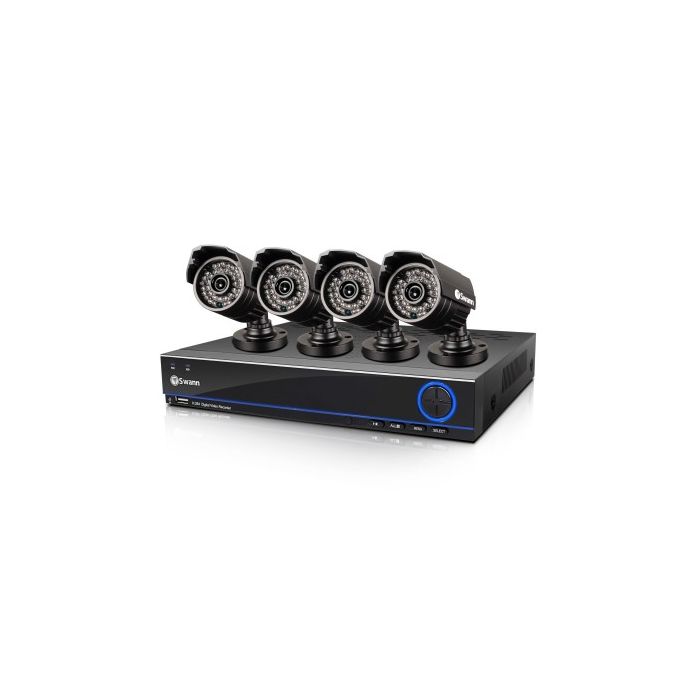

The Unit Includes: DVR with Installed HDD, Four Cameras, HDMI Cable, DC Video Cable, Four 60' BNC Cables, Camera Power Adapter, BNC to RCA Adapter, 110 V AC/12V DC DVR Power Adapter, Remote Control, USB Mouse, Ethernet Cable, Camera Mounting Hardware, 4 Security Notification Stickers, Limited 1-Year Warranty

Swann SWDVK-832004S-US DVR8-3200 8 Channel 960H Digital Video Recorder and 4 x PRO-642 Cameras

DVR Video features:

  • 8 Channels with Installed 1TB HDD
  • Up to 1920x1080 Display Resolution
  • 728x488 Resolution at 700 TVL
  • Manual, Motion, and Scheduled Recording
  • Multiple Users and Access Levels
  • Remote Internet, Android/iOS App Access
  • Four Indoor/Outdoor, Day/Night Cameras
  • 36 IR LEDs with 82' Night Vision Range
  • Four 60' Terminated Video/Power Cables
  • IP67 Rated, Water and Dustproof
  • NTSC or PAL Video Signal Type
  • Display Frame Rate: 30 FPS per channel (NTSC), 25 FPS per channel ( PAL)
  • Display Resolutions: 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080


DVR Video inputs and outputs:

  • 8 x Channels BNC Video Inputs
  • VGA and HDMI Video Outputs


Camera features:

  • CCD sensor
  • 4.8mm lens with 57° viewing angle
  • 700 TVL, 728x488 resolution
  • 36 IR LEDs with 82' night vision range
  • Includes 60' of pre-terminated video/power cable for installation
  • IP67 rated housing is water and dustproof


DVR Internet features:

  • LAN Connection
  • One RJ45 port Network Interface
  • SwannLink Peer to Peer Network Connection
  • Remote Operation with IE, MyDVR, CMS, SwannView
  • DNS Support

Technical Specifications

Manufacturer Swann
Part Number SWDVK-832004S-US
Max DVR Channels 8 channel
DVR HDD Capacity 1 TB
Cable length 60 Feet
Wireless Transmission No, wired connection
Infrared Illumination Yes
Built in Microphone No
Included cameras 4 cameras
Imager Manufacturer No
Camera Sensor type CCD
Sensor Size No
Camera diameter No
Lines of Resolution 700
Minimum Illumination 0.1 lux (IR Off), 0 lux (IR On)
Color Camera Yes
Viewing Angle 60 degrees
IR LED Count 36
Infra-Red Wavelength 850nm
Zoom No
Gain Control Yes
Dynamic Range (dB) 50
Focus Auto
AGC (Automatic Gain Control) Built In
IR range (ft) No
OSD (On Screen Display) No
NTSC/PAL NTSC and PAL
Lens Included No
Lens Type Manual Zoom
Electronic Shutter Auto
Relative Aperture (F-stop) No
Focal Length (mm) 4.8 mm
Color Black
Housing material Metal
Vandal-proof No
Outdoor Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Ac Adapter included No
Operation Voltage 12 - 15 volt
Power consumption Amps DC (mA) No
Connector Type BNC Connector
Signal type No
Warranty 1 Year
UPC Code 815849018754
