Swann SWNVK-470852-US 720p NVR with 2 NHD-806 Cameras - 4 channel NVR

Swann SWNVK-470852-US 720p NVR with 2 NHD-806 Cameras - 4 channel NVR

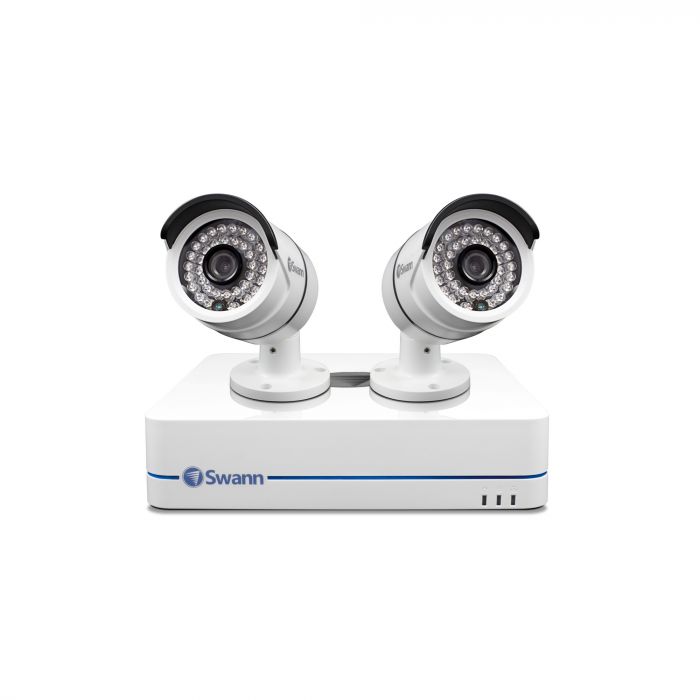

Swann SWNVK-470852-US 720p Network Video Recorder with 2 cameras - Main

More Views

Item sku:SWNVK-470852-US
Swann

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Swann SWNVK-470852-US Product Highlights

  • 4 Channel 720p Network Video Recorder
  • SwannLink ‘Peer-to-Peer’
  • RJ45 Network Cable Connection
  • 1TB Hard Drive
  • Includes 2 Cameras
  • View Remotely on your Smartphone or Tablet
  • Cameras have 65° Viewing Angle
  • 100 foot CAT5E Ethernet cables included

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: 4 Channel NVR4-7085 DVR recorder, 2 - NHD-806 cameras, 2 - 100 foot CAT5E Ethernet cables, HDMI Cable, USB Mouse, 6 foot Cat5E Ethernet Cable, Power adapter & , Mounting Screws & Plugs, 4 - Theft Deterrent Stickers, and Operating Instructions

Swann’s latest network video security system with 720p high definition live viewing & playback. The system records in real-time with 25 / 30frames per second per channel. Get state-of-the-art digital imaging technology that offers 10 times the picture sharpness of traditional security systems including analog CIF.

The SWNNVK-470852 Includes 4 x 1000 TV Lines cameras capable of generating crystal clear 1280 x 720 pixels (1 Megapixel) video with IR cut filters for extra-powerful night vision to 82ft / 25m and an all weather resistant rating of IP66 for indoor & outdoor use.

You can set & forget by recording continuously from 4 channels for 48+ days onto a 1TB hard drive or even longer with motion detection & have peace of mind by easily locating incident video, then transfer to external storage via USB or network

While away you can have the security in the palm of your hand with live viewing on your Smartphone or tablet including iOS (iPhone, iPad) & Android devices using the free SwannView app with email notifications if there is activity

You can also view the video live in 720p HD on your HDTV via HDMI connection to your LCD screen

Professional surveillance system gives you peace of mind by being able to see the detail you need from longer distances including license plates, faces, clothing colors & more, all in full HD

Incredibly easy installation for the do-it-yourselfer as cameras are powered by the NVR & connect via single CAT5E Ethernet cables (included). Connect the NVR to the internet in minutes using the setup software wizard.



Swann SWNVK-470852-US 720p NVR with 2 NHD-806 Cameras - 4 channel NVR features:

NVR Video features:
  • 4-channel IP addressable DVR with H.264 video compression
  • NTSC or PAL video format option
  • HDMI video ouput
  • VGA output
  • Output display resolutions: 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
  • Display frame rate: NTSC: 30fps per channel / PAL: 25fps per channel
  • H.264 Compression format
  • Recording Resolution: 720p (1280 x 720)
  • NTSC Recording Frame Rate: 120 Frames total, 30 Frames per channel
  • PAL Recording Frame Rate: 100 Frames total, 25 Frames per channel
  • Recording modes: Motion detection, Schedule, and Manual
  • Sata2 HDD interface
  • 1 TB HDD installed capacity with 4TB upgradable


NVR Internet features:
  • Ethernet connection with 10/100Mbps port
  • SwannLink ‘Peer-to-Peer’ network connection

DVR Video inputs and outputs:
  • DC power jack
  • Operating voltage: 48Vdc
  • 2 - Rear USB jack
  • RJ45 Network Ethernet jack
  • VGA output
  • HDMI output
  • 4 - RJ45 100Mbps PoE inputs


NHD-806 Camera features:
  • Includes: 2 - NHD-806 CMOS day night cameras
  • 1 Megapixel resolution
  • Full 1280 x 720 pixels
  • 85ft Night-vision distance
  • RJ45 Network output
  • 30 frames per sec
  • Sturdy weather-resistant IP66 rated camera housing for use outdoors or indoors
  • 65 degree Viewing Angle
  • Backlight Compensation
  • IR Cut Filters
  • Operating Temperature: -20°C ~ 60°C / -4°F ~ 140°F

Technical Specifications

Manufacturer Swann
Part Number SWNVK-470852-US
Max DVR Channels 4 channel
DVR HDD Capacity 1 TB
Cable length 100 Feet
Wireless Transmission No, wired connection
Infrared Illumination Yes
Built in Microphone No
Included cameras 2 cameras
Imager Manufacturer No
Camera Sensor type CMOS
Sensor Size 1/4 inch
Camera diameter No
Lines of Resolution 720p
Minimum Illumination 1lux@F1.4, 0 lux with IR
Color Camera Yes
Viewing Angle 70 degrees
IR LED Count 48
Infra-Red Wavelength 850nm
Zoom No
Gain Control Yes
Dynamic Range (dB) No
Focus Auto
AGC (Automatic Gain Control) Built In
IR range (ft) 80ft to 90ft
OSD (On Screen Display) Yes
NTSC/PAL NTSC and PAL
Lens Included No
Lens Type Fixed focal length
Electronic Shutter Auto
Relative Aperture (F-stop) 1.4
Focal Length (mm) 4mm
Color White
Housing material Metal
Vandal-proof No
Outdoor Yes
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Battery Powered Hard wired
Ac Adapter included Yes
Operation Voltage 48 volt
Power consumption Amps DC (mA) No
Connector Type RJ45 Connector
Signal type NVR PoE
Warranty 1 Year
UPC Code 840236101238
