Unit includes: Module, Cable and Mounting Hardware

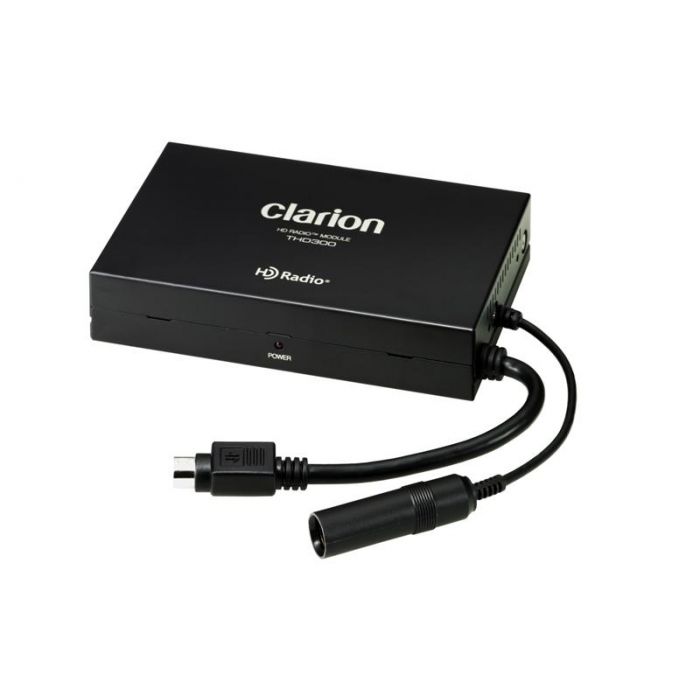

Clarion THD300 Add On HD Radio Tuner Module For CZ300, CZ500 and VZ300
Connect this THD300 tuner to your Clarion receiver and enjoy HD Radio
Add-on HD Radio tuner compatible with Clarion VZ300, CZ500, and CZ300 receivers
Receives both analog and digital signals; require no additional antennas or subscription fees
Supports multicasting, for additional programming from individual stations
Use iTunes tagging to purchase songs heard on the radio in iTunes (CZ500 and CZ300 only)
View program service data like artist/track info, weather and stock info, etc.
Presets: 3 FM bands and 1 AM band
iTunes Tagging: iTunes Tagging allows you to "tag" songs heard on the HD Radio Receiver. Tagging saves the song's title and metadata to a connected iPod (you may store up to 64 tags in the memory). When the iPod is synced to iTunes, a playlist is generated with links to the iTunes Store where the song can be purchased and downloaded.
The iTunes Tagging function can be operated with the following iPod/iPhone models - iPod video (5th gen), iPod nano (3rd/4th/5th gen), iPod classic (80/120/160GB), iPod touch (1st/2nd/3rd gen), and iPhone (2G/3G/3GS).
iTunes Tagging is not available for VZ300
Receiver Output: Proprietary 8-pin connector,(attached to a 6" pig-tail with a 40" extension DIN cable
Antenna: Female motorola antenna port (attached to a 6" pig-tail) for connecting your vehicle's antenna cord.
Dimensions: 5-1/4" W x 1" H x 3-1/4" D
HD Radio module with two attached 6" cables (terminated by a proprietary 8-pin connector and female motorola port)
40" DIN-cable (with a proprietary 8-pin connector on each end)
2 Metal mounting brackets
4 Machine screws
