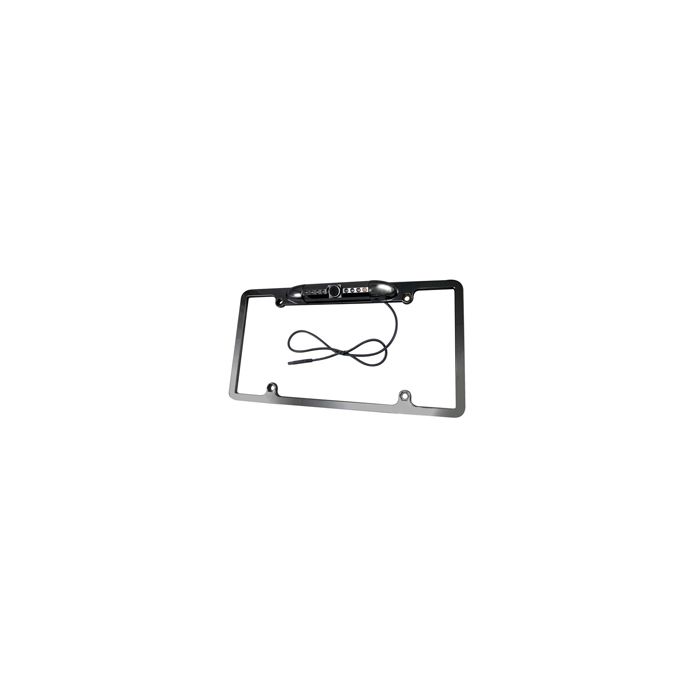

Safesight TOP-100IRB License Plate Frame Camera - Black

Safesight TOP-100IRB License Plate Frame Camera - Black

Accelevision TLP100IRB License Plate Frame Camera - Black

More Views

Item sku:TOP-100IRB
Accelevision

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Accelevision TOP-100IRB Product Highlights

Safesight TOP-100IRB License Plate Frame Camera - Black

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: License plate back up camera, Mounting bolts, Bolt caps, and Instruction manual

Safesight TOP-100IRB License Plate Frame Camera - Black features:

  • High sensitive built-in 1/3" DSP color CCD
  • 520 TVL Horizontal Resolution
  • Remarkable true color reproduction
  • Remarkable low lux performance of 0.3 lux @ F2.0
  • Excellent auto white balance
  • Waterproof (IP67) reverse image
  • Optional non-reverse image with separate adapter cable
  • 175° viewing angle
  • Black
  • Imager: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels: NTSC : 768(H)X494(V)
  • Horizontal resolution: 520 TV Lines
  • Total number of pixels: NTSC: 380K
  • Min.Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Smear effect: 0.005%
  • Gamma correction: r = 0.45
  • White balance: Auto.2100'K - 9100'K
  • Gain control: Auto. 4dB - 30dB
  • Lens mount: 1.56mm Board Lens (175° D)
  • MTBF: 80,000 hours
  • Power source: DC12V(Tolerance: 7V-24V)
  • Built-in transient impulse protection circuit
  • Operating current: 70mA w/regulated power in.
  • Operating Temp: -4° F~122° F ( -20° C~ + 50° C )
  • Storage Temp: -40° F~176° F ( -40° C~ + 80° C )
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 3.70(L) x 0.63(D) (Camera)

Technical Specifications

Manufacturer Accelevision
Part Number TOP-100IRB
Auto Dimming No
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type Full frame
Camera diameter No
Viewing Angle 175 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination Yes
Built in Microphone No
Trigger wire Yes
Auto on/off Yes
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No

Customer Reviews

Nice addition
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I installed this frame on a Subaru hatch back. No one can tell it has a back up camera built in. It was a bit of a challenge to install, as the bolts go from the outside in. This keeps the head sunk into the frame so it can't be stolen easily. I am very pleased with the quality of both the frame and the camera. (Posted on 6/27/2013)

Write Your Own Review

You're reviewing: Safesight TOP-100IRB License Plate Frame Camera - Black

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by frank baumann, Friday, July 31, 2015

Question:

Is the camera on the safesight TOP-100IRB adjustable up & down.

Answers:

  • Posted by Mike Yang on Friday, July 31, 2015
    A: The camera is in a fixed position once mounted.
Posted by Tim Baker, Thursday, June 13, 2013

Question:

I was looking at the differences between the Safesight "TLP100IRB License Plate Camera - Black" and the "TLP100IRC License Plate Frame Camera - Chrome". At first I thought the only difference would be that one is black and one is chrome. However, I noticed in the detailed description that the "Black" version has "auto on/off" but the "Chrome" version does not. Is this a misprint? Or does the Black version automatically turn on the camera when the vehicle is put in reverse, but the Chrome version must be manually turned on?

Answers:

  • Posted by Salvador Diaz on Thursday, June 13, 2013
    A:

    They are the same camera with the same features. The only diffrence is the color, they will both turn on when hooked up to the reverse tail lights.
