Safesight TOP-M7004 and SC0301 7 Inch Widescreen TFT LCD Rear View Mirror Monitor with Night Vision Back Up Camera and Anti Glare

Safesight TOP-M7004 and SC0301 7 Inch Widescreen TFT LCD Rear View Mirror Monitor with Night Vision Back Up Camera and Anti Glare

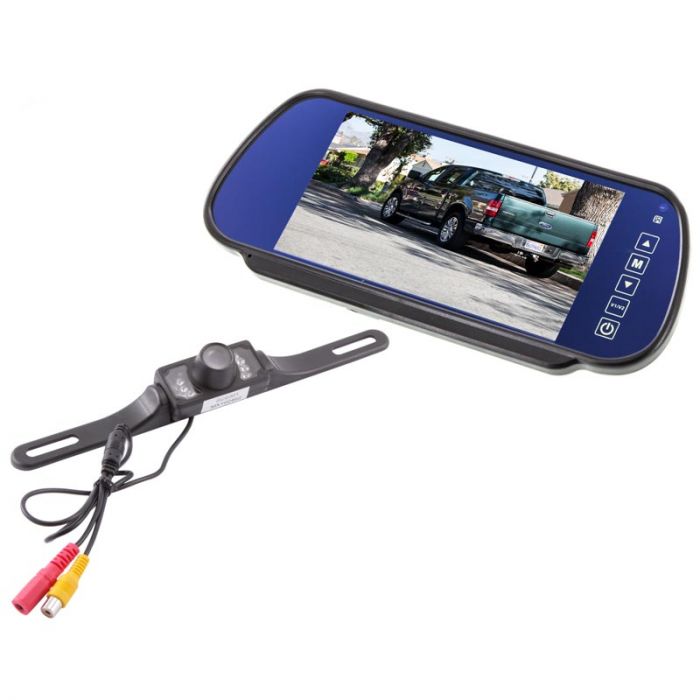

Safesight TOP-7004 & SC0301 Rear view mirror back up camera system - Monitor turned on & Camera

More Views

Item sku:TOP7004-SC0301
Safesight

Overall Rating 4 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Safesight TOP-M7004-SC0301 Product Highlights

  • High Definition 7" 16:9 Wide Screen TFT LCD
  • License plate mount infrared night vision CMOS camera
  • Two AV Inputs (AV-1, AV-2)
  • Built-in Reverse Gear Sensor Wire - Trigger

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 7 inch rear view mirror, License plate mount IR camera, Monitor wiring harness, Camera wiring harness, 18 foot RCA cable, Remote control, and Drill bit

Safesight TOP-M7004 & SC0301 7 Inch Widescreen TFT LCD Rear View Mirror Monitor with Night Vision Back Up Camera and Anti Glare
    Rear view mirror monitor details:
  • High Definition 7" 16:9 Wide Screen TFT LCD
  • PAL/NTSC Video System
  • Two AV Inputs (AV-1, AV-2)
  • Built-in Reverse Gear Sensor Wire - Trigger
  • Brightness, Color, Contrast, Tint, Language, Image rotate Control
  • Automatic Monitor Power On (AV-1)
  • Image rotate control allows you to rotate image 4 times and 90 degree intervals
  • Rear View Camera Priority
  • Anti Glare, Blue tinted clip on Mirror
  • Wireless Remote Control
  • Power Supply: 12V DC
  • Resolution" 1440x234 RGB
  • Dimensions: 9-7/8" (W) x 4-3/8" (H) x 3/4" (D)

  • License plate mount back up camera details:
  • Resolution: 380,2011, TV lines x 60 fields
  • Image sensor: OV 79,2010,10 Color CMOS
  • Lens: 6mm 92°
  • Low light illumination: 1.5 Lux @ F1.2
  • Video output: RCA 1.0 @ 75Ω
  • Power supply: DC 12V > 75Ω
  • Auto switch PAL/NTSC
  • Temperature: -10–50°C
  • Camera dim: 1.3" (H) x 8" (W) x 1.2" (D)

Technical Specifications

Manufacturer Safesight
Part Number TOP-M7004-SC0301
LCD Screen Size 7 inch - 8 inch
Widescreen Display 16:9 Widescreen Display
Touchscreen Yes
Native Screen Resolution 1440 x 234
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No - Auto Dimming
Monitor Color Black
Swivel Screen No
Audio Video inputs 2 Video Inputs
Built in Speakers No
Auto on/off Yes
Trigger wire Yes
Built in FM Modulator No
VGA input No - VGA input
Built-in DVD Player No
Built in Bluetooth No Bluetooth
Headphone Transmitter No
Homelink No
Image Flip Function Image rotate
Headphone Jack No
Mirror Mount Type Clip On
Back up camera type License Plate Camera
Monitor Type Rearview mirror monitor
Parking grid lines Yes
Built in Game System No
USB input No
SD Card input No
NTSC/PAL NTSC and PAL
Wireless Remote Control Yes
Anti-Shock No
Audio Video Outputs No
Vehicle Brand N/A
Warranty 90 days
UPC Code No

Customer Reviews

Need much more info on wiring & problem with glare in bright sun
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
The actual camera was simple to install & works well in moderate light only problem noted when raining or wet any drops on lense distorts view. The mirror has a very good picture except in bright sunlight. Clamps that hold mirror will slip if not careful when moving mirror. Biggest problem is wiring diagram needs more instruction on connecting trigger wire. This backup camera was installed on 2013 F150 super cab ford pickup, some people indicated you needed longer cables but I found cables that came with camera were okay. Ordered 25' cable but did not use. All things considered am happy with system for price. (Posted on 12/23/2013)
Excellent back up camera system
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I am very pleased with this system. The mirror is excellent quality and the camera provides a really good picture. The camera was very easy to install. I am very happy with this purchase. (Posted on 3/28/2013)
