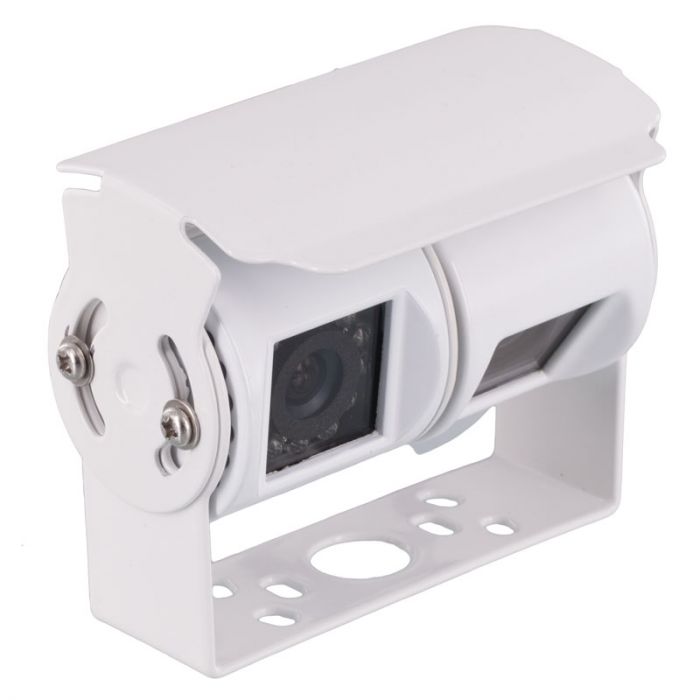

Safesight TOP-SS-5201S2RW Dual 1/3 inch CCD view rear view back up cameras - White finish

Safesight TOP-SS-5201S2RW Dual 1/3 inch CCD view rear view back up cameras - White finish

Safesight TOP-SS-5201S2RW Dual Head RV Camera - Front left

More Views

Safesight
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-SS-5201S2RW Product Highlights

  • Dual cameras in a single housing - One for wide angle and one for close viewing
  • Each camera contains a 1/3" Sony CCD Color image sensor
  • Each camera has 11 IR LED's for night-vision - effective range is 25 feet per camera
  • 120 degrees and 90 degrees viewing angles
  • Reverse image and Front Viewing option
  • White powder coated finish
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Double back up camera, Mounting hardware, Wiring harness, and Instruction manual

Safesight Safesight TOP-SS-5201S2RW Dual 1/3 inch CCD view rear view back up cameras - White finish:

Features:
  • Offers simultaneous viewing through 2 different cameras
  • Dual cameras in a single housing - One for wide angle and one for close viewing
  • Each camera is individually adjustable for angle
  • Ideal applications for large size vehicles, trailers, trucks, RV and buses
  • Each camera contains a 1/3" Sony CCD Color image sensor
  • Each camera has 11 IR LED's for night-vision - effective range is 25 feet per camera


Quick Specifications
  • 520 TV Lines of resolution per camera
  • Effective pixels per camera: 768 (H) x 494 (V)
  • Reverse image and Front Viewing option (mirror/ normal image switch)
  • Low Light performance of 0 lux @ F1.2 with IR
  • IP67 Waterproof rating
  • Camera 1 has a 120 Degree viewing angle for short distance viewing
  • Camera 2 has a 95 Degree viewing angle for longer distance viewing
  • White powder coated housing


Dimensions:
  • Camera dimensions: 4-1/2" (W) x 3-1/4" (H) x 2-5/8" (D)

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-5201S2RW
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Reverse Image Selectable
Parking grid lines Yes
Infrared Illumination Yes
Built in Microphone No
Trigger wire No
Auto on/off Yes
Connector Type 4 Pin Connector
NTSC/PAL NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color White
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No

Write Your Own Review

You're reviewing: Safesight TOP-SS-5201S2RW Dual 1/3 inch CCD view rear view back up cameras - White finish

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Have a question? Go ahead and ask anything. We are here to help.

Please login to ask a product question

Safesight
Ships Free!
Your Price: $149.99
$0.00 Tax Outside CA
Item sku:TOP-SS-5201S2RW
Condition:New
Availability:In stock
Free shipping on all orders over $99!
  - Shipping options
OR
    Quantity Discounts
  • Buy 2 for $139.99 each and save 7%
  • Buy 5 for $129.99 each and save 14%
  • Buy 10 for $119.99 each and save 21%
  • Buy 25 for $109.99 each and save 27%
