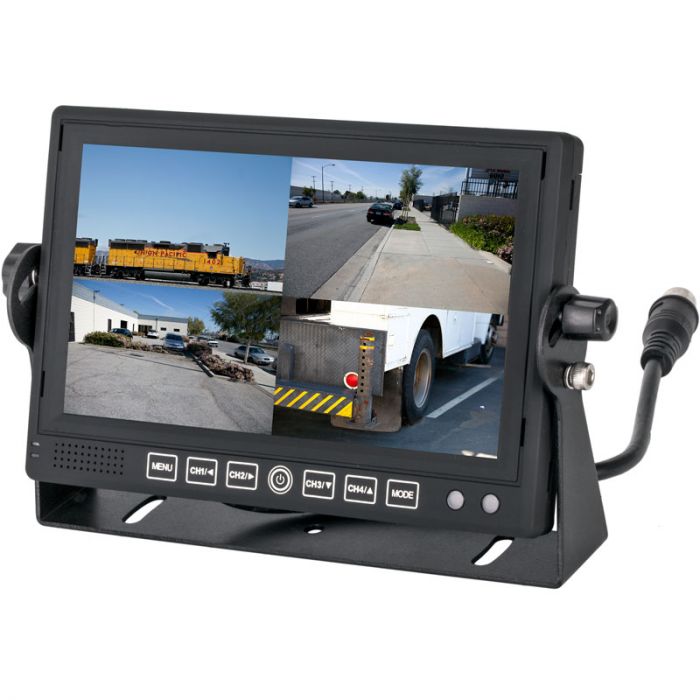

Safesight TOP-SS-D7001DVR 7 Inch LCD Quad Monitor with removable sun shade and 4 triggered inputs

Safesight TOP-SS-D7001DVR 7 Inch LCD Quad Monitor with removable sun shade and 4 triggered inputs

Safesight TOP-SS-D7001DVR 7 Inch LCD Quad Monitor - Main

More Views

Safesight
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-SS-D7001DVR Product Highlights

  • 7” TFT LCD Monitor with built in 4 channel DVR system
  • 4 AV inputs with quad screen
  • Supports 12V ~ 24V for personal or commercial vehicles
  • Built-in Speaker
  • 4 channel triggers with automatic switching
  • Removable sun shield
  • Rugged u-bracket with thumb screw angle adjustments
  • Slide track on back for use with a variety of mounts
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: 7 inch LCD monitor, Wiring harness, Remote control, Removable sun-shade, and Instruction manual

Safesight TOP-SS-D7001DVR 7 Inch LCD Quad Monitor with removable sun shade and 4 triggered inputs

    Monitor Features:
  • 7" TFT LCD color monitor with built in DVR for back up camera use
  • 4 hardwired 4-Pin Audio video inputs
  • Video input select for quick camera selection with multiple simultaneous camera modes
  • 4 triggers for each camera for auto selection when 12 volts is applied to the wire
  • Monitor is perfect for RV and commercial vehicles
  • Bright blue button illumination
  • PAL or NTSC auto switching input
  • Image rotation function to modify display settings for different cameras mounted in non normal positions
  • 16:9 wide screen display
  • Rugged u-bracket with thumb screw angle adjustments
  • Slide track on back for use with a variety of mounts
  • Elegant rubberized finish
  • Resolution 800 x 480 RGB
  • Power supply: 12V ~ 24V
  • Built-in speaker for cameras with audio
  • Contrast, color and brightness adjustable
  • Includes rugged U-bracket stand that can be mounted underneath, above or behind monitor
  • Detachable sun visor for better picture quality
  • Wireless remote control
    DVR features:
  • Records up to 4 channels simultaneously
  • MJPEG image compression and can easily be played back with Quick Time and other video players
  • Records at 30FPS per channel for smooth playback
  • 640 x 480 image resolution per channel
  • Recordings can be played back on device or on a computer
  • Security protected SD card slot
  • Supports up to 32GB SD cards
  • Time and date stamp
  • Time playback event
    Inputs and Outputs
  • 4 - 4-Pin audio video inputs
  • 1 - 12 - 24 Vdc power input
  • 1 - 12 - 24 Vdc ground input
  • 4 - 12 Volt DC triggers
    Dimensions:
  • Dimensions of monitor no bracket: 7" (W) x 4-3/4"(H) x 1" (D)
  • Dimensions of monitor with bracket: 8-1/4" (W) x 5-1/4"(H) x 1" (D)

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-D7001DVR
Recorder Type DVR Recorder
Camera Sensor type No
Camera diameter No
Infrared Illumination No
GPS Data No
Built in Microphone No
Built in Speakers Yes
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 350 Nit
Touchscreen No
Headphone Jack No
Built in FM Modulator No
Audio Video inputs 4 Audio Video Input
Audio Video Outputs No
HDMI output No
USB input Yes
SD Card input No
Cigarette Lighter Cord Included No
Auto on/off Yes
Slide track on back Yes
Stand Mount included Yes, Pedistal stand
Mounting thread for stand mount Yes
Operation Voltage 12 - 24 Volt DC
Housing material Plastic
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen Yes
Warranty 1 Year
Color Black
UPC Code No
