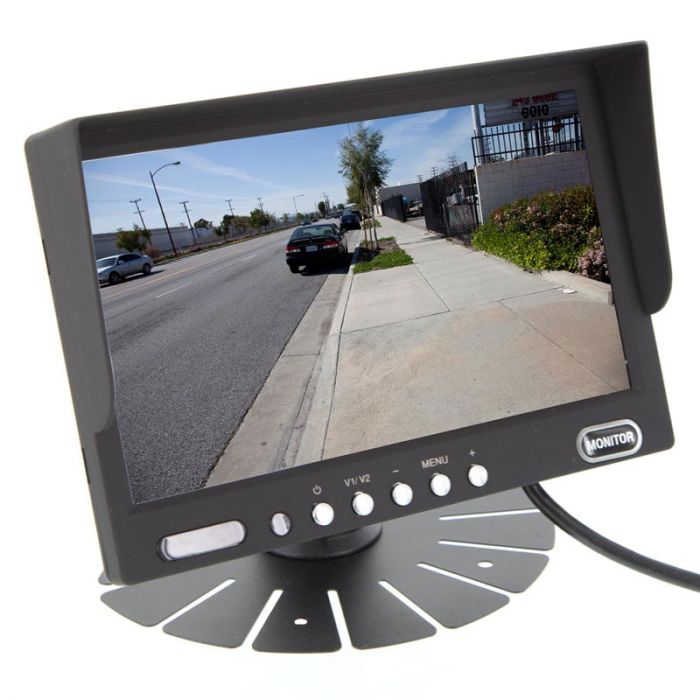

Safesight TOP-SS-D7001Q Universal 7 inch Quad Screen Monitor with built in sun shade

$171.99
In stock
SKU
TOP-D7001Q

Key Features

  • 7 inch TFT LCD digital panel monitor
  • Quad screen
  • 4 4-pin camera Audio Video Inputs
  • Built in sun shield
  • Automatic switching with triggered video inputs
Unit includes: 7 inch LCD display, Wiring harness, Auxiliary AV input cable, U-Bracket, Remote control, and Instruction manual

Safesight TOP-SS-D7001Q Universal 7 inch Quad Screen Monitor with built in sun shade features:
  • 7 inch TFT LCD digital panel monitor
  • Four 4-pin camera Audio Video Inputs
  • Four trigger wires to trigger video inputs, rear camera, left side camera, right side camera, aux camera
  • Multiple video modes for single screen, dual screen, tri-screen, and quad screen
  • Built in sun shield
  • Elegant rubberized finish
  • Fan mount monitor with thumb screw angle adjustments
  • Slide track on back for use with a variety of mounts
  • Image rotation function to modify display settings for different cameras mounted in non normal positions
  • Automatic switching with trigger
  • Optional PAL and NTSC system
  • Resolution 800 x 480 x 3 RGB
  • Power Supply 12V-24V
  • Remote Control Full Function, OSD (on screen display) Menu
  • Built-in Speaker
  • Contrast, Color and Brightness
  • Language Selection
  • Dimensions of monitor no bracket: 6-7/8" (W) x 4-1/2"(H) x 3/4" (D)

More Information
Manufacturer Safesight
Part Number TOP-SS-D7001Q
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 375 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Anti-Shock Yes
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
HDMI input No
VGA input No - VGA input
Audio Video inputs 4 Audio Video Input
Composite video input No
Front mounted auxiliary input None
USB input No
SD Card input No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen Yes
Cigarette Lighter Cord Included No
Operation Voltage 12-24 Volt DC
Headrest Shroud included No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
