Safesight TOP-SS-D7004HDMI 7 Inch LCD Monitor with HDMI input - (2) - 4 Pin Audio / Video inputs

Safesight TOP-SS-D7004HDMI 7 Inch LCD Monitor with HDMI input - (2) - 4 Pin Audio / Video inputs

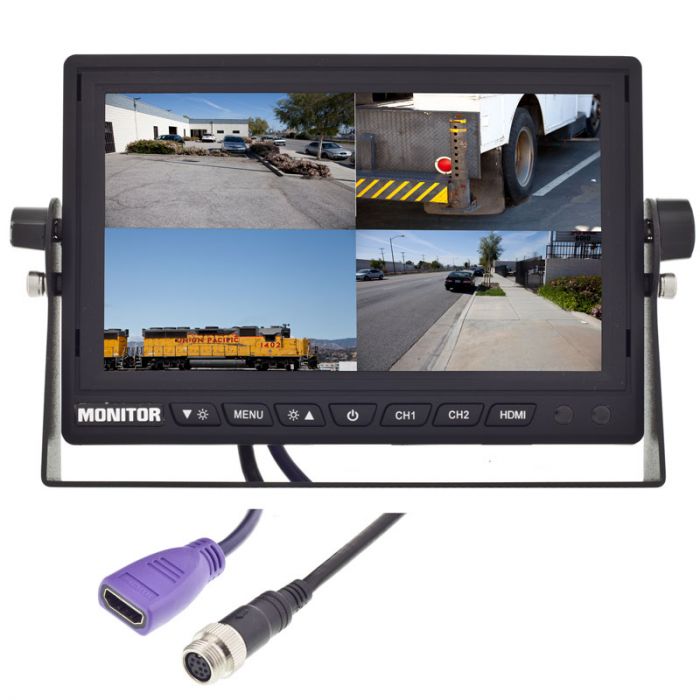

Safesight TOP-SS-D7004HDMI 7 Inch LCD Monitor with HDMI input - Front of monitor

More Views

Item sku:TOP-SS-D7004HDMI
Safesight

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Safesight TOP-SS-D7004HDMI Product Highlights

  • 7" Diagonal LCD monitor
  • HDMI input
  • 2 - 4 pin Audio / Video inputs
  • Trigger wire
  • Resolution 800 x 480 RGB

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 7 inch LCD monitor, Video input and power harness, Mounting stand, Sun visor, Allen key, and Remote Control

Get one of our most versatile LCD monitors, the TOP-SS-D7004HDMI 7 inch LCD monitor is very unique in that it is a back up monitor that has an HDMI input making it compatible with computers, smartphones, and many other devices. The monitor has built in speakers and connection for two cameras with automatic trigger, this monitor can be used for nearly any application.


Safesight TOP-SS-D7004HDMI 7 Inch LCD Monitor with HDMI input - (2) - 4 Pin Audio / Video inputs features:
  • 7" Diagonal LCD HDMI monitor
  • 2 - Composite Audio / Video inputs - 4 pin connectors. Can be converted to RCA cables with adapters (Sold separately)
  • Can be used with cameras that have microphones
  • HDMI inputs for use with any video source
  • PAL and NTSC auto switching
  • Trigger wire for back up or other auto turn on
  • Image rotation feature that allows you to mount the monitor in any direction and flip the image. Work on composite video inputs and HDMI input
  • High strength commercial grade U-bracket mount for use in rugged applications
  • Removable sun shade for use in high glare situations
  • New low-power draw LED backlight
  • Blue back-lit soft touch buttons
  • Brightness: 300 NIT
  • Voltage: 12Vdc - 24Vdc
  • Built in speaker with volume control
  • Power consumption: 700mA @ 12Vdc
  • Resolution 800 x 480 RGB
  • Resolution 800 x 480 RGB
  • Dimensions without sun visor: 8-1/4" (W) x 5-1/2" (H) x 3/4" (D)
  • Dimensions with sun visor: 8-1/4" (W) x 5-1/2" (H) x 2-3/4" (D)

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-D7004HDMI
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
NTSC/PAL NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input Yes
VGA input No - VGA input
Audio Video inputs 2 Audio Video Inputs
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Stand Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 24 volt
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
UPC Code No

Write Your Own Review

You're reviewing: Safesight TOP-SS-D7004HDMI 7 Inch LCD Monitor with HDMI input - (2) - 4 Pin Audio / Video inputs

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by JOhn, Thursday, November 20, 2014

Question:

Does this monitor turn on automatically, or do I have to hit the on button each time I start the van?

Answers:

  • Posted by Store Owner on Thursday, November 20, 2014
    A: When the trigger wire is connected, the monitor will turn on everytime the vehicle is placed in reverse and will turn off when you take the vehicle out of reverse. You can manually turn the monitor on to view the second camera or HDMI
