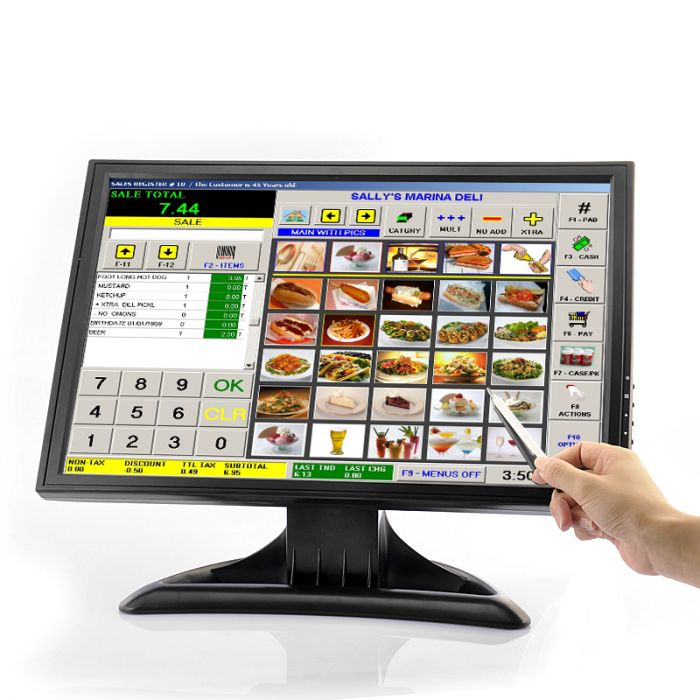

DISCONTINUED - Quality Mobile Video Clarus TOP-SS-LCD19 19 inch Widescreen Touchscreen LCD Monitor with VGA, AV, HDMI - 12 Volt power

DISCONTINUED - Quality Mobile Video Clarus TOP-SS-LCD19 19 inch Widescreen Touchscreen LCD Monitor with VGA, AV, HDMI - 12 Volt power

19 inch Widescreen Touchscreen HDMI & VGA 12 volt LCD monitor - Touchscreen with stylus

More Views

Item sku:TOP-SS-LCD19
Quality Mobile Video

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Quality Mobile Video TOP-CVVG-E280 Product Highlights

  • 12 volt
  • HDMI Input
  • VGA Input
  • USB Touchscreen
  • RCA Audio Video Input
  • Built in Speaker
  • Desktop stand included

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 19 inch Widescreen Touchscreen monitor, Mounting stand, Remote Control, Driver Disc, USB cable, VGA cable, 3.5mm audio cable, AC power adapter, Stylus, and Instruction manual

Quality Mobile Video Clarus TOP-SS-LCD19 19 inch Widescreen Touchscreen LCD Monitor with VGA, AV, HDMI - 12 Volt power features:
    General Specifications
  • 19 inch Widescreen Touchscreen LCD Touchscreen Monitor
  • 4 Point Resistive Touchscreen Display
  • Native Screen Resolution: 1440 x 900 (VGA)
  • Aspect Ratio: 16:9
  • Brightness: 500cd/m2
  • Contrast: 500:1
  • Viewing Angle: 80 Degrees/80 Degrees; 80 Degrees/80 Degrees (Left/Right; Up/Down)
  • Video Signal Input: 0.7 - 1.4Vp-p/75 Ohms
  • VGA Signal Input: H:30 - 60KHz, V:60-75Hz
  • Speaker: >250mW/8 Ohms
  • Color System: PAL-4.43, NTSC-3.58
  • Power Source: DC9-15V
  • Signal Input: PC, VGA, AV1, AV2, HDMI 1.2
  • Power Consumption: 1200MA
  • Working Temperature: -10 to +60 °C
  • Storage Temperature: -30 to +65 °C
  • Input: VGA
  • Input: AV1
  • Input: HDMI
  • Remote Controller: Yes
  • Supported Operating Systems for Touchscreen Software: Windows 98SE, XP, Vista, Windows 7, Linux, MAC
  • Certification: CE, FCC, RoHS
  • Dimensions: 17-3/4" (L) x 11-3/8" (H) x 2-3/8" (D)

  • Menu controls
  • Touchscreen Monitor Internal Menu Specs
  • Color: Brightness, Contrast, Color Temperature
  • Adjust: Auto Config, H Position, V Position, Phase, Clock
  • OSD: H position, V Position, OSD Time Out, Transparent
  • OSD: Languages: English, Chinese, French, Italian, German, Spanish, Japanese, Russian
  • Settings: Reset, Display Ratio, LR, UD
  • Sound: Volume Control

  • Features
  • User friendly and Low Energy Consumption
  • Compatible with VESA60 & VESA100 mounts
  • Excellent for use with POS and other touchscreen dependent applications
  • 12 volt so can be used in mobile computing applications, includes home power adapter for connection with wall plug
  • If you need to make use of the LCD touch screen monitor somewhere else, is can be easily detached from the base and taken out of the car.
  • 4, 9 and 25 point touchscreen calibration
  • Certification: CE, FCC, RoHS

Technical Specifications

Manufacturer Quality Mobile Video
Part Number TOP-CVVG-E280
LCD Screen Size 19 inch - 20 inch
Native Screen Resolution 1440 x 900
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 500 Nit
Swivel Screen Yes
Touchscreen Yes
NTSC/PAL NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
HDMI input Yes
VGA input Yes - VGA input
Audio Video inputs 1 Audio Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input No
USB input No
SD Card input No
Housing material Plastic
Slide track on back No
Mounting thread for stand mount No
Stand Mount included Yes, Pedistal stand
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 volt
Ac Adapter included Yes
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
UPC Code No
