Clarus TOP-SS-LCD7004 7" Wide screen LCD Module with remote control

Clarus TOP-SS-LCD7004 7" Wide screen LCD Module with remote control

7" Raw LCD Module

More Views

Clarus
Ships Free!

Overall Rating 5 (Based on 1 reviews)

Clarus TOP-SS-LCD7004 Product Highlights

  • 7 inch Super thin LCD module
  • Dual RCA Composite video inputs
  • Auto power on with triggered input, automatically selects video input, video 1 is priority
  • 5 button control board for brightness, color, tint, and image rotation
  • Remote control
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

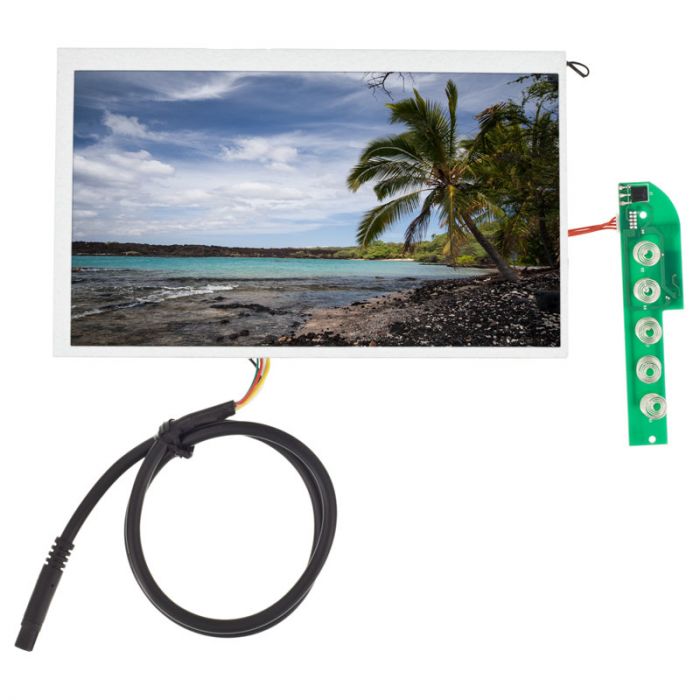

Unit includes: 7 inch raw module, Wiring Harness, and Remote control

Quality Mobile Video Clarus TOP-SS-LCD7004 7" Wide screen LCD Module with remote control features:
  • 7 inch Super thin LCD module
  • LED back lite for minimal power consumption and uniform back light intensity
  • Remote control allows full operate from the remote control, IR receiver is located on button control board and IR receiver must be exposed for remote to work
  • Dual RCA Composite video inputs
  • Triggered video input, powers on with a 12 volt positive signal, automatically selects video input, video 1 is priority
  • Image flip function allows the monitor to reverse an image, or rotate the image so that the display can be placed upside down
  • OSD - on screen display for control of color, tint, contrast
  • Brightness button allows you to change LCD brightness
  • Spring loaded capacitance buttons allow you to make buttons out of nearly any material
  • 16:9 Aspect ratio
  • Resolution: 1440 (H) x 234 (V)
  • Power Source: DC 12V @ 300mA
  • Push button on and off switch
  • Brightness: 350 NIT
  • LCD Dimensions: 3-7/8" (H) x 6-1/2" (W) x 1/4" (D)
  • Control Board Dimensions: 1-3/16" (H) x 2-3/8" (W) x 3/8" (D)

Technical Specifications

Manufacturer Clarus
Part Number TOP-SS-LCD7004
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1440 x 234
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen No
Touchscreen No
NTSC/PAL NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No
Audio Video inputs 2 Video Inputs
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input No
USB input No
SD Card input No
Phone Mirroring No
Housing material No
Slide track on back No
Mounting thread for stand mount No
Stand Mount included No
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Light Grey
Color No
Warranty 1 Year
UPC Code No

Customer Reviews

Lcd module review
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I own a vintage motor home with a reverse image crt monitor which failed. This monitor was able to replace my monitor and I was able to program it for reverse image and the correct aspect ratio
(Posted on 12/1/2017)
