Safesight TOP-SS-RC503 1/4 inch Small Heavy Duty CCD Back Up Camera with Night Vision

Safesight TOP-SS-RC503 1/4 inch Small Heavy Duty CCD Back Up Camera with Night Vision

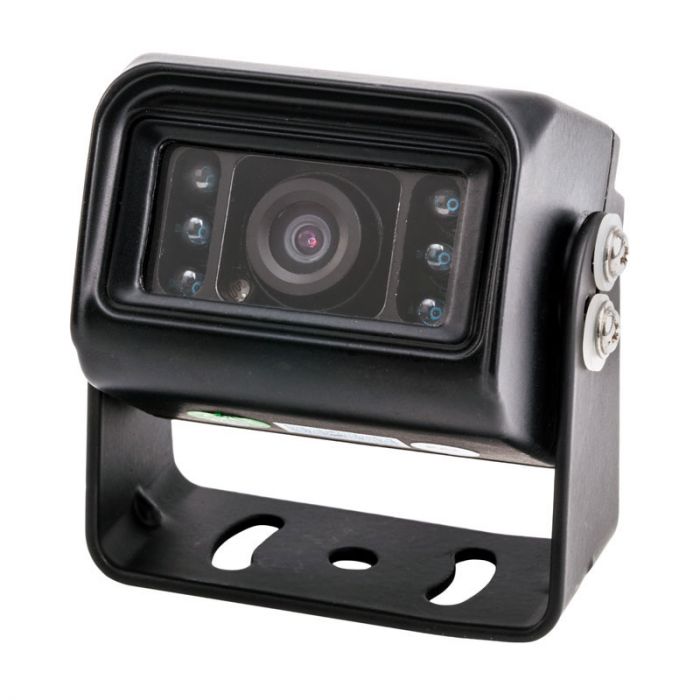

Safesight TOP-SS-RC503 Reverse back up camera - Main

More Views

Item sku:TOP-SS-RC503
Safesight

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Safesight TOP-SS-RC503 Product Highlights

  • 120 degrees Wide Angle Camera
  • Sharp 1/4" CCD Image Sensor
  • IR Infrared 6 LEDs for Night Vision 18 ft distance
  • Waterproof Rating: Ip69
  • Shell Material Aluminum Alloy
  • 4 Pin Connector

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Back up camera, Mounting hardware, and Instruction manual

We have taken our most popular backup camera and made it smaller and better. This new version of our popular SC0104 back up camera retains all of the good benefits and adds the compact size. You can be more flexible with mounting locations or use it as a side camera. You will love the new miniature size.

Safesight TOP-SS-RC503 1/4 inch Small Heavy Duty CCD Back Up Camera with Night Vision

    Features:
  • High Resolution Back Up Camera with infrared illumination
  • Sharp 1/4" CCD Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: N - 510x492; P - 500x582
  • 120 degrees Wide Angle Camera
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 6 LEDs for Night Vision 18 ft distance
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 2-5/8" (W) x 1-7/8" (D) x 2-3/8" (H)
  • Waterproof Rating: Ip69
  • Shell Material Aluminum Alloy
  • Square style casing
  • 4 Pin Connector - RCA Adapters are sold separately
  • Available in White see part number SC0104-RC501MW

  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Bus, Van, Tractor, Trailer, Crane, Dirt Wagon, etc)

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-RC503
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type 4 Pin Connector
NTSC/PAL NTSC and PAL
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
