Safesight SC9002D Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Digital Wireless Camera System w No Interference Guaranteed

Safesight SC9002D Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Digital Wireless Camera System w No Interference Guaranteed

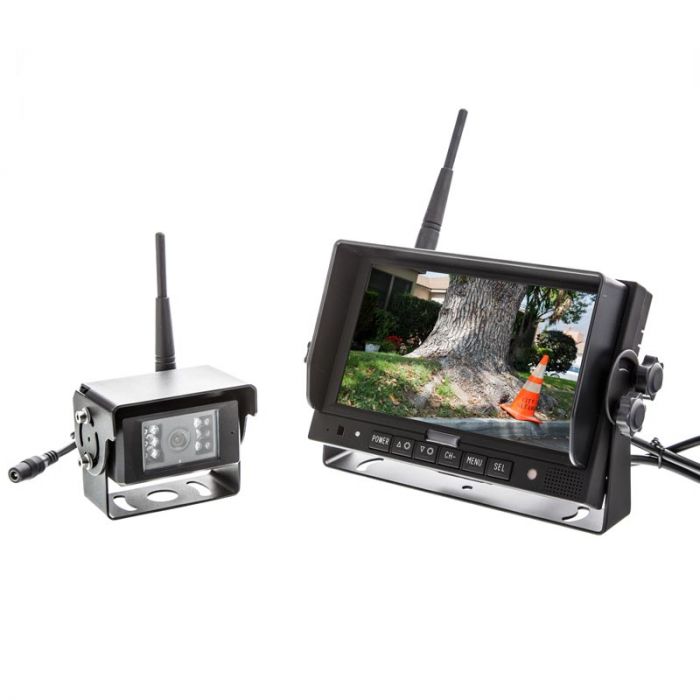

Safesight TOP-SS-SC9002D Digital Wireless Back up Camera System - Monitor with sun shade and Camera

More Views

Item sku:TOP-SS-SC9002D
Safesight

Overall Rating 5 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Safesight TOP-SS-SC9002D Product Highlights

  • Digital Wireless Technology - Not subject to common interference and static, much better than Analog wireless systems
  • 7 inch LCD display with optional sun shade
  • 1/3 inch Sharp CCD camera for superior night time picture quality
  • 420 TV lines of resolution
  • Built in microphone and speaker
  • 200 foot range

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 7 inch LCD monitor/w wireless receiver, Wiring harness, Back up camera/w Wireless Transmitter, Remote Control Instruction manual, and Connectors

Safesight SC9002D Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Digital Wireless Camera System w No Interference Guaranteed

      Digital Wireless Technology

This camera system comes with digital wireless technology for no static or interference guaranteed. The future in wireless technology, a digital broadcast signal completely eliminates the loss of signal often found on standard wireless camera systems that run off an analog signal.

      Overview:
    • 7 inch LCD monitor/w wireless receiver
    • Remote Control
    • Night vision CCD camera/w wireless transmitter
    • Digital signal w/ no interference guaranteed
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)

    Wireless Digital Monitor
  • 7 inch TFT LCD High Resolution
  • PAL/NTSC auto switching
  • Resolution: 800x480xRGB
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • Digital signal w/ no interference guaranteed
    • Monitor Dimensions
    • 7 3/16 W x 4 13/16 H x 1 3/4 D
    • With Antenna:7 3/16 W x 9 H x 1 3/4 D

    Wireless Digital Camera
  • High Resolution Back Up Camera
  • 1/3" CCD Image Sensor
  • System: NTSC/PAL
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • IR Infrared 10 LEDs for Night Vision 45 ft distance
  • Audio Function
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Power Supply: DC 12V - 24V
  • Waterproof Rating: Ip69
  • Shell Material Aluminium Alloy
    • Camera Dimensions
    • 3 1/2 W x 2 7/8 H x 2 1/8 D
    • With Antenna: 3 1/2 W x 6 H x 2 1/8 D


Note: This item is intended to be used as a back up camera, if you are intending on using this item as a continuously on monitoring system vehicle speed cannot exceed 35 MPH as the system will stop working.

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-SC9002D
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 400 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs No
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter 1/3 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Battery Powered Hard wired
Case included Yes
Connector Type 4 Pin Connector
Wireless Transmission Yes, Digital Wireless
Color Black
Operation Voltage 12 - 24 volt
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Customer Reviews

Nice unit but didn't work at highway speeds.
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
The SC9002D w/7" monitor worked great for backing or speeds up to 30 mph. I wanted a unit that could monitor the rear of my trailer at 65 mph. This unit can not do that, so I returned it for a refund. The refund process went well and I am pleased with your customer service. I appreciate your understanding. (Posted on 5/30/2014)
High quality
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I bought two of these for a our loaders and they work great and are really well built. I was somewhat skeptical with wireless especially on a commercial vehicle but these worked out great for us. I have had no troubles and the installation was very easy. I am really happy. (Posted on 3/5/2014)

Write Your Own Review

You're reviewing: Safesight SC9002D Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Digital Wireless Camera System w No Interference Guaranteed

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Rick, Friday, July 31, 2015

Question:

How many cameras will this system support?

Answers:

  • Posted by Mike Yang on Friday, July 31, 2015
    A: This unit only supports 1 camera. There are other units have can support up to 4 camera.
Posted by Thomas Carroll, Friday, July 25, 2014

Question:

Does the Safesight SC9002D Universal 7 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Digital Wireless Camera System give you a color image on the monitor while in use?

Answers:

  • Posted by Salvador Diaz on Friday, July 25, 2014
    A:

    Yes, this will give you a color image during the day and give you a black and white image at night. If you have further questions or concerns please feel free to give us a call at 800-363-0096.

    Thanks

Posted by kevin, Thursday, January 30, 2014

Question:

Do wireless cameras need a clear line of sight to operate

Answers:

  • Posted by Salvador Diaz on Thursday, January 30, 2014
    A:

    No we have a Digital Wireless systems which we will work no problem. Please give us a call at 800-363-0096 to receive more details. Thanks
