Safesight TOP-SS-VRDC700 1/3" Sony HAD CCD Vandal-resistant IR Dome camera with 700TVL - 12VDC

Safesight TOP-SS-VRDC700 1/3" Sony HAD CCD Vandal-resistant IR Dome camera with 700TVL - 12VDC

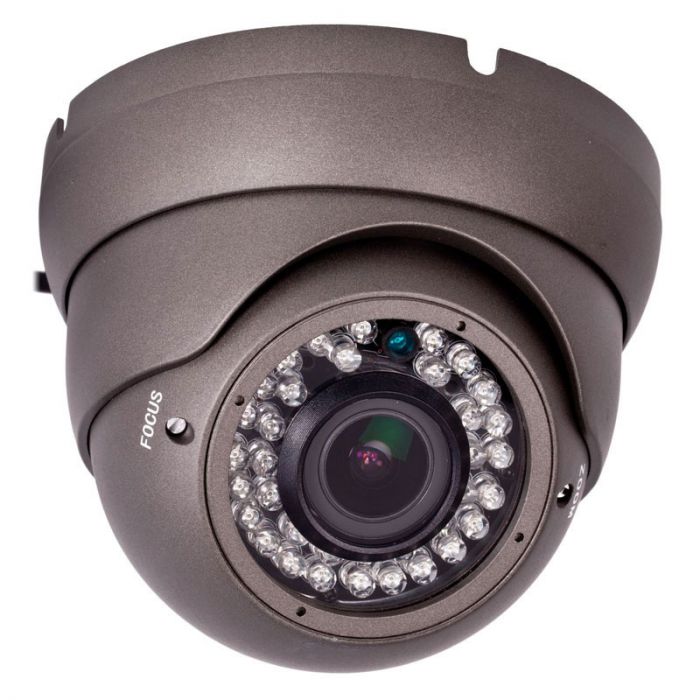

Safesight TOP-SS-VRDC700 1/3" Sony HAD CCD Vandal-resistant IR Dome camera - Front view

More Views

Item sku:TOP-SS-VRDC700
Safesight

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Safesight TOP-SS-VRDC700 Product Highlights

  • 1/3" Sony Super HAD CCD
  • Produces 700TV lines of video
  • 2.8-12 mm lens
  • Manual zoom
  • Outdoor Vandal-resistant

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: IR dome camera, mounting hardware, and Instruction manual

Safesight TOP-SS-700 1/3" Sony HAD CCD Vandal-resistant IR Dome camera with 700TVL - 12VDC
  • 1/3" Sony Super HAD CCD
  • 2.8-12 mm lens
  • Produces 700TV lines of video
  • 976 x 494 (NTSC resolution)
  • Digital day/night improves the camera‚Äôs low light sensitivity
  • See in complete darkness up to 50 ft. with internal 36 LED's
  • IP66 sealed for use in direct rain and high humidity
  • Automatic white balance and backlight compensation
  • Video output: 1Vp-p at 75 ohms
  • Power requirement: 12 VDC, 400 mA

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-VRDC700
Max DVR Channels No
DVR HDD Capacity No
Cable length No
Wireless Transmission No, wired connection
Infrared Illumination Yes
Built in Microphone No
Included cameras No
Imager Manufacturer Sony
Camera Sensor type CCD
Sensor Size 1/3 inch
Camera diameter 3.6mm
Lines of Resolution 700
Minimum Illumination .001 Lux
Color Camera Yes
Viewing Angle 120 degrees
IR LED Count 36
Infra-Red Wavelength 850nm
Zoom No
Gain Control Yes
Dynamic Range (dB) More than 52db
Focus Manual
AGC (Automatic Gain Control) Built In
IR range (ft) 90ft to 100ft
OSD (On Screen Display) Yes
NTSC/PAL NTSC only
Lens Included Yes
Lens Type Manual Zoom
Electronic Shutter Auto
Relative Aperture (F-stop) 1.2
Focal Length (mm) 2.8 - 12mm
Color Dark Grey
Housing material Metal - Vandalproof
Vandal-proof Yes
Outdoor Yes
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Battery Powered Hard wired
Ac Adapter included No
Operation Voltage 12 - 15 volt
Power consumption Amps DC (mA) 450
Connector Type BNC Connector
Signal type BNC Composite Video
Warranty 1 Year
UPC Code No
