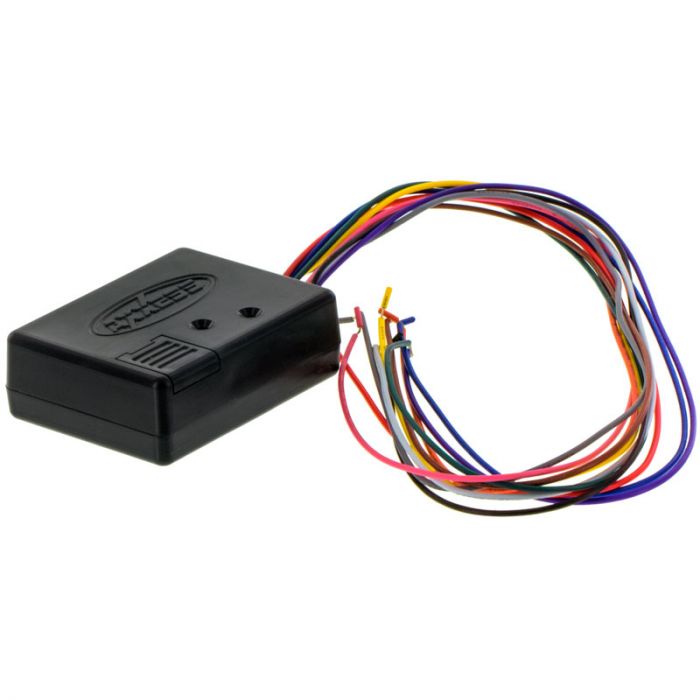

Axxess TRIGGER Universal Trigger and Latching Output Module

$36.99
In stock
SKU
TRIGGER

Key Features

  • 15 different capabilities
  • Trigger module for pulsed, constant, latching and un-latching outputs
  • Great for setting up latching relays for special circuits
Unit Includes: Trigger module

Axxess TRIGGER Universal Trigger and Latching Output Module
    Features:
  • The most comprehensive trigger module that can be used to design special application circuits, the possibilities are virtually endless!
  • Retained accessory power - Device will turn on and stay on at all times when the accessory turns on and will not turn off until the door opens or 10 minutes passes, whichever first.
  • Delayed amp turn-on - When the input is activated, there will be a 2-second delay before pin-8 turn-on.
  • Low voltage turn-on - Provides 12 volts turn on from a low voltage source
  • Latched outputs - Allow the capability of making a pulsed signal a latched signal.
  • GMLAN aftermarket amp turn-on - Provides an amp turn on in LAN vehicles for adding an aftermarket amp.
  • Active edge pulse generator - Allow the capability of making an input signal a pulse signal.
  • Turn-off delay - When the output is turned off, the pin-8 will stay active for two additional seconds.
  • Double pulse latch - Device will turn on when accessory turns on, and will not turn off until door opens or 10 minutes passes, whichever comes first.
  • Double pulse to one-second output - Converts a double pulse output to a single pulse output.
  • Theft detection/closed loop trigger - When connected, if item loses ground the Trigger will send out a 12 volt constant signal which can be hooked to an audible device.
  • Channel expander - Gives the ability to add additional channels to an alarm, etc.
  • Simple data detector - Produces a positive or negative signal out when data is detected.
  • Long delayed turn-off - This mode will keep headlights on for 1 minute after ignition is turned off.
  • Dome light delay - Keeps dome light on for 30 seconds after ignition is turned off.
  • Custom program - Ability to custom program the Trigger using the Trigger program. Note: USB-CAB is required
    Custom program modes:
  • Channel expander, latched - Measures pulses that occur during 5 second interval. One pulse per 5 seconds will toggle pin-6 (Green), two pulses per 5 seconds will toggle pin-7 (Red), and three pulses per 5 seconds will toggle pin-8 (Blue).
  • Channel expander, pulsed - Measures pulses that occur during 5 second interval. One pulse per 5 seconds will drive pin-6 (Green) active for XX seconds, two pulses per 5 seconds will drive pin-7 (Red) active for XX seconds, and three pulses per 5 seconds will drive pin-8 (Blue) active for XX seconds. XX is definable between .1 and 300 seconds.
  • Delayed turn-off - Connect active high input to pin 9, or active low input to pin 10. Use any output pin. When input goes high, output will turn on immediately. When input goes inactive, output turn-off will be delayed by XX seconds, where XX is definable between .1 and 300 seconds.
  • Delayed turn-on - Connect active high input to pin 9, or active low input to pin 10. Use any output pin. When input goes high, output will turn on after a delay of XX seconds. When input goes inactive, output turn-off will be immediate. XX is definable between .1 and 300 seconds.
  • Delayed three-output delay/pulse width, edge driven (for use with linear actuators) - When either input goes active, each output will go active after a delay, and then stay active for a pulse width. Each output has an independent delay and pulse width, definable between .1 and 300 seconds.
  • Generic three-output delay/pulse width, level driven (validity) - When either input goes active, each output will go active after a delay, and then stay active for a pulse width. Each output has an independent delay and pulse width, definable between .1 and 300 seconds.
  • Square wave-generator (sounds horns, blinks lights) - When either input goes active, all three outputs will toggle every XX seconds, where XX is definable between .1 and 300 seconds. Stops when input goes inactive.
  • Multiple pulse generator - A single input pulse on either input will produce multiple pulses on all outputs. The number of pulses can vary from 1 to 255, and each pulse will last XX seconds, where XX is definable between .1 and 300 seconds.
More Information
Manufacturer Axxess
Part Number TRIGGER
Warranty 1 Year
California Proposition 65
UPC Code 086429250370
Return period 30 days
Exchange period 30 days
