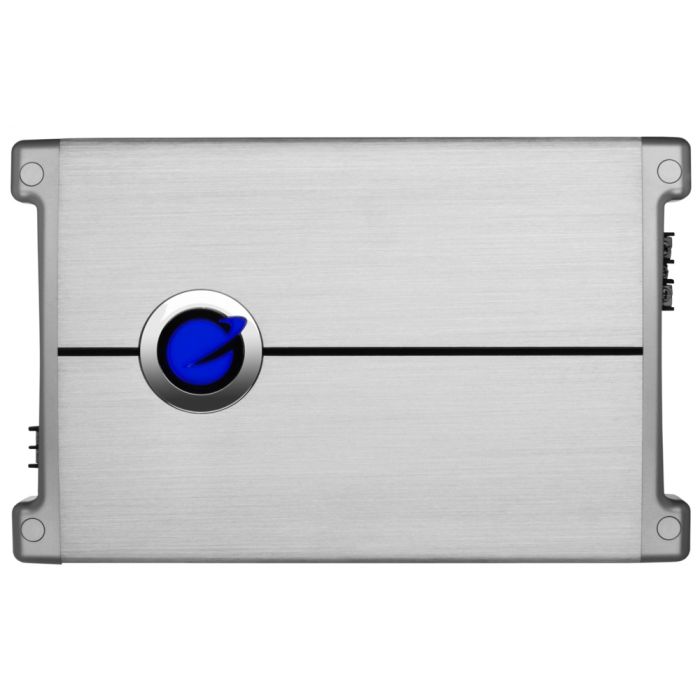

Planet Audio TRQ1.4000D 4000 Watt Class D Monoblock Power Amplifier

Planet Audio TRQ1.4000D 4000 Watt Class D Monoblock Power Amplifier

Planet Audio TRQ1.4000D Torque Series 4000 Watts 1-Ohm Stable Class D Monoblock Power Amplifier

More Views

Item sku:TRQ1.4000D
Planet Audio

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Planet Audio TRQ14000D Product Highlights

  • Torque Series Monoblock Class D Car Amplifier
  • 4000 Watts x 1 @ 1-Ohm
  • Illuminated torque logo
  • Remote subwoofer level control
  • Low level inputs
  • Variable bass boost

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Class-D Power Amplifier, Bass control, Mounting hardware, and Instruction manual

Planet Audio TRQ1.5150D 5000 Watt Class D Monoblock Power Amplifier

    Features:
  • Torque Series Monoblock Class D Car Amplifier
  • PWM or Pulse width modulated MOSFET power supply
  • Green power LED and RED protect LED
  • Pre-amp RCA outputs for daisy chain connections to multiple amplifiers
  • 3-Way protection: Thermal, Overload, and Short circuit protection
  • Blue Illuminated torque logo
  • Remote subwoofer level control
  • Extruded aluminum housing for excellent heat dissipation
  • Frequency response: 15 Hz - 250 Hz
  • Variable bass boost
  • Requires 0/1 gauge power and ground wiring for installation
    Power Output Max:
  • 4000 Watts x 1 @ 1-Ohm
    Power Output RMS:
  • 1500 Watts x 1 @ 4-Ohm
  • 2000 Watts x 1 @ 2-Ohm
  • 4000 Watts x 1 @ 1-Ohm
    Quick Specs:
  • Signal Input: Low Level: RCA inputs
  • Low level voltage input: 100 mV - 2 Volts
  • High level voltage input: 2 Volts - 8 Volts
  • Variable sub-sonic filter: 15 Hz - 40 Hz
  • Bass boost: 0dB - 18dB at 50Hz
  • Phase Control: 0 - 180°
  • Signal to Noise ratio: >78dB
  • Dimensions: 15" (L) x 2-1/4" (H) x 9-1/2" (W)

Technical Specifications

Manufacturer Planet Audio
Part Number TRQ14000D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total Peak Power Output 3501 - 4000 watts
Total RMS Power Output 1000 - 1500 Watts
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode No
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 150 mV - 11 V
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Guage N/A
UPC Code 636210105169
