Pioneer TS-A1305C A Series 5 1/4 Inch 300 Watt Component Speaker Package

Pioneer TS-A1305C A Series 5 1/4 Inch 300 Watt Component Speaker Package

Pioneer TS-A1305C 5 1/4 Inch Car Component Speakers - Complete system

More Views

Item sku:TS-A1305C
Pioneer

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Pioneer TSA1305C Product Highlights

  • 5-1/4" Woofer with 3/4" Soft dome tweeter
  • 300 Watts Max Power (50 Watts Nominal)
  • New Multi-Layer Mica Matrix Cone Design for Optimum Sound Reproduction and Responsiveness
  • Soft Dome Tweeter with Wave Guide for Increased Sensitivity
  • Passive Crossover Network

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

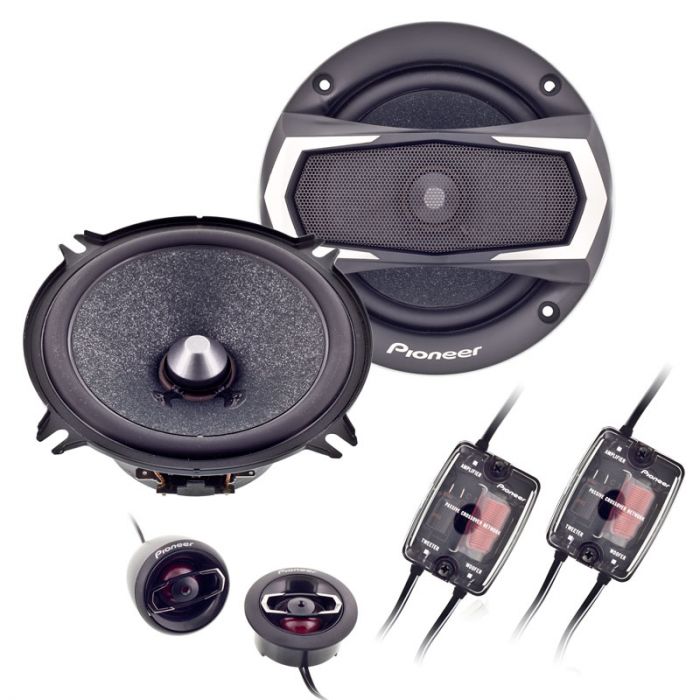

Unit includes: Two woofers, Two tweeters, Two crossover networks, Mounting hardware, Speaker grills, and Instruction manual

Pioneer TS-A1305C A Series 5 1/4 Inch 300 Watt Component Speaker Package
    New materials
  • To create new A-Series speakers, various materials were combined to create extra lightness and rigidity to produce outstanding sensitivity while remaining very clear. The A-series speakers feature a multilayer mica matrix cone where a surface containing mica properly maintains the cone’s superior rigidity making them light and water resistant.

  • Tweeters and Midrange
  • A-Series speakers have a smooth off-axis response, they feature a soft dome tweeter that utilizes a wave guide. This wave guide design ensures mid and high frequencies that emit in a uniform and wide dispersion patter. This results in a smooth response both on and off axis. The wave guide is combined with newly developed tweeter that disperses sound more widely providing listeners with the best sound possible under all conditions.

  • Large Magnet structure
  • The large magnet structure greatly enhances the speed of the cone while providing impressive power and response.

  • Oversized Cone
  • The cone is 14% larger that cones on conventional 6-1/2 inch speakers yet they will fit in the exact same cutout.
Unit includes: Pair of 5-1/4" woofers, Pair of 3/4" Tweeters, Pair of Passive crossovers, Pair of Flush mount tweeter cups, Pair of Surface mount tweeter cups, Pair of woofer grills, Mounting Screws and Instruction manual

Fusion PP-FR6920 Powerplant Series 6 x 9 Inch 2-Way Speakers for Vehicles features:
    Features
  • 5-1/4" Woofer with 3/4" Soft dome tweeter
  • Multi-Layer Mica Matrix Woofer Cone for Optimum Sound Reproduction and Responsiveness
  • Ferro Fluid Filled Tweeters help heat dissipation for maximum reliability
  • Lightweight elastic polymer surround for high sensitivity
  • Heat-resistant voice coil wire for heat dissipation and durability to withstand high input power
  • Soft Dome Tweeter with Wave Guide for Increased Sensitivity
  • Smooth off-axis response
  • Passive Crossover Network

  • Power Handling Max
  • Max power: 300 watts

  • Power Handling RMS
  • RMS Power: 50 watts

  • Quick Specs
  • Frequency response: 48 Hz to 32 kHz
  • Sensitivity: 89 dB
  • Impedance: 4 ohms
  • Type: 2-Way Component

  • Dimensions
  • Speaker Cut-out Size: 4-3/4"
  • Mounting Depth: 2-1/8" for the woofer and 3/4" for the tweeter

Technical Specifications

Manufacturer Pioneer
Part Number TSA1305C
Speaker Size 5 1/4 inch
Speaker system type Component - 2 way
Frequency Response 48 - 32,000 Hz
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS 50 Watts
Power Handling Peak 300 Watts
Sensitivity 89dB
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Mounting Depth $2.13
Color Black
Warranty 1 Year
UPC Code 884938187398
