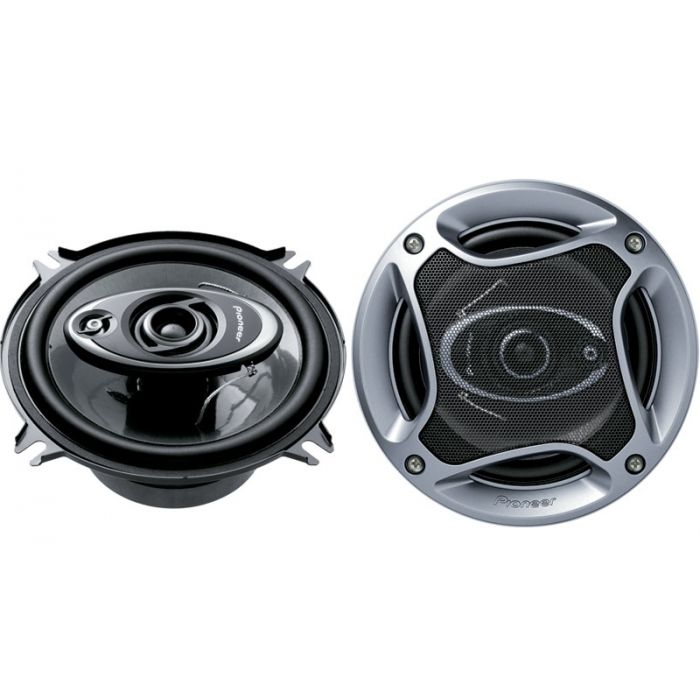

DISCONTINUED - Pioneer TS-A1372R A Series 5.25 Inch 3 Way 200 Watt Speakers

DISCONTINUED - Pioneer TS-A1372R A Series 5.25 Inch 3 Way 200 Watt Speakers

DISCONTINUED - Pioneer TS-A1372R A Series 5.25 Inch 3 Way 200 Watt Speakers

More Views

Pioneer
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Pioneer TS-A1372R Product Highlights

DISCONTINUED - Pioneer TS-A1372R A Series 5.25 Inch 3 Way 200 Watt Speakers
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Grille

DISCONTINUED - Pioneer TS-A1372R A Series 5.25 Inch 3 Way 200 Watt Speakers
  • Intro
  • This 5-1/4” three-way speaker is a product of Pioneer’s experience in applying technology to music. Now you can apply this technology to your vehicle to enhance your music experience!
  • Composite IMPP Cone with Interlaced Dual Aramid Fiber: With long aramid fibers interlacing together inside, this IMPP cone design provides the strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound character with midrange depth that conventional IMPP cones cannot match.
  • Lightweight Balanced-Dome Midrange: Better technology, better performance: instead of conventional materials, we used a lightweight fiber in our new balanced-dome midrange. The key to this material is that it is 30% lighter than conventional materials. That difference in weight means faster and more accurate response, for exceptionally clean, detailed music.
  • Power Handling: The TS-A532P handles a full 200 watts max. power (30 watts nominal). So, what did we have to give up? Not a thing. Along with bigger power handling, you still get the same high performance that all the TS-A’s deliver.

  • Features
  • Woofer Cone Material: Composite IMPP Cone with Interlaced Dual Aramid Fiber
  • Surround: Butyl Rubber for Smoother Response
  • Voice Coil Bobbin: Glass-Imide
  • Damper: Aramid Fiber
  • Mid-Range: 1-1/4" Lightweight Balanced Soft Dome Midrange with Magnetic Fluid
  • Tweeter: 3/8" Dome Tweeter
  • Speaker Grille: Included

  • Specifications
  • Watts MAX. Music Power: 200 Watts
  • Watts Nominal Power Handling: 35 Watts
  • Frequency Response: 35 Hz to 31 kHz
  • Sensitivity (1W/1m): 89 dB
  • Ohm Rating: 4 ohm
  • Mounting Depth: 2-1/8" (53 mm)
  • Cut-out Dimensions: 4-3/4" (121 mm)

Technical Specifications

Manufacturer Pioneer
Part Number TS-A1372R
Speaker Size 5.25 inch
Speaker system type 3 - way
Frequency Response No
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS Up to 300 watts
Power Handling Peak No
Sensitivity No
FS N/A
QES N/A
QMS N/A
QTS N/A
RE N/A
VAS N/A
Xmax (millimeters) No
Mounting Depth No
Color Grey
Warranty 1 Year
UPC Code No
