Pioneer TS-A1685R A Series 6 1/2 Inch 350 Watt 4-Way Speaker System

Pioneer TS-A1685R A Series 6 1/2 Inch 350 Watt 4-Way Speaker System

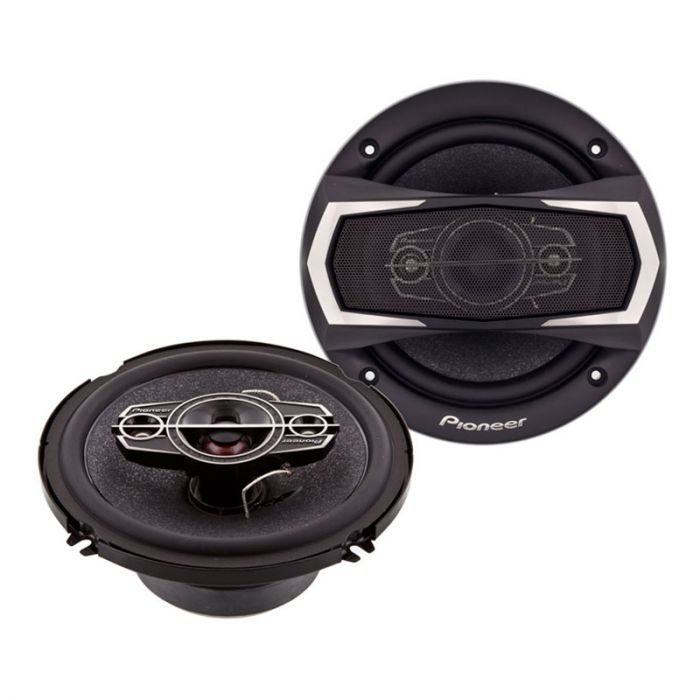

Pioneer TS-A1685R 6.5 inch car speaker - Main

More Views

Item sku:TS-A1685R
Pioneer

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Pioneer TS-A1685R Product Highlights

  • 350 Watts Max Power (60 Watts Nominal)
  • New Multi-Layer Mica Matrix Cone Design for Optimum Sound Reproduction and Responsiveness
  • Soft Dome Tweeter with Wave Guide for Increased Sensitivity

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Two 4-way speakers, Mounting hardware, Speaker grills, and Instruction manual

Pioneer TS-A1685R A Series 6 1/2 Inch 350 Watt 4-Way Speaker System
    New materials
  • To create new A-Series speakers, various materials were combined to create extra lightness and rigidity to produce outstanding sensitivity while remaining very clear. The A-series speakers feature a multilayer mica matrix cone where a surface containing mica properly maintains the cone’s superior rigidity making them light and water resistant.

  • Tweeters and Midrange
  • A-Series speakers have a smooth off-axis response, they feature a soft dome tweeter that utilizes a wave guide. This wave guide design ensures mid and high frequencies that emit in a uniform and wide dispersion patter. This results in a smooth response both on and off axis. The wave guide is combined with newly developed tweeter that disperses sound more widely providing listeners with the best sound possible under all conditions.

  • Oversized Cone
  • The cone is 14% larger that cones on conventional 6-1/2 inch speakers yet they will fit in the exact same cutout.

  • Features
  • Lightweight elastic polymer surround for high sensitivity
  • Smooth off-axis response
  • Heat-resistant voice coil wire for heat dissipation and durability to withstand high input power
  • New grille design
  • Multilayer Mica Matrix cone material
  • Elastic Polymer speaker surround
  • Soft Dome tweeters with Wave Guide for increased sensitivity
  • 4 ohms impedance
  • Includes protective speaker grilles
  • Frequency response: 34-30,000 Hz
  • Mounting depth: 2-1/8"
  • Cutout diameter: 5-5/8"
  • Sensitivity: 91dB

Technical Specifications

Manufacturer Pioneer
Part Number TS-A1685R
Speaker Size 6 1/2 inch
Speaker system type Component - 2 way
Frequency Response 34 - 30,000 Hz
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS 60 Watts
Power Handling Peak 350 Watts
Sensitivity 91dB
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Mounting Depth $2.13
Color Black
Warranty 1 Year
UPC Code 884938187510
