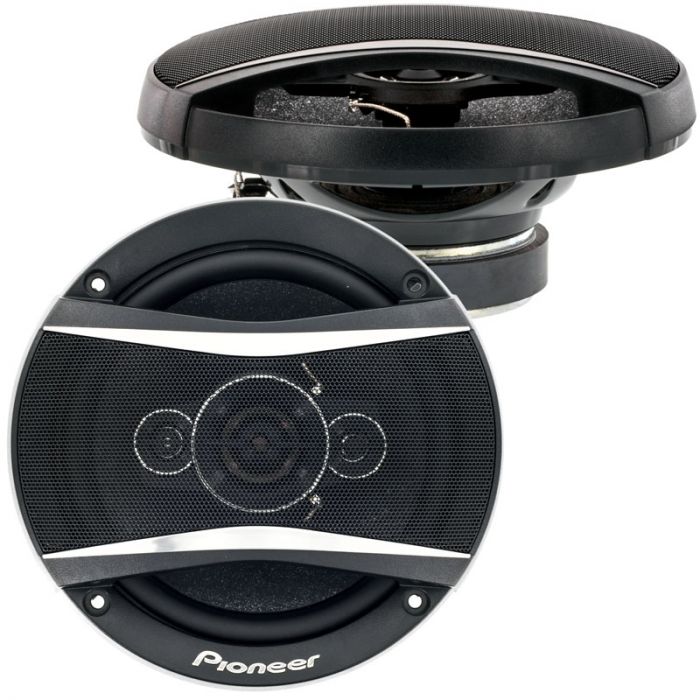

Pioneer TS-A1686R 4-Way 6-1/2" inch car speakers

Pioneer TS-A1686R 4-Way 6-1/2" inch car speakers

Pioneer TS-A1686R 4-Way 6-1/2" inch car speakers - Main

More Views

Pioneer
Free Shipping on orders $99+

Overall Rating 5 (Based on 1 reviews)

Pioneer TS-A1686R Product Highlights

  • Oversized 6-1/2" speakers
  • Designed to fit 5-5/8 inch openings
  • Multilayer Mica Matrix Cone Design for clear sound
  • 350 Watts Max Power (60 Watts Nominal)
  • 3/4" PET Dome tweeter
  • Frequency Response - 32 - 38000 Hz
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Pair of 6-1/2" speakers, Pair of speaker grills, Mounting Screws and Instruction manual

    Next generation
  • To improve on an already great design is no easy feat. However Pioneer has improved on their legendary TS-A series speakers with improved sound quality while maintaining their exceptional price. The new an improved design brings more life to the bass with its improved dynamic range.

Pioneer TS-A1686R 4-Way 6-1/2" inch car speakers
    Features:
  • Oversized 6-1/2" Woofer with strontium ferrite magnet for precision bass
  • Designed to fit 5-5/8 inch openings
  • Integrated 4-Way design with super and ultra tweeters
  • Multi-Layer Mica Matrix woofer cone for optimum sound reproduction and responsiveness
  • PET dome tweeters with Neodymium magnets provide solid vocals
  • Lightweight elastic polymer surround for high sensitivity
  • Heat-resistant voice coil wire for heat dissipation and durability to withstand high input power
  • Smooth off-axis response
  • Passive Crossover Network
  • Cooling basket with air vent for increased cooling to process improved power handling
  • Spider design incorporates the same material used in the PRS series of high-end component speakers for stiffer suspension and more accurate response

  • Power Handling Max
  • Max power: 350 watts

  • Power Handling RMS
  • RMS Power: 60 watts

  • Quick Specs
  • Frequency response: 32 Hz to 38 kHz
  • Sensitivity: 91 dB
  • Impedance: 4 ohms
  • Type: 4-Way
  • Crossover frequency: 4.5 KHz

  • Dimensions
  • Speaker Cut-out Size: 5-5/8"
  • Mounting Depth: 2-1/8"

Technical Specifications

Manufacturer Pioneer
Part Number TS-A1686R
Speaker Size 6 1/2 inch
Speaker system type 4 - way
Frequency Response 32 Hz - 38 kHz
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS 60 Watts
Power Handling Peak 350 Watts
Sensitivity 91 dB
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Mounting Depth $2.13
Color Black
Warranty 1 Year
UPC Code 884938311472

Customer Reviews

Great Speakers
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I bought these as a temporary fix for having no speakers in my 2001 Jeep Cherokee sport. And I have to say, these are very high quality. Good bass, and just a little too much treble, but I fixed that with an equalizer. Overall, a very good buy and I would recommend. (Posted on 12/25/2017)
