Discontinued - Pioneer TS-A1702C A Series 6.75 Inch 230 Watt Component Speaker Package

Discontinued - Pioneer TS-A1702C A Series 6.75 Inch 230 Watt Component Speaker Package

Discontinued - Pioneer TS-A1702C A Series 6.75 Inch 230 Watt Component Speaker Package

More Views

Pioneer
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pioneer TS-A1702C Product Highlights

Discontinued - Pioneer TS-A1702C A Series 6.75 Inch 230 Watt Component Speaker Package
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Grille

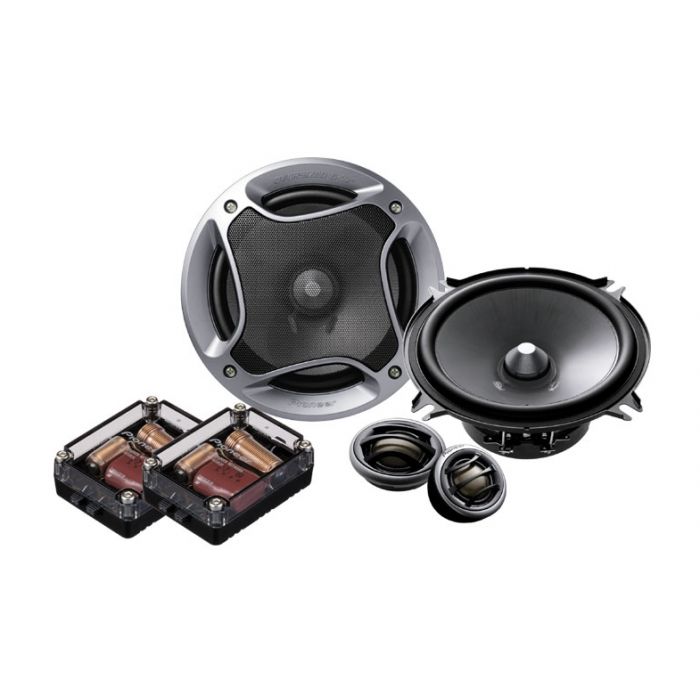

Pioneer TS-A1702C A Series 6.75 Inch 230 Watt Component Speaker Package
  • Intro
  • Composite IMPP Cone with Interlaced Aramid Fiber: With long aramid fibers interlacing together inside, this IMPP cone design provides the strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound character with midrange depth that conventional IMPP cones cannot match.
  • Fits 6"x8" Applications: The included 6"x8" adapter allows this component set to also be used in many Ford and Mazda vehicles that feature a 6"x8" speaker application size.

  • Features
  • Woofer Cone Material: Composite IMPP Cone with Interlaced Aramid Fiber
  • Surround: Butyl Rubber for Smoother response
  • Voice Coil Bobbin: Glass-Imide
  • Voice Coil Wire: OFC Copper
  • Damper: Aramid Fiber
  • Mid-Range: 3/4" Soft Dome
  • Tweeter: 7/8" Soft Dome with Magnetic Fluid and Neodymium Magnet
  • Basket Design: Full Depth Basket for Rich Bass Response
  • Built-in Passive Crossover: Outboard Crossover with -12dB/Oct. LPF/HPF
  • Speaker Grille: Included
  • Custom-Fit Basket: 6x8 and Shallow Mount Adapters Included
  • Special: Surface (Angled), Flush and Invisible Tweeter Mounting

  • Specifications
  • Watts MAX. Music Power: 230 Watts
  • Watts Nominal Power Handling: 50 Watts
  • Frequency Response: 31 Hz to 35 kHz
  • Sensitivity (1W/1m): 90 dB
  • Ohm Rating: 4 ohm
  • Mounting Depth: 2-1/2" (62.5 mm)
  • Cut-out Dimensions: 5-1/2" (139 mm)

Technical Specifications

Manufacturer Pioneer
Part Number TS-A1702C
Speaker Size 6 3/4 inch
Speaker system type No
Frequency Response No
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS Up to 300 watts
Power Handling Peak No
Sensitivity No
FS N/A
QES N/A
QMS N/A
QTS N/A
RE N/A
VAS N/A
Xmax (millimeters) No
Mounting Depth No
Color Black
Warranty 1 Year
UPC Code No
