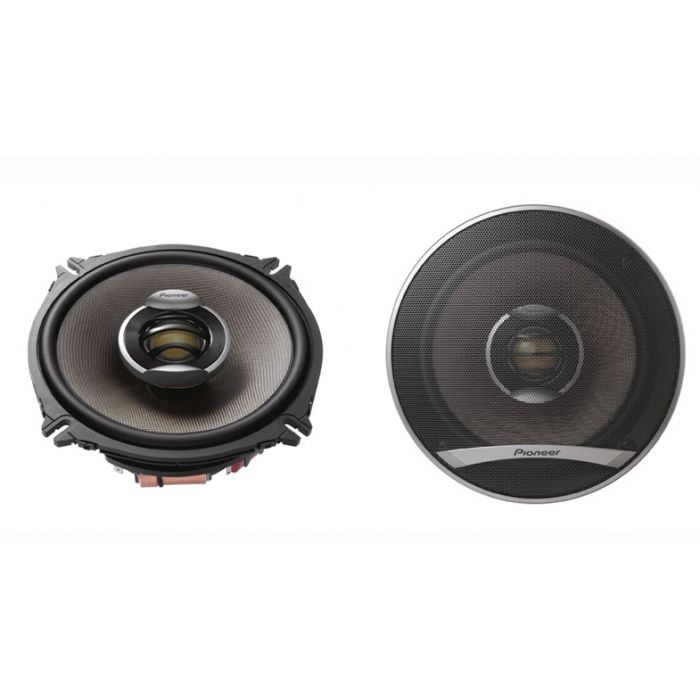

Pioneer TS-D1702R D Series 6 3/4 Inch 2 Way 280 Watt Speakers

Pioneer TS-D1702R D Series 6 3/4 Inch 2 Way 280 Watt Speakers

Pioneer TS-D1702R D Series 6 3/4 Inch 2 Way 280 Watt Speakers

More Views

Pioneer
Free Shipping on orders $99+

Overall Rating 5 (Based on 1 reviews)

Pioneer TS-D1702R Product Highlights

  • 6 3/4 Inch 2 Way Car Speakers
  • 280 Watts Max Power (60 Watts Nominal)
  • Revolutionary Basalt Fiber IMX Speaker Cones
  • High-Quality Crossover Network
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Two coaxial speakers, Mounting hardware, Speaker grills, and Instruction manual

Pioneer TS-D1702R D Series 6 3/4 Inch 2 Way 280 Watt Speakers
    Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone
  • To create new D-Series speakers, Pioneer developed the industry’s first basalt fiber made from natural rock interwoven with aramid fiber. Used in the surface layer, this Aramid/Basalt Fiber material is highly rigid and better absorbent, enhancing stability and maintaining integrity throughout a wide temperature range.

  • Rear Chamber Tweeter Enclosure
  • D-Series speakers feature an exclusive rear chamber tweeter enclosure that we first used in our famed PRS speakers. It extends mid-range frequency for improved vocal imaging and staging.

  • High-Quality Crossover
  • The built-in -12dB/Octave HPF and LPF crossover improves the transition from mid to high frequency, for a smoother mid-range to tweeter response. Audiophile-grade capacitors and inductors are used, and all components are encased in a clear acrylic cover for protection.

  • Smooth Off-Axis Response
  • Optimal Choice of Tweeter Diaphragm Shapes
  • Wave Guides control sound dispersion to make sound stage wider in the car

  • Lower Crossover Frequency
  • Large-Sized Tweeter Diaphragm (3/4" diameter)
  • Rear Chamber
  • Light Weight Soft-Dome Diaphragm
  • High-Quality Passive Crossover Network (Woofer, LPF: -6 dB; Tweeter, HPF: -12 dB)

  • Low Distortion
  • Thick Woofer Basket
  • Large-Sized Woofer Magnet
  • Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone

  • Specifications
  • Sensitivity: 87.5 dB at 1 watt
  • Frequency Response: 35 - 32k Hz
  • RMS Power Range (Watts): 2 - 60
  • Peak Power Handling (Watts): 280
  • Impedance (Ohms): 4
  • Top-mount Depth (Inches): 2 5/8
  • Bottom-mount Depth (Inches): N/A

Technical Specifications

Manufacturer Pioneer
Part Number TS-D1702R
Speaker Size 6 3/4 inch
Speaker system type 2 - way Coaxial
Frequency Response 30 - 32,000 Hz
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS 60 Watts
Power Handling Peak 280 watts
Sensitivity 88 dB
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Mounting Depth $2.50
Color Black
Warranty 1 Year
UPC Code 884938107471

Customer Reviews

QUALITY SPEAKERS
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
BOUGHT THESE TO REPLACED THE FACTORY HD BOOM AUDIO SPEAKERS ON MY BAGGER. THEY ARE NICE THEY ROCK OUT GOOD AND ARE AFFORDABLE. CANT BEAT THEM WILL BUY AGAIN. (Posted on 5/2/2016)
