DISCONTINUED - Pioneer TS-D1720C D Series 6 3/4 Inch 260 Watt Component Speaker Package

DISCONTINUED - Pioneer TS-D1720C D Series 6 3/4 Inch 260 Watt Component Speaker Package

Pioneer TS-D1720C D Series 6 3/4 Inch 260 Watt Component Speaker Package

More Views

Item sku:28154
Pioneer

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Pioneer TS-D1720C Product Highlights

  • Complete component speaker system
  • Rear Chamber Tweeter Design
  • Woofer Fiber Composite Cone Cone Material
  • Audiophile-Grade Built-in Passive Crossover

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

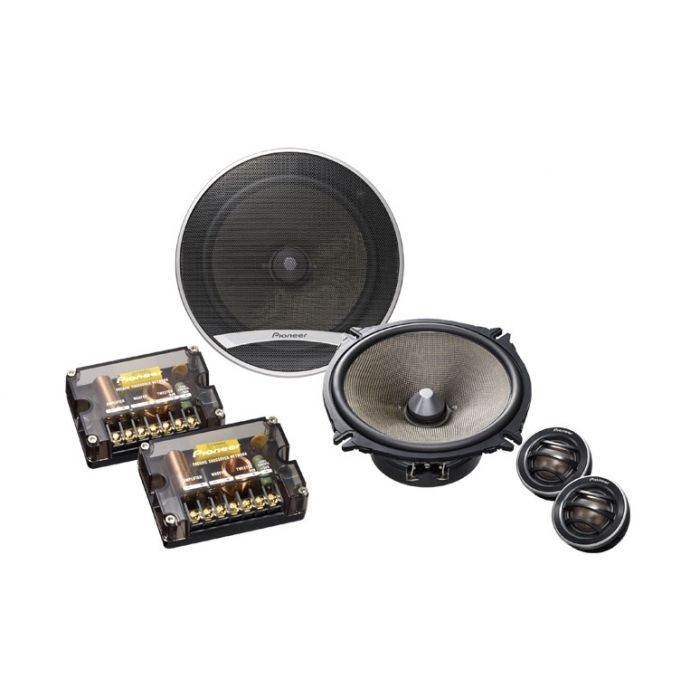

Unit includes: Two woofers, Two tweeters, Two crossover networks, Mounting hardware, Speaker grills, and Instruction manual

Pioneer TS-D1720C D Series 6 3/4 Inch 260 Watt Component Speaker Package
    Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone
  • To create new D-Series speakers, Pioneer developed the industry‚Äôs first basalt fiber made from natural rock interwoven with aramid fiber. Used in the surface layer, this Aramid/Basalt Fiber material is highly rigid and better absorbent, enhancing stability and maintaining integrity throughout a wide temperature range.

  • Rear Chamber Tweeter Enclosure
  • D-Series speakers feature an exclusive rear chamber tweeter enclosure that we first used in our famed PRS speakers. It extends mid-range frequency for improved vocal imaging and staging.

  • High-Quality Crossover
  • The built-in -12dB/Octave HPF and LPF crossover improves the transition from mid to high frequency, for a smoother mid-range to tweeter response. Audiophile-grade capacitors and inductors are used, and all components are encased in a clear acrylic cover for protection.

  • Smooth Off-Axis Response
  • Optimal Choice of Tweeter Diaphragm Shapes
  • Wave Guides control sound dispersion to make sound stage wider in the car

  • Lower Crossover Frequency
  • Large-Sized Tweeter Diaphragm (3/4" diameter)
  • Rear Chamber
  • Light Weight Soft-Dome Diaphragm
  • High-Quality Passive Crossover Network (Woofer, LPF: -6 dB; Tweeter, HPF: -12 dB)

  • Low Distortion
  • Thick Woofer Basket
  • Large-Sized Woofer Magnet
  • Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone

  • Fits 6"x8" Applications
  • The included 6"x8" adapter allows this component set to also be used in many Ford and Mazda vehicles that feature a 6"x8" speaker application size.

  • Features
  • Woofer Cone Material: Dual-Layer IMX Aramid/Basalt Fiber Composite Cone
  • Surround: Butyl Rubber for Smoother Response
  • Voice Coil Bobbin: Glass-Imide
  • Voice Coil Wire: OFC Copper
  • Damper: Aramid Fiber
  • Copper Ring: OFC Copper
  • Tweeter: 1-1/8" Soft Dome with Magnetic Fluid and Neodymium Magnet
  • Rear Chamber Tweeter Design: Rear Chamber Design for Lower Crossover Frequency
  • Basket Design: Full Depth Basket for Rich Bass Response
  • Built-in Passive Crossover: Audiophile-Grade Outboard with -12dB/Oct. LPF/HPF
  • Speaker Grille: Included
  • Custom-Fit Basket: 6x8 and Shallow Mount Adapters Included
  • Special: Surface (Angled), Flush and Invisible Tweeter Mounting

  • Specifications
  • Watts MAX. Music Power: 260 Watts
  • Watts Nominal Power Handling: 60 Watts
  • Frequency Response: 30 Hz to 33 kHz
  • Sensitivity (1W/1m): 88 dB
  • Ohm Rating: 4
  • Mounting Depth: 2-1/2" (64.5 mm)
  • Cut-out Dimensions: 5-5/8" (144 mm)

Technical Specifications

Manufacturer Pioneer
Part Number TS-D1720C
Speaker Size 6 3/4 inch
Speaker system type No
Frequency Response No
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS Up to 300 watts
Power Handling Peak No
Sensitivity No
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Mounting Depth No
Color Black
Warranty 1 Year
UPC Code No

Customer Reviews

Pioneer faithful
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I am a faithful Pioneer customer since the mid 1970's. As for your company great products ann prices. Fast shipping and will definitely refer customers and friends. would like to order another set of speakers. (Posted on 3/18/2015)
