Pioneer TS-D6802R D Series 6x8 Inch 2 Way Coaxial 260 Watt Speakers

Pioneer TS-D6802R D Series 6x8 Inch 2 Way Coaxial 260 Watt Speakers

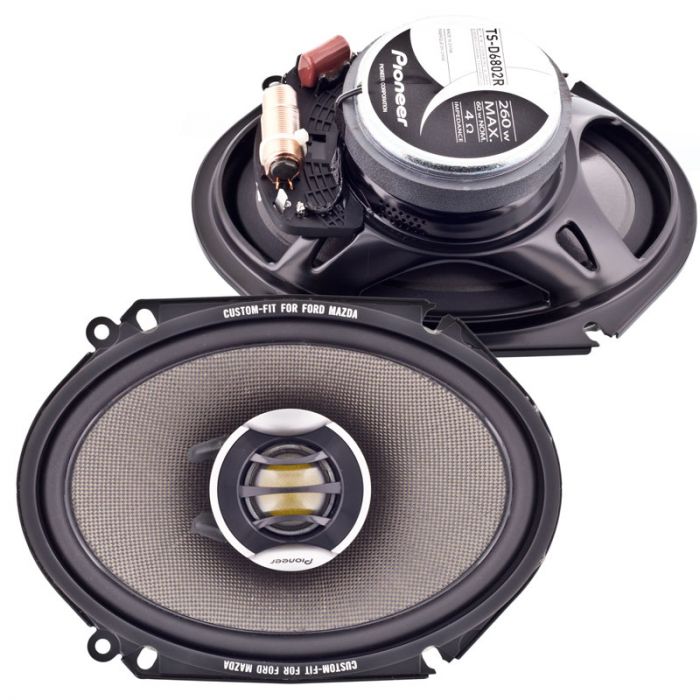

Pioneer TS-D6802R D Series 6 x 8 Inch car speakers - Main

More Views

Item sku:TS-D6802R
Pioneer

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Pioneer TS-D6802R Product Highlights

  • 6 x 8 Inch 2 Way Coaxial car speaker system
  • 260 Watts Max Power (60 Watts Nominal)
  • Revolutionary Basalt Fiber IMX Speaker Cones Provide Strength and Durability for Amazing Sound
  • High-Quality Crossover Network

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Two 6" x 8" speakers, Mounting hardware, Wire pigtail, and Instruction manual

Pioneer TS-D6802R D Series 6x8 Inch 2 Way Coaxial 260 Watt Speakers features:
    Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone

    To create new D-Series speakers, Pioneer developed the industry’s first basalt fiber made from natural rock interwoven with aramid fiber. Used in the surface layer, this Aramid/Basalt Fiber material is highly rigid and better absorbent, enhancing stability and maintaining integrity throughout a wide temperature range.


    Rear Chamber Tweeter Enclosure

    D-Series speakers feature an exclusive rear chamber tweeter enclosure that we first used in our famed PRS speakers. It extends mid-range frequency for improved vocal imaging and staging.


    High-Quality Crossover

    The built-in -12dB/Octave HPF and LPF crossover improves the transition from mid to high frequency, for a smoother mid-range to tweeter response. Audiophile-grade capacitors and inductors are used, and all components are encased in a clear acrylic cover for protection.


    Smooth Off-Axis Response
  • Optimal Choice of Tweeter Diaphragm Shapes
  • Wave Guides control sound dispersion to make sound stage wider in the car

  • Lower Crossover Frequency
  • Large-Sized Tweeter Diaphragm (3/4" diameter)
  • Rear Chamber
  • Light Weight Soft-Dome Diaphragm
  • High-Quality Passive Crossover Network (Woofer, LPF: -6 dB; Tweeter, HPF: -12 dB)

  • Low Distortion
  • Thick Woofer Basket
  • Large-Sized Woofer Magnet
  • Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone

  • Features
  • Woofer Cone Material: Dual-Layer IMX Aramid/Basalt Fiber Composite Cone
  • Surround: Butyl Rubber for Smoother Response
  • Voice Coil Bobbin: Glass-Imide
  • Voice Coil Wire: OFC Copper
  • Damper: Aramid Fiber
  • Tweeter: 1-1/8" Soft Dome with Magnetic Fluid and Neodymium Magnet
  • Rear Chamber Tweeter Design: Rear Chamber Design for Lower Crossover Frequency
  • Basket Design: Full Depth Basket for Rich Bass Response
  • Wave Guides: Wave Guides For Dispersion Control
  • Built-in Passive Crossover: -6dB/Oct. LPF, -12dB/Oct. HPF
  • Custom-Fit Basket: Custom Fit for Ford and Mazda

  • Specifications
  • Watts MAX. Music Power: 260 Watts
  • Watts Nominal Power Handling: 60 Watts
  • Frequency Response: 30 Hz to 32 kHz
  • Sensitivity (1W/1m): 88 dB
  • Ohm Rating: 4
  • Mounting Depth: 2-3/4" (65.4 mm)
  • Cut-out Dimensions: 7-1/2" x 5-1/4" (191 mm x 133 mm)

Technical Specifications

Manufacturer Pioneer
Part Number TS-D6802R
Speaker Size 6 x 8 inch
Speaker system type Coaxial - 2 way
Frequency Response 30 - 32,000 Hz
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS 100 Watts
Power Handling Peak 260 Watts
Sensitivity 88 dB
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Mounting Depth $2.75
Color Black
Warranty 1 Year
UPC Code 012562881850
