DISCONTINUED - Pioneer TS-W2502D2 10" Champion Series Pro Subwoofer With 3000 Watts Max Power - Dual 2 ohm

DISCONTINUED - Pioneer TS-W2502D2 10" Champion Series Pro Subwoofer With 3000 Watts Max Power - Dual 2 ohm

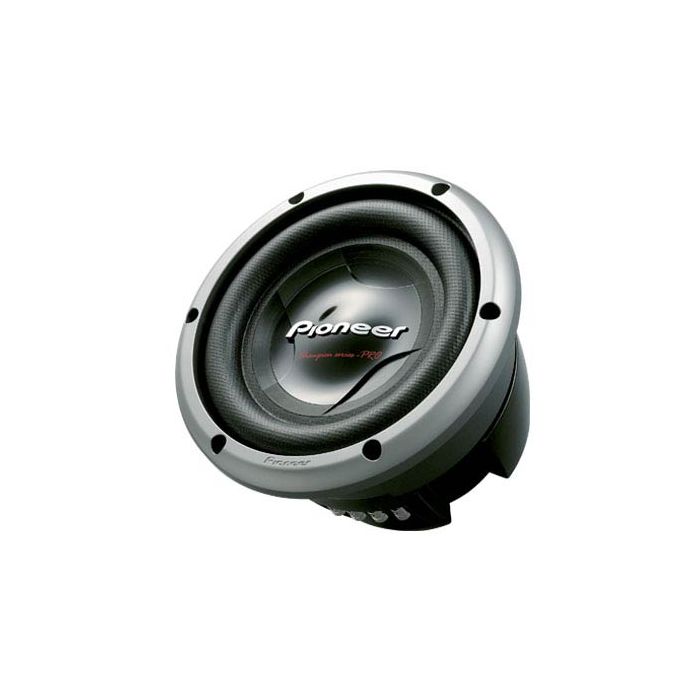

Pioneer TS-W2502D2 10" Champion Series Pro Subwoofer With 3000 Watts Max Power - Front view

More Views

Pioneer
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pioneer TSW2502D2 Product Highlights

  • 10" Subwoofer with dual 2 ohm voicecoil
  • 3,000 Watt maximum power handling
  • Double Stacked 85oz magnets for higher power and SPL
  • Sensitivity: 89 dB @ 1Watt / 1meter
  • Mounting depth: 6 5/8"
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Pro subwoofer and Instruction manual

Pioneer TS-W2502D2 10" Champion Series Pro Subwoofer With 3500 Watts Max Power features:
  • 10" Subwoofer with dual 2 ohm voicecoil, can be run as a dual voice coil sub or run in series to make it a 4 ohm, or parallel for 1 ohm
  • 3,000 Watt maximum power handling
  • 800 Watt nominal continuous power handling RMS
  • Double Stacked 85oz magnets for higher power and SPL
  • 3-Layer step up fiber radial surround for long excursion with superior control made out of urethane that prevents flexing at high volume levels
  • Cast aluminum basket for extra rigidity and low distortion
  • 6-layer aluminum voice coil for high temperature and power handling
  • Air suspension system allows for smaller that normal enclosures
  • Impedance: Dual 2Ω
  • Vented pole piece
  • Silver spring compression terminal
  • 10" interlaced basalt/carbon fiber reinforced IMPP cone woofer
  • Frequency response: 20 Hz–150 Hz
  • Sensitivity: 89 dB @ 1Watt / 1meter
  • Mounting depth: 6 5/8"

Technical Specifications

Manufacturer Pioneer
Part Number TSW2502D2
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 2 ohm
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) 11 mm
Sensitivity 89 dB
Frequency Response 20 - 150 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 751 - 1000 Watts
Power Handling Peak 3000 Watts
Shallow Mount Subwoofer No
Mounting Depth $6.63
Cutout Dimensions $9.31
Sealed Enclosure Recommended Size 0.6 cubic feet
Ported Enclosure Recommended Size 0.9 cubic feet
Color Black
Warranty 1 Year
UPC Code 012562940502
