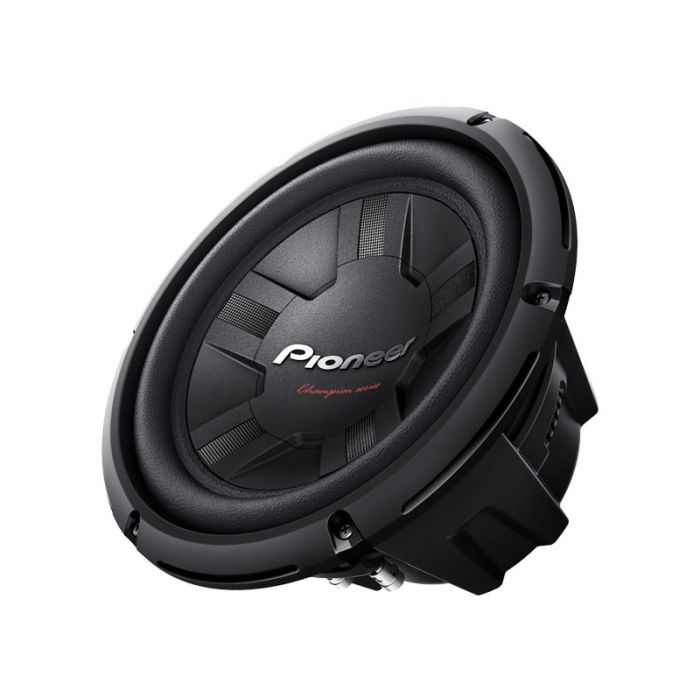

Pioneer TS-W261D4 10" 1,200-Watt Champion Series Component Subwoofer - Dual 4 ohm voice coils

Pioneer TS-W261D4 10" 1,200-Watt Champion Series Component Subwoofer - Dual 4 ohm voice coils

Pioneer TS-W261D4 10" 1,200-Watt Champion Series Component Subwoofer  - Dual 4 ohm voice coils

More Views

Pioneer
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Pioneer TSW261D4 Product Highlights

  • 10" Subwoofer with dual 4 ohm voice coilss
  • 350 Watt nominal continuous power handling RMS
  • Sensitivity: 93 dB @ 1Watt / 1meter
  • Mounting depth: 5 1/2"
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Sub-woofer, Gasket, and Instruction manual

Pioneer TS-W261D4 10" 1,200-Watt Champion Series Component Subwoofer - Dual 4 ohm voice coils features:
  • 10" Subwoofer with single 4 ohm voicecoil
  • 1,200 Watt maximum power handling
  • 350 Watt nominal continuous power handling RMS
  • 4-layer copper voice coils for high temperature and power handling
  • Dual-layer Elastic Polymer Surround improves longevity and lightness at high volume levels
  • 14% larger surface area compared to conventional sub-woofer cones for louder volume levels
  • Extra-tough suspension for high durability to withstand high input power
  • Subwoofer design allows for flexible in-car installation in a box or in a free-air type application
  • Impedance: 4Ω per voice coils, sub can be wired as 2ohm or 8ohm to get the most out of your amplifier, all speaker terminals are in one location for convenience
  • Vented pole piece
  • Binding posts for use with large gauge wire
  • Composite IMPP seamless cone
  • Frequency response: 20 Hz–250 Hz
  • Sensitivity: 93 dB @ 1Watt / 1meter
  • Mounting depth: 5-1/2"
  • Cutout diameter: 9-1/4"
  • Overall diameter: 10-7/8"
  • Recommended sealed volume: 0.8 cubic feet
  • Recommended ported volume: 1.1 cubic feet

Technical Specifications

Manufacturer Pioneer
Part Number TSW261D4
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 4 ohm
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) 4.7 mm
Sensitivity 93dB
Frequency Response 20 - 220 Hz
Sub enclosure type Banpass, Freeair, Ported / Vented, Sealed
Power Handling RMS 301 - 500 watts
Power Handling Peak 1200 watts
Shallow Mount Subwoofer No
Mounting Depth $5.25
Cutout Dimensions $9.25
Sealed Enclosure Recommended Size 0.8 cubic feet
Ported Enclosure Recommended Size 1.25 cubic feet
Color Black
Warranty 1 Year
UPC Code 884938188197
