Pioneer TS-W3003D4 12" Champion Series Pro Subwoofer With 2000 Watts Max Power - Dual 4 ohm

Pioneer TS-W3003D4 12" Champion Series Pro Subwoofer With 2000 Watts Max Power - Dual 4 ohm

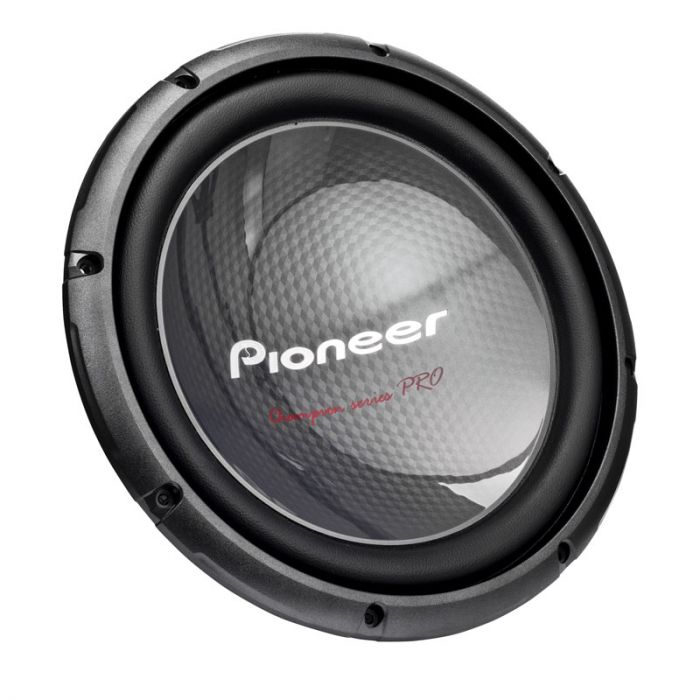

Pioneer TS-W3003D4 12" Champion Series Pro Car Subwoofer - Front

More Views

Item sku:TS-W3003D4
Pioneer

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Pioneer TS-W3003D4 Product Highlights

  • 12" Subwoofer with dual 4 ohm voicecoil
  • 2000 Watt maximum power handling
  • Double Stacked 110oz magnets for higher power and SPL
  • Sensitivity: 90 dB @ 1Watt / 1meter
  • Mounting depth: 7 1/2"

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Pro subwoofer and Instruction manual

Loud Bass

The newly redesigned Champion Series PRO subwoofers are built to produce loud and powerful bass. Designed for high power amplifiers, these subwoofers can handle 600 watts of continous power and are capable of handling 2000 watts peak!

Designed for you

The Champion subwoofers were also designed with installation flexibility in mind. These subwoofers can be used in enclosures as small as .85 cubic feet and enclosures up to 1.75 cubic feet for a personalized frequency response. The Champion Series Pro subwoofers are also available in 8 ohm and 2 ohm configurations for optimal amplifier loading

Simply a better subwoofer

All around the Champion Series Pro subwoofers have been improved, from the dual spider for better linearity, to the larger pole with larger wire for more accurate bass, a larger magnet for better bass these woofers are better.

Pioneer TS-W3003D4 12" Champion Series Pro Subwoofer With 2000 Watts Max Power features:
  • 12" Subwoofer with dual 4 ohm voicecoil, can be run as a dual voice coil sub or run in series to make it a 8 ohm, or parallel for 2 ohm
  • 2,000 Watt maximum power handling
  • 600 Watt nominal continuous power handling RMS
  • Double Stacked 110oz magnets for higher power and SPL
  • 3-Layer step up fiber radial surround for long excursion with superior control made out of urethane that prevents flexing at high volume levels
  • Cast aluminum basket for extra rigidity and low distortion
  • 6-layer aluminum voice coil for high temperature and power handling
  • Air suspension system allows for smaller that normal enclosures
  • Impedance: Dual 4Ω
  • Vented pole piece
  • Silver spring compression terminal
  • 12" interlaced basalt/carbon fiber reinforced IMPP cone woofer
  • Frequency response: 20 Hz–150 Hz
  • Sensitivity: 90 dB @ 1Watt / 1meter
  • Mounting depth: 7 1/2"

Technical Specifications

Manufacturer Pioneer
Part Number TS-W3003D4
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 4 ohm
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) 12.9 mm
Sensitivity 90dB
Frequency Response 20 - 150 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 1000 - 1500 Watts
Power Handling Peak 2000 Watts
Shallow Mount Subwoofer No
Mounting Depth $7.50
Cutout Dimensions $10.94
Sealed Enclosure Recommended Size 0.8 cubic feet
Ported Enclosure Recommended Size 1.2 cubic feet
Color Black
Warranty 1 Year
UPC Code 884938234610
