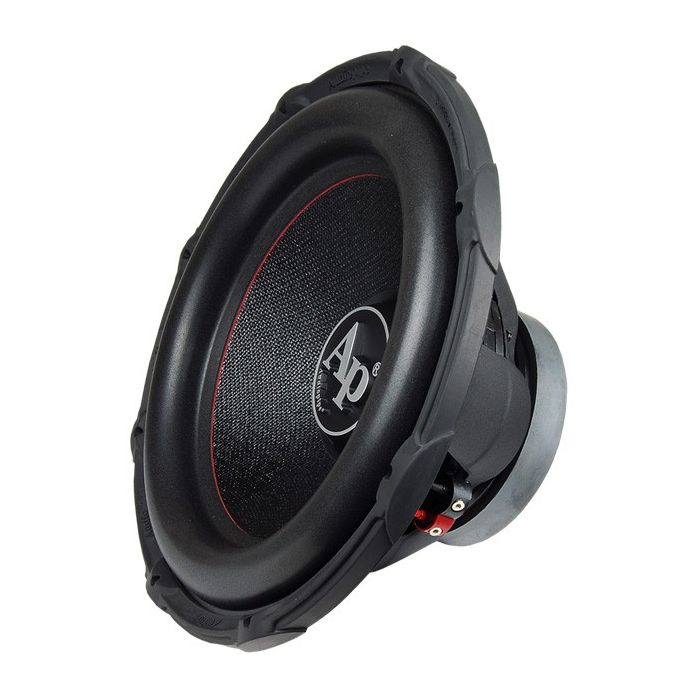

Audiopipe TXX-BD1-15 15" Single Magnet 1600 Watt Subwoofer - Dual 4 Ohm

Audiopipe TXX-BD1-15 15" Single Magnet 1600 Watt Subwoofer - Dual 4 Ohm

Audiopipe TXXBD115 Audiopipe 1600 Watt 15 Inches Car Subwoofer - Main

More Views

Audiopipe
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Audiopipe TXX-BD1-15 Product Highlights

  • 15" Dual 4 ohm TXX-BD1 Series Subwoofer
  • 75 Ounce Dual stacked magnet design for extreme excursion
  • Woven fiber cone with foam surround
  • Single ventilation system for efficient cooling
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

The Unit Includes: Car subwoofer , mounting hardware and Instruction manual.

    Audiopipe TXX-BD1-15 15" Single Magnet 1600 Watt Subwoofer - Dual 4 Ohm

    Features:
    • 15" Dual 4 ohm TXX-BD1 Series Subwoofer
    • 75 Ounce Dual stacked magnet design for extreme excursion
    • 3 inch 4-layer voice coil
    • Woven fiber cone with foam surround
    • 8 AWG Screw Terminal
    • Vented pole piece for thermal efficient system


    Power Handling Max:
    • Maximum Power: 1600 Watts


    Power Handling RMS:
    • 800 Watts nominal continuous power handling RMS


    Quick Specs
    • Nominal Impedance: Single 4 -Ohm
    • Frequency Response: 25 - 800 Hz
    • Nominal Impedance: Dual 4 Ohm
    • Sensitivity: 90dB /watt at 1m


    Dimensions:
    • Mounting depth: 7 inches
    • Cutout diameter: 14-3/8 inches

Technical Specifications

Manufacturer Audiopipe
Part Number TXX-BD1-15
Driver Size 15 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 4 ohm
FS 30
QES 0.53
QMS 2.5
QTS 0.47
RE 3.6
VAS 165 L
Xmax (millimeters) 8 mm
Sensitivity 90 dB
Frequency Response 25 Hz - 800 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 751 - 1000 Watts
Power Handling Peak 1600 Watts
Shallow Mount Subwoofer No
Mounting Depth $7.00
Cutout Dimensions $14.33
Sealed Enclosure Recommended Size 2.25 ft3
Ported Enclosure Recommended Size 2.5 ft3
Color Black
Warranty 1 Year
UPC Code 784644223444
