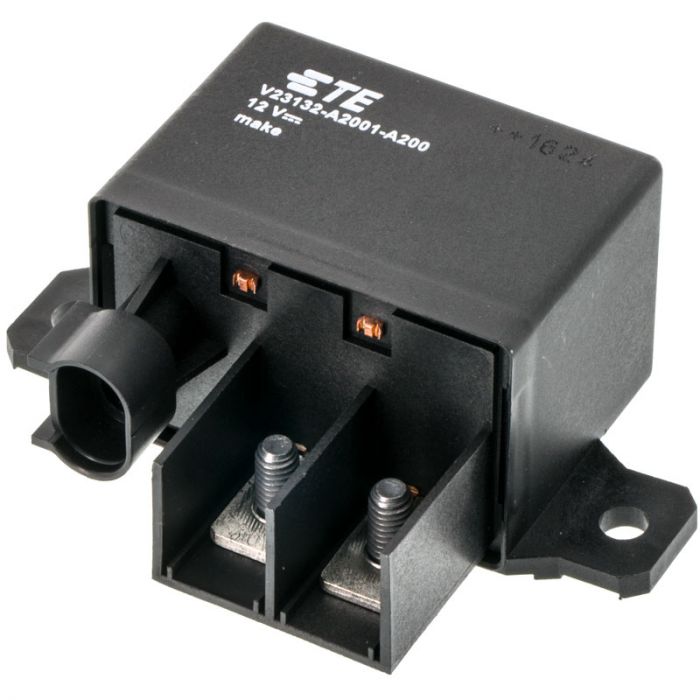

Tyco V23132-A2001-A200 130-Amp High Current Relay

Tyco V23132-A2001-A200 130-Amp High Current Relay

Tyco V23132-A2001-A200 130-Amp High Current Relay - Main

More Views

Item sku:V23132-A2001-A200
Tyco

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Tyco V23132-A2001-A200 Product Highlights

  • 12 or 24 Volt High current relay
  • 130 amp continuous rated contacts
  • 300 amp surge rated contacts
  • SPST - Single pole single throw
  • 12 Vdc rated coil with minimum 9 volt to trigger
  • IP54 rated

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 12 volt relay

Tyco V23132-A2001-A200 130-Amp High Current Relay

The Tyco V23232-D0001-X001 is a high current 12 Volt relay that is designed for large loads. This relay is commonly used in automotive electrical and security installations. It easily switches 130 amps of current and peaks of 300 amps with minimal draw on the coil of 275 milliamps @ 12Vdc. It features dual plastic mounting tabs and a plastic housing. Single Pole, Single throw for flexible installations and multiple uses such as accessory or electrical bus turn on.

    Features:
  • 12 or 24 Volt High current relay
  • 130 amp continuous rated contacts
  • 300 amp surge rated contacts
  • SPST - Single pole single throw
  • 12 Vdc rated coil with minimum 9 volt to trigger
  • Rated coil power: 3.3W
  • Compatible with most insulated and non insulated terminals and screw terminals
  • Normally open circuit design
  • Diode isolated coil to prevent damaging reverse feedback
  • Dimensions 3-7/8" (W) x 1-5/8" (D) x 2-5/8" (H) with terminals and tab
  • Mechanical Lifespan: 10,000,000 cycles
  • IP54 rated

Technical Specifications

Manufacturer Tyco
Part Number V23132-A2001-A200
Operation Voltage 12 - 15 volt
Relay type High Current
Current capacity 130 Amp
Pole switching type SPST (Single pole Single throw)
Tab type Removable Metal Tab
Waterproof ingress protection IP54 - Dust protected; Splashing of water
Warranty 1 Year
UPC Code No
