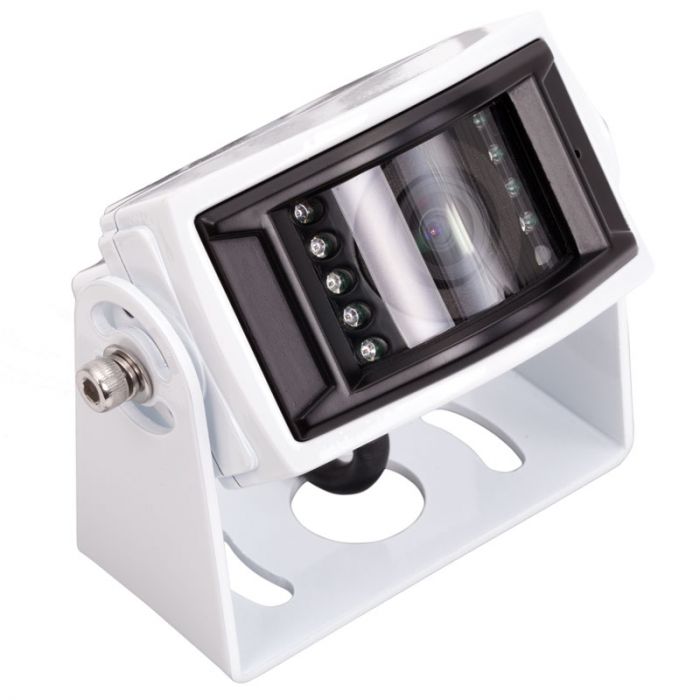

Audiovox Voyager VCCS155 1/4" CCD Surface Mount Reverse Back up camera

Audiovox Voyager VCCS155 1/4" CCD Surface Mount Reverse Back up camera

Audiovox Voyager VCCS155 Surface Mount Reverse Back up camera - Left side of camera

More Views

Item sku:VCCS155
Voyager

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Voyager VCCS155 Product Highlights

  • Designed to work with Audiovox Voyager camera systems
  • Surface mounted camera for mounting on an overhang or the back of a RV or commercial vehicle
  • High sensitive 1/4" HD color CCD image sensor
  • 9 - Built in LED's for night vision, see in complete darkness
  • Built in microphone so you can hear everything behind you
  • White aluminum housing that matches nearly every vehicle color

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Car camera, Stand mount, Mounting hardware, Bracket hardware, and Instruction manual

Increase safety while driving your RV with an Audiovox Voyager back up camera system. The VCCS155 CCD camera is designed to mount on the back of an RV and has built in IR LED's so that you can see at night and a built in microphone for audio. This camera offers a full 155 degree viewing angle meaning you can see everything behind you. The VCCS155 is IP69K rated so it is waterproof and dust resistant so it will offer years of use and you will not have to fear replacing it.

Audiovox Voyager VCCS155 Surface Mount Reverse Back up camera features:
  • Surface mounted camera for mounting on an overhang or the back of a RV or commercial vehicle
  • High sensitive 1/4" HD color CCD image sensor for excellent color and night capabilities
  • 9 - Built in LED's for night vision, see in complete darkness
  • Built in microphone so you can hear everything behind you
  • White aluminum housing that matches nearly every vehicle color
  • 75 degree verticle angle adjustment with 4 retaining screws so camera cannot vibrate free
  • Pixel resolution: 800 x 533
  • Corrosion resistant (ASTM B117)
  • Mini Illumination: .05 Lux
  • 155 degree viewing angle
  • Waterproof IP69K
  • 9 - 16 volt operation
  • Camera dimensions: 3-3/4" (Wide) x 2" (Deep) x 2" (H)

Technical Specifications

Manufacturer Voyager
Part Number VCCS155
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 160 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone Yes
Trigger wire Yes
Auto on/off Yes
Connector Type 4 Pin Connector
NTSC/PAL NTSC only
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color White
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
