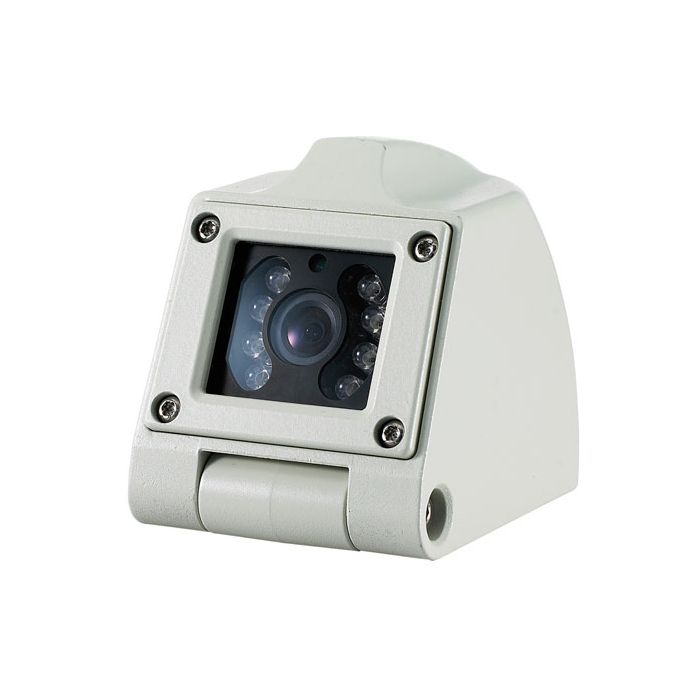

Boyo (Vision Tech) VTB500 Heavy Duty Bus, Truck, Van or RV Waterproof Camera with 1/3 inch Super Sensitive Color CCD Sensor

Boyo (Vision Tech) VTB500 Heavy Duty Bus, Truck, Van or RV Waterproof Camera with 1/3 inch Super Sensitive Color CCD Sensor

Boyo (Vision Tech) VTB500 Heavy Duty Bus, Truck, Van or RV Waterproof Camera with 1/3 inch Super Sensitive Color CCD Sensor

More Views

Boyo
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTB500 Product Highlights

  • Weatherproof and water resistant
  • Reverse and Non-Reverse switchable
  • Camera angle adjustable
  • Vibration free
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Cam

Boyo (Vision Tech) VTB500 Heavy Duty Bus, Truck, Van or RV Waterproof Camera with 1/3 inch Super Sensitive Color CCD Sensor
  • Reverse and Non-Reverse switchable
  • Weatherproof and water resistant (IP67 weatherproof)
  • 1/3" Super Sensitive Color CCD sensor
  • Excellent Auto White Balance
  • Excellent Back Light Compensation
  • Mirror image on/off by external switch
  • 15M IR Infrared beam distance
  • Wide range of power input tolerance (9.5VDC ~ 24VDC)
  • Reverse polarity input protection circuit built-in
  • Front view, inside view, rear view, side view (right/left)
  • Camera angle adjustable (max 30 deg.)
  • Vibration free

  • Model: VTB500
  • Image device: 1/3" Super sensitive color CCD sensor
  • TV System: NTSC
  • Effective pixcels: NTSC: 768(H) x 494(V) pixcels
  • Scanning system: 2:1 interlaced
  • Sync. system: Internal
  • Resolution: 520 TVL (day) / 540TVL (night)
  • Minimum illumination: 0.2 Lux at F2.0 w/o IR LED, 0Lux w/ IR LED
  • Microphone: No
  • Video output: 1.0vp-p, 75Ohm
  • S/N ratio: More than 50dB
  • White balance: Auto
  • Gain control: 6dB ~ 40dB Auto
  • Gamma correction: r=0.45
  • Smear effect: 0.005%
  • Operation current: 80,2011,mA ~ 190mA
  • Lens standard: 2.9mm Fixed Iris (120' AOV)
  • Power supply: DC12V
  • Operating Temp : -4 degrees F ~ 122 degrees F (-20 degrees C ~ + 50 degrees C)
  • Humidity: Within 90% RH
  • Measurement: 60(W) x 70.3(H) x 90(L)
  • Weight: 500g

  • Product Manual

  • VTB500 - Heavy Duty Bus Camera
  • VTB500A - Heavy Duty Bus Camera with Built-in MIC

Technical Specifications

Manufacturer Boyo
Part Number VTB500
Auto Dimming No
Camera Sensor type CCD
Back up camera type No
License Plate Camera Type No
Camera diameter No
Viewing Angle No
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type No
NTSC/PAL NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color White
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
