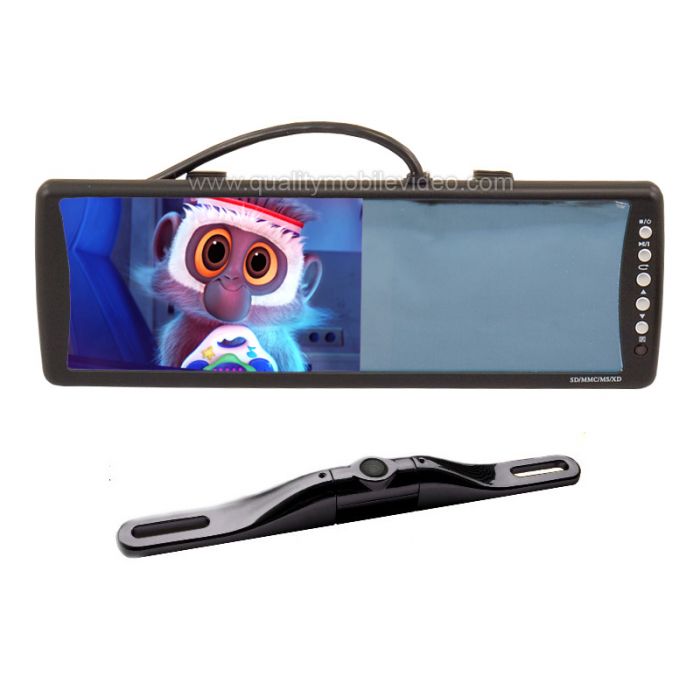

Back Up System Combo Kit - Boyo VTB702M 7 inch Rear View Mirror Monitor and VTL422C Zinc Metal Bar Black License Plate Back Up Camera

Back Up System Combo Kit - Boyo VTB702M 7 inch Rear View Mirror Monitor and VTL422C Zinc Metal Bar Black License Plate Back Up Camera

Back Up System Combo Kit - Boyo VTB702M 7 inch Rear View Mirror Monitor and VTL422C Zinc Metal Bar Black License Plate Back Up Camera

More Views

Item sku:49997
Boyo

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTB702M-VTL422C Product Highlights

  • 7" LCD Display
  • Dual Audio/Video Inputs
  • Clip On Mirror Allows for Universal Mounting
  • SD Card Slot Built In

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Remote Control

Boyo VTB702M 7 inch Rear View Mirror Monitor
  • Screen Size: 7" Color TFT
  • Resolution: 1440(W) x 234(H)
  • Includes Remote
  • 2 AV Input Select
  • Movie Player
  • Picture Viewer
  • MP3 Player
  • Audio Output
  • Clips onto existing rear view mirror
  • Memory Card Player
  • Supports SD Cards. Plays MP3, MP4, AVI, WMA, and JPEG files.
  • FM Modulator with stereo audio output (FM: 88.3MHz or 87.9MHz)
  • Auto Image on with reverse:Auto reverse wire will trigger AV2 input
  • SD Card Slot
  • System: PAL/NTSC
  • Nominal Voltage: 9-15V
  • Power Consumption: 9W Max
  • Operating Temperature: -20°C ~ +65°C

  • Product Manual


Unit includes: Connectors

Boyo VTL422C Zinc Metal Bar Type Black License Plate Camera
  • High sensitive 1/4" DSP Color CMOS built-in
  • 420 TVL Horizontal Resolution
  • Remarkable low Lux performance of 0.5 Lux at F2.0
  • Excellent Auto White Balance
  • Waterproof (IP67)
  • Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
  • Beautiful design & anti-scratch coating
  • Imager: 1/4" Color CMOS (PC1030)
  • Effective Pixels: NTSC : 656(H) x 492(V)
  • Horizontal resolution: 420 TV Lines
  • Total number of pixels: 320K
  • Min.Illumination: 0.5 Lux at F2.0
  • Current Consumption: 50mA, Max 300mA
  • Video output: RCA connector, 1.0Vp-p, 75ohm
  • White balance: Auto
  • Viewing Angle: 150 Degrees wide angle view
  • Power source: DC12V +/- 10%
  • Operating Temp: -4 degrees F ~ 122 degrees F ( -20 degrees C ~ + 50 degrees C )
  • Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80 degrees C )

  • Product Manual

Technical Specifications

Manufacturer Boyo
Part Number VTB702M-VTL422C
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1440 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 275 Nit
LCD back light type CCFL
Auto Dimming N/A
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers No
Stand Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 2 Audio Video Inputs
Wireless Remote Control Yes
Monitor Type Rearview mirror monitor
Mirror Mount Type Clip On
Back up camera type License Plate Camera
Options No
Product Options No
Homelink No Homelink transmitter
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CMOS
Camera diameter 6.35 mm
Viewing Angle 150 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Case included No
Connector Type RCA Cable
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 15 volt
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No

Write Your Own Review

You're reviewing: Back Up System Combo Kit - Boyo VTB702M 7 inch Rear View Mirror Monitor and VTL422C Zinc Metal Bar Black License Plate Back Up Camera

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Randy on Thursday, August 22, 2013

Question:

I saw the dual input feature. How much is a second camera?

Answers:

  • Posted by Salvador Diaz on Thursday, August 22, 2013

    Any camera can be used for the second input. Price depends on the camera selected.
