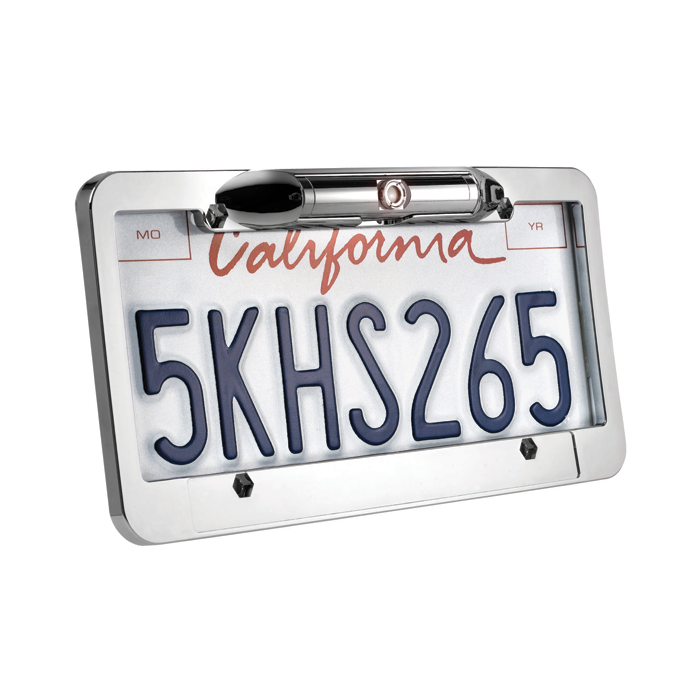

Boyo VTL100 Plastic Chrome angle license plate camera

Boyo VTL100 Plastic Chrome angle license plate camera

More Views

Item sku:40543

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTL100 Product Highlights

  • Reverse Image
  • Full Frame Camera
  • CCD Lens
  • Excellent Auto White Balance

Quality Mobile Video Advantage


Unit includes: License plate back up camera, Wiring harness, Mounting bolts, Caps, and Instruction manual

Boyo VTL100 Plastic Chrome angle license plate camera features:
  • License Plate Camera "Plastic in Chrome"
  • High sensitive 1/3" DSP Color CCD built-in
  • 380,2011, TVL Horizontal Resolution
  • Remarkable True Color reproduction
  • Remarkable low Lux performance of 0.3 Lux at F2.0
  • Excellent Auto White Balance
  • Waterproof(IP67) Reverse Image
  • Imager: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels NTSC : 512(H)X492(V)
  • Horizontal resolution: 380,2011, TV Lines
  • Total number of pixels: NTSC: 270K
  • Minimum Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Smear effect: 0.005%
  • Gamma correction: r = 0.45
  • White balance: Auto.2100'K - 9100'K
  • Gain control: Auto. 4dB - 30dB
  • Lens mount: 2.8mm Pinhole lens (130˚ D)
  • MTBF: 80,2011,000 hours
  • Power source: DC12V(Tolerance: 6V-35V)
  • Operating current: 90mA w/regulated power in
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 108X22 (Camera)
  • Weight(Approx.g): 400g

Instruction manual

Additional Information

Manufacturer Boyo
Part Number VTL100
Auto Dimming N/A
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 130 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Chrome
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
