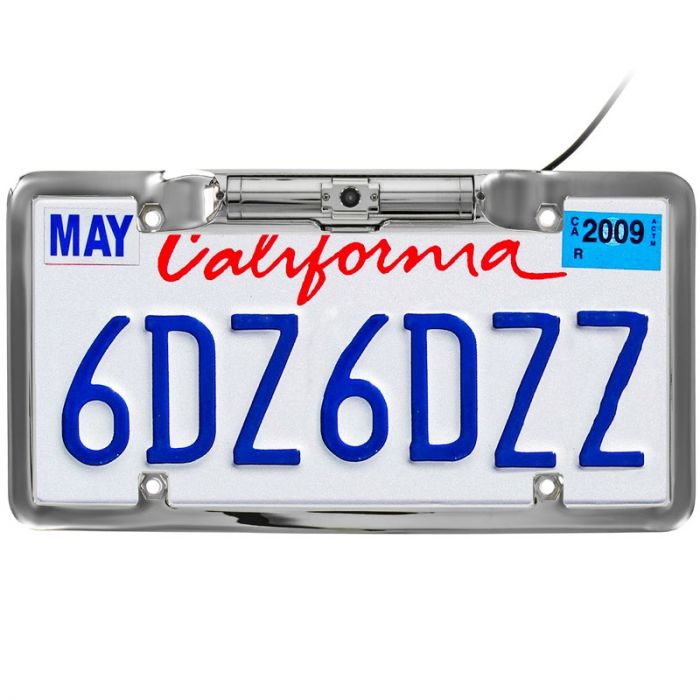

Boyo VTL200 License Plate Camera with 130 Viewing Angle CCD (Chrome)

Boyo VTL200 License Plate Camera with 130 Viewing Angle CCD (Chrome)

Boyo VTL200 License Plate Camera with 130 Viewing Angle CCD (Chrome)

More Views

Boyo
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTL200 Product Highlights

  • CCD Lens
  • Full Frame Camera
  • 130 Degree Wide Angle
  • Low Light Sensitive
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: License plate back up camera, Wiring harness, Mounting bolts, Bolt caps, and Instruction manual

Boyo VTL200 License Plate Camera with 130 Viewing Angle CCD (Chrome) features:
    • Imager: 1/3" DSP Color CCD, (High sensitive)
    • Effective Pixels: NTSC : 512(H)X492(V)
    • Horizontal resolution: 380,2011, TV Lines
    • Total number of pixels: NTSC: 270K
    • Min.Illumination: 0.3 Lux at F2.0
    • Synchronizing system: Internal
    • Scanning system: 2:1 Interlaced
    • Video output: 1Vp-p 75 ohm composite
    • S/N Ratio: More than 48dB
    • Electronic iris: 1/50,1/60-1/100,000 sec.
    • Smear effect: 0.005%
    • Gamma correction: r = 0.45
    • White balance: Auto.2100'K - 9100'K
    • Gain control: Auto. 4dB - 30dB
    • Lens mount: 2.8mm Pinhole lens (130˚ D)
    • MTBF: 80,2011,000 hours
    • Power source: DC12V(Tolerance: 6V-35V)
    • Operating current: 90mA w/regulated power in
    • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
    • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
    • Humidity: Within 90% RH
    • Measurement: Camera Size: 108X22 (Camera)
    • Weight(Approx.g): 500g

    Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTL200
Auto Dimming No
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 130 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Chrome
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 689076583169
