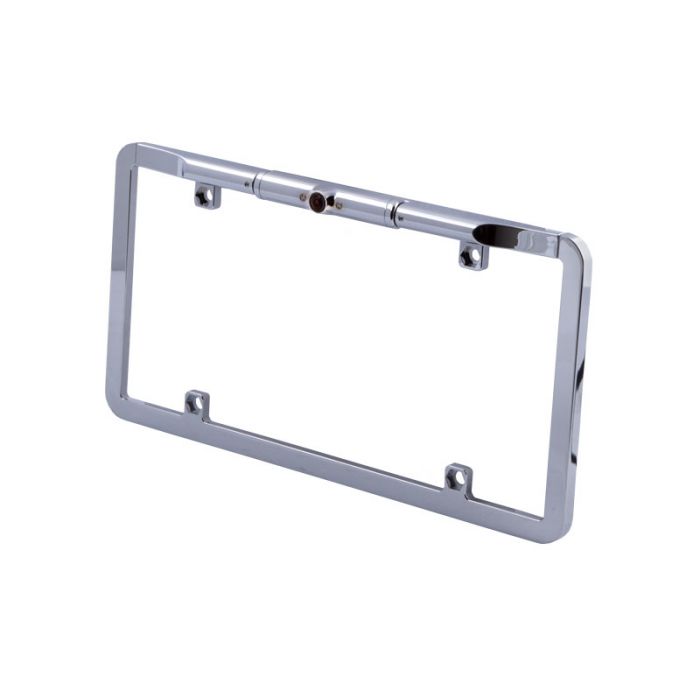

Boyo VTL275HD Ultra Slim Zinc Metal License Plate Camera (Chrome) CCD

Boyo VTL275HD Ultra Slim Zinc Metal License Plate Camera (Chrome) CCD

Boyo VTL275HD Ultra Slim Zinc Metal License Plate Camera (Chrome) CCD

More Views

Boyo
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTL275HD Product Highlights

  • Optional non-reverse image
  • 175° viewing angle
  • CCD Lens
  • Full Frame Camera
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: License plate back up camera, Mounting bolts, Bolt caps, and Instruction manual

Boyo VTL275 Ultra Slim Zinc Metal License Plate Camera (Chrome) CCD features:
  • High sensitive built-in 1/3" DSP color CCD
  • 520 TVL Horizontal Resolution
  • Remarkable true color reproduction
  • Remarkable low lux performance of 0.3 lux @ F2.0
  • Excellent auto white balance
  • Waterproof (IP67) reverse image
  • Optional non-reverse image with separate adapter cable
  • 175° viewing angle
  • Chrome
  • Imager: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels: NTSC : 768(H)X494(V)
  • Horizontal resolution: 520 TV Lines
  • Total number of pixels: NTSC: 380,2011,K
  • Min.Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Smear effect: 0.005%
  • Gamma correction: r = 0.45
  • White balance: Auto.2100'K - 9100'K
  • Gain control: Auto. 4dB - 30dB
  • Lens mount: 1.56mm Board Lens (175˚ D)
  • MTBF: 80,2011,000 hours
  • Power source: DC12V(Tolerance: 7V-24V)
  • Built-in transient impulse protection circuit
  • Operating current: 70mA w/regulated power in.
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 3.70(L) x 0.63(D) (Camera)
  • Weight (Approx.g): VTL275: 469.5g

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTL275HD
Auto Dimming No
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 175 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Chrome
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 689076243018
