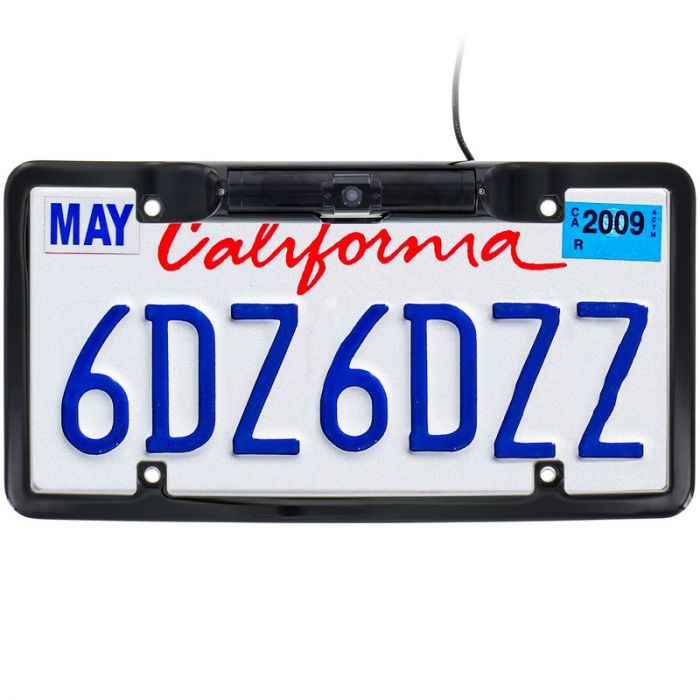

DISCONTINUED - Boyo VTL300 License Plate Camera with 130 Viewing Angle (Black) CCD

DISCONTINUED - Boyo VTL300 License Plate Camera with 130 Viewing Angle (Black) CCD

DISCONTINUED - Boyo VTL300 License Plate Camera with 130 Viewing Angle (Black) CCD

More Views

Item sku:15221
Boyo

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTL300 Product Highlights

  • 130° Wide Angle View
  • CCD Lens
  • Full Frame Camera
  • Tilting Ability

Quality Mobile Video Advantage

Overview

Unit includes: License plate camera, Mounting bolts, Bolt caps, and Instruction manual

Boyo VTL300 License Plate Camera with 130 Viewing Angle (Black) CCD features:
  • 130° wide angle view
  • Viewing angle is adjustable up & down
  • Super sensitive low lux image capture
  • Reverse image feature
  • 380,2011, TV lines horizontal resolution
  • High sensitivity 1/3" DSP color built-in CCD
  • Waterproof
  • Black
  • Imager: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels: NTSC : 512(H)X492(V)
  • Horizontal resolution: 380,2011, TV Lines
  • Total number of pixels: NTSC: 270K
  • Min.Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Smear effect: 0.005%
  • Gamma correction: r = 0.45
  • White balance: Auto.2100'K - 9100'K
  • Gain control: Auto. 4dB - 30dB
  • Lens mount: 2.8mm Pinhole lens (130˚ D)
  • MTBF: 80,2011,000 hours
  • Power source: DC12V(Tolerance: 6V-35V)
  • Operating current: 90mA w/regulated power in
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 108X22 (Camera)
  • Weight(Approx.g): 500g

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTL300
Auto Dimming No
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 130 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 689076583268
