DISCONTINUED - Boyo VTL400C License Plate Mount Bar Type Back Up Camera (Bar Type in Chrome)

DISCONTINUED - Boyo VTL400C License Plate Mount Bar Type Back Up Camera (Bar Type in Chrome)

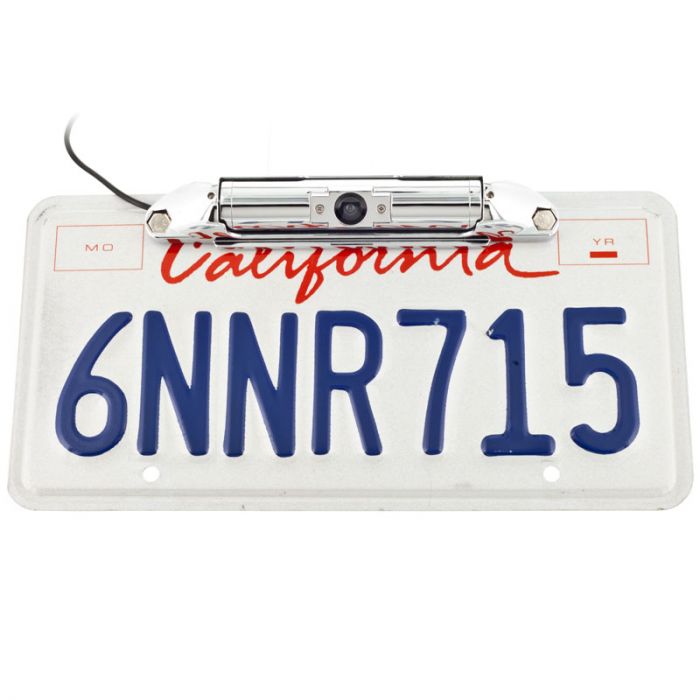

Boyo VTL400C Chrome License plate backup camera - Front on plate

More Views

Boyo
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Boyo VTL400C Product Highlights

  • 170º wide viewing angle
  • Beautiful design & anti-scratch coating
  • CMOS Lens
  • Low Light Sensitive
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Camera, Cables and Mounting hardware

Boyo VTL400C Bar Type License Plate Camera (Bar Type in Chrome)
  • High sensitive 1/4" DSP Color CMOS
  • 380,2011, TVL Horizontal Resolution
  • Remarkable low Lux performance of 0.3 Lux at F2.0
  • 1.43mm lens 170 Degrees wide view angle
  • Waterproof(IP67) Reverse Image
  • 170º wide viewing angle
  • Adjustable up/down
  • Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
  • Beautiful design & anti-scratch coating
Specifications
  • Imager: 1/3" DSP Color CCD
  • Effective Pixels: NTSC - 512(H) X 582(V)
  • Horizontal resolution: 380,2011, TV Lines
  • Total number of pixels: 270K
  • Min. Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50 to 1/1000 sec
  • White balance: Auto.2100'K - 9100'K
  • Lens mount: 2.8mm Pinhole lens
  • MTBF: 80,2011,000 hours
  • Power source: DC12V(Tolerance: 6V-35V)
  • Operating Temp: -4° F~122° F ( -20° C~ + 50° C )
  • Storage Temp: -40° F~176° F ( -40° C~ + 80,2011,° C )
  • Water Proof: Ip67
  • Wide Angle: 130°
  • Input: 100mA
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 108X22 (Camera)

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTL400C
Auto Dimming No
Camera Sensor type CMOS
Back up camera type License Plate Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 170 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Chrome
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
