Boyo VTL420C License Plate Mount Bar Type Back Up Camera (Bar Type in Black)

Boyo VTL420C License Plate Mount Bar Type Back Up Camera (Bar Type in Black)

Boyo VTL420C License Plate Mount Bar Type Back Up Camera (Bar Type in Black)

More Views

Boyo
Free Shipping on orders $99+

Overall Rating 5 (Based on 1 reviews)

Boyo VTL420C Product Highlights

  • Bar style license plate mount back up camera
  • Black high quality finish
  • Vertical adjustment
  • High quality CMOS imager
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

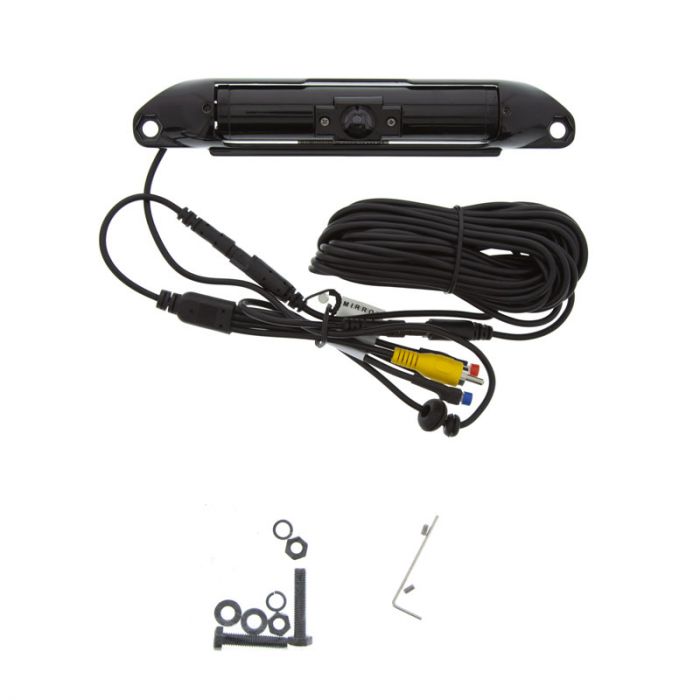

Unit includes: Camera, Cables and Mounting hardware

Boyo VTL420C Bar Type License Plate Camera (Bar Type in Black)
  • Highly sensitive 1/4" DSP Color CMOS
  • 380,2011, TVL Horizontal Resolution
  • Remarkable low Lux performance of 0.3 Lux at F2.0
  • 1.43mm lens 170 Degrees wide view angle
  • Waterproof(IP67) Reverse Image
  • 170º wide viewing angle
  • Adjustable up/down
  • Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
  • Beautiful design & anti-scratch coating
Specifications
  • Imager: 1/4" DSP Color CMOS
  • Effective Pixels: NTSC - 512(H) X 582(V)
  • Horizontal resolution: 380,2011, TV Lines
  • Total number of pixels: 270K
  • Min. Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50 to 1/1000 sec
  • White balance: Auto.2100'K - 9100'K
  • Lens mount: 2.8mm Pinhole lens
  • MTBF: 80,2011,000 hours
  • Power source: DC12V(Tolerance: 6V-35V)
  • Operating Temp: -4° F~122° F ( -20° C~ + 50° C )
  • Storage Temp: -40° F~176° F ( -40° C~ + 80,2011,° C )
  • Water Proof: Ip67
  • Wide Angle: 130°
  • Input: 100mA
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 108X22 (Camera)

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTL420C
Auto Dimming No
Camera Sensor type CMOS
Back up camera type License Plate Camera
License Plate Camera Type Bar style
Camera diameter 1/4 inch
Viewing Angle 170 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Trigger wire Yes
Auto on/off Yes
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No

Customer Reviews

NOT a wide angle camera
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Bought a backup camera from a parts store chain. It died after 3 months. Found these people on the web and they recommended this product. Installed it on my Nissan Pathfinder and I have been so happy. I use it to back under the trailer coupler when I hook up, and I can put the hitch ball within 1/2 an inch every time. I have been totally delighted with this product. (Posted on 6/7/2012)
