Boyo VTL420HD Bar-Type Metal License Plate Camera - Black finish

Boyo VTL420HD Bar-Type Metal License Plate Camera - Black finish

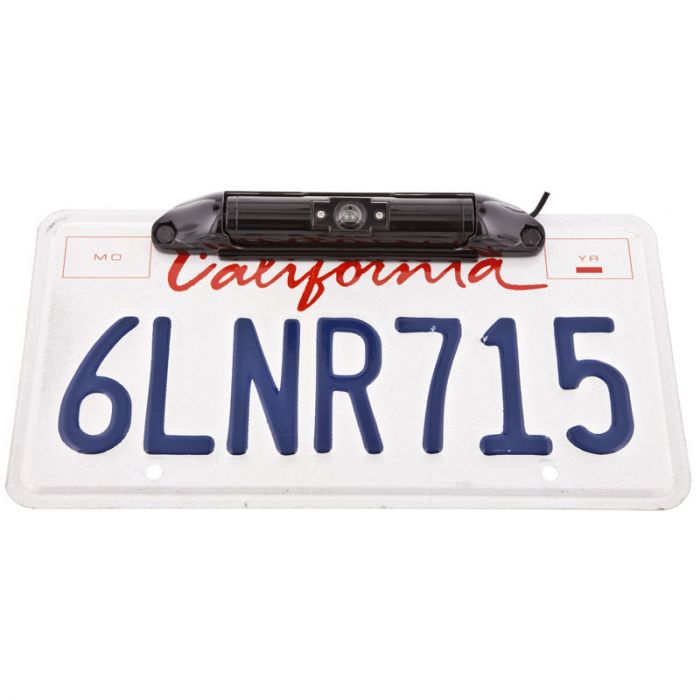

Boyo VTL420HD Bar-Type Metal License Plate Camera - Front view installed on plate

More Views

Item sku:VTL420HD
Boyo

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTL420HD Product Highlights

  • Bar style license plate mount back up camera
  • Black high quality finish
  • Vertical adjustment
  • High quality CCD imager
  • Push button selection for reverse image or non-reverse image
  • Push button selection for parking grid lines or no grid lines

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Camera, Cables and Mounting hardware

Boyo VTL420HD Bar-Type Metal License Plate Camera - Black finish features:
  • Bar style license plate back up camera
  • 170° wide angle viewing
  • Vertical angle is adjustable up & down
  • Super sensitive low light sensitivity
  • Push button selection for reverse image or non-reverse image
  • Push button selection for parking grid lines or no grid lines
  • 600 TV lines of resolution
  • High sensitivity 1/4" DSP HD color built-in CCD image sensor
  • Waterproof IP67 rated
  • Metal frame with black finish
  • Resolution: 640 (H) x 480 (V)
  • Minimum illumination: 0.3 Lux at F2.0
  • 18 foot cable
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50 to 1/1000 sec
  • White balance: Auto
  • Gain control: Auto
  • Power source: 7 Vdc - 24 Vdc
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Dimensions: 7-5/8" (W) x 1-1/4" (H)

Technical Specifications

Manufacturer Boyo
Part Number VTL420HD
Auto Dimming No
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type Bar style
Camera diameter 1/4 inch
Viewing Angle 170 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 24 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 794504974355
